Cov Hlau Stainless Flanged Npauj Npaim hluav taws xob piav qhia
Stainless hlau Flange Npauj Npaim Valve yog ua los ntawm 304/316 stainless hlau lossis fluorine-lined khoom. Nws tshawb xyuas qhov ntsuas hluav taws xob nruab nrab los ntawm Flange kev sib txuas thiab muaj cov yam ntxwv ntawm corrosion tsis kam, muaj kub ua hauj lwm thiab ntev lub neej. Nws cov qauv tsim muaj xws li:
Peb-seem qauv eccentric: tus npauj npaim phaj thiab txhim kho kev sib txhuam kom txo qis kev sib txhuam, uas yog tsim nyog rau kev sib txhuam, qhov siab siab thiab cov khoom siv kub siab.
Kaw lub zog: Lub Hard Foob Qauv Qauv Npauj Npaim hluav taws xob phaj yog welded nrog stainless hlau lossis nyuaj alloy, thiab qhov kub tsis kam ncav cuag 425 degree; Cov mos muag foob los ua fluororububer (FKM) lossis PTFE, uas muaj acid thiab alkali tsis kam.
Cov Hlau Stainless Flanged Npauj npaim li qub
|
Nominal siab |
PN6, PN10, PN16, PN25, X40, Chav Kawm Class150, Class300 |
|
Qhov loj |
DN50 rau DN4000 / 2 "{-160" |
|
Tsav |
Los ntawm txhais tes gearbox, cab iav, pneumatic, hydraulic, Fais, thiab lwm yam |
|
Kev sib txua |
Flange, vuam, wafer |
|
Qho so |
-29 degree rau 225 degree |
|
Nruab nrab |
Huab cua, dej, dej hiav txwv, dej phwj, roj, roj, thiab lwm yam |
Kev Ntsuas Cov Qauv thiab Cov Qauv Qhia Ntawv
| Cov tsis muaj / qauv | Cov ntau lawm / Cov yam ntxwv |
|---|---|
| Nominal Inch (DN) | Dn 50- dn500 (Txhawb Tsis Tsim Nyog Tsis-Txheem Customization) |
| Nominal siab(Pn) | Pn 10- pn25 (qee qhov teeb meem nyuaj ua kom zoo li xn40) |
| Siv tau kub | -20 degree ~ 450 degree ({{{}} degree ~ 150 degree (mos foob) |
| Tsav Hom | Los ntawm phau ntawv cab iav, pneumatic, hluav taws xob (tawg-pov thawj. |

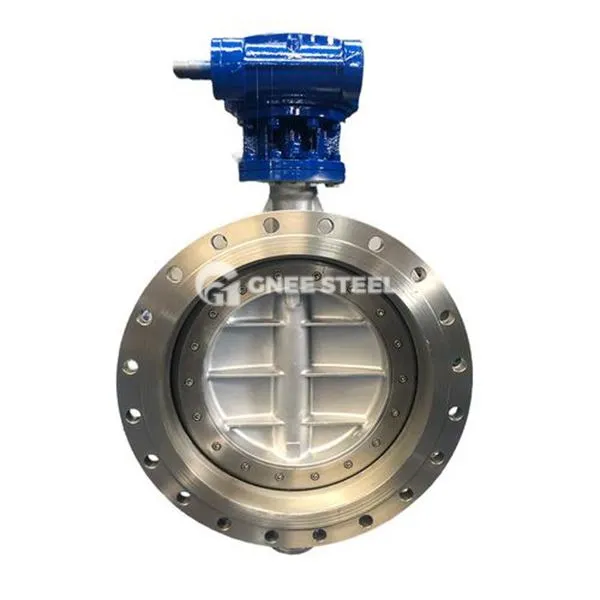

Dais Stainless Hlau Flanged Npauj Npaim Qub
Daim Ntawv Thov thiab Xaiv Cov Lus Qhia
Tshuaj Kev Lag Luam: Koj nyiam cov tshuaj fluorine-lined (xws li D341F46 series), uas tuaj yeem txhim kho cov kua qaub thiab alkali corrosion tsis los ntawm ntau dua 50%.
Cov zaub mov thiab cov khoom noj: Xaiv 316L stainless hlau polished npauj npaim li cas kom tau raws li cov qauv kev huv (ra tsawg dua lossis sib npaug}. 8μm).
Lub zog hluav taws xob: Chav dej kub yog nruab nrog D343H Series Zog Npauj Npaim li Qub, uas tuaj yeem tiv taus PD40 siab thiab muaj qhov xau xau ntawm Ansi V.
