Nrum Hlau Lugged Npauj Npaim cov lus piav qhia
Cam khwb cia hlau Lug Npauj Npaim Valve yog ua los ntawm grey cam khwb cia hlau (qt 450-10) thiab yog ntsia los ntawm cov kab flange txuas. Tus npauj npaim phaj tig tig 90 degree ncig lub valve axis kom ua tiav nruab nrab qhib thiab kaw lossis ntws los ntawm kev tswj hwm.
Cov qauv tseem ceeb nta muaj xws li:
Lug Tsim: Cov qhov sib tw hauv ob sab sib faib ua ke ntawm Wafeline Flarge Bolt, txhim kho kev txhim kho hluav taws xob valve, txhim kho kev ua haujlwm tau zoo thiab kev ruaj ntseg ruaj khov.
Sealing System:
Mos foob pob: EPDM / NBR roj hmab valve lub rooj, theem qis mus txog Ansi VI, haum rau cov khoom siv qis xws li dej thiab huab cua.
Lub Pob Tsuas: Npauj Npaim yog welded nrog stainless hlau lossis tungsten carbide, nrog kub tsis kam ntawm 425 degree, haum rau high-kub media muaj cov lus.

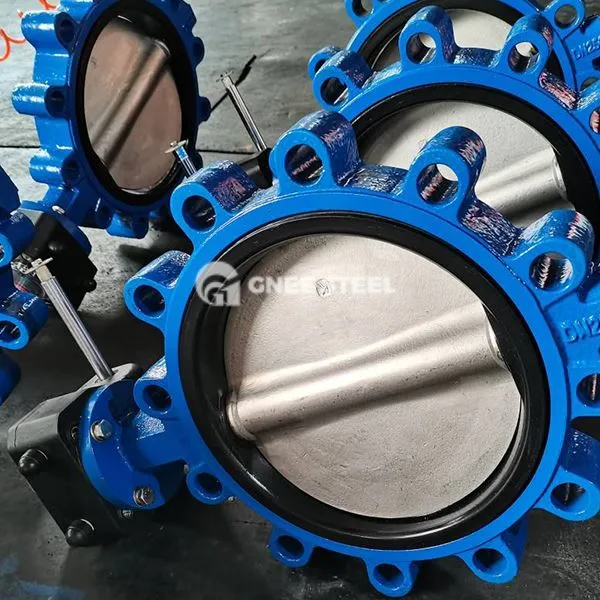

Nrum Hlau Lugged Npauj Npaim Li Qub
|
Yam |
Nrum Hlau Lug Hom Npauj Npaim Li Qub |
|||
|
Hwjchim |
Hluav taws xob actuator |
|||
|
Chaw nres nkoj loj |
2"~16" |
|||
|
Lub tsev |
Tus npauj npaim |
|||
|
Kev Sib Txuas Hom |
Dos |
|||
|
Khoom |
Cam Khwb Cia Hlau, Cam Khwb Cia Hlau |
|||
|
Disc Cov Khoom |
Stainless hlau |
|||
|
Chaw Ntau Lawm |
Henan, Suav |
|||
|
Kev lav |
1hears |
|||
|
Kev Sib Txuas Hom |
Lug lug, wafer |
|||
|
Kev khiav hauj lwm siab |
Ansi Chav 150, Chav Kawm 300 |
|||
|
Kev tswj hom |
On / off hom lossis hom kev cai |
|||
|
Fai fab hov ntau |
DC12 ~ 24V (± 10%), AC {{{v, 50 / 60Hz |
|||
Cov ntawv thov thiab cov txiaj ntsig
- Lub nroog Engineering: Ntws tswj cov dej hauv nroog dej thiab cov dej ntws tawm Network Network. DN ntau dua lossis sib npaug rau 300 tus qauv tau dhau los ua cov ntsiab lus vim tias tau kev co ntawm txoj kab sib txuas.
- Kev siv hluav taws xob: cua txias dej ncig hauv cov nroj tsuag tshuaj, roj hluavtaws qis dua hauv cov qauv hluav taws xob, cov qauv nyuaj-kaw tau tawm tsam party yaig.
- Cov xov hluav taws xob tiv thaiv hluav taws: ua raws li GB5135.6 Cov Qauv thiab tau raws li qhov xav tau ntawm kev qhib nrawm thiab kaw cov chav tua hluav taws.
Cov ntsiab lus zoo:
- Yooj yim Installation: Cov nyom flanges yog belang ncaj qha, txo lub sijhawm teeb tsa los ntawm 50% piv rau wafer-hom npauj npaim li qub.
- Tus txij nkawm tsawg: lub valve lub cev yog epoxy-tsuag (ra tsawg dua lossis sib npaug rau 3.2 μm), thiab corrosion resistance lub neej yog ntau tshaj 15 xyoos.
Nrum Hlau Lugged Npauj Npaim Li Qub
Xaiv cov lus pom zoo:
Kev tiv thaiv dej / tua hluav taws: DN {{{}} dn300 mos}) yog tus nqi qis thiab ua tiav qib kawm rau qib kawm rau kev sib khi ua tau zoo.
Tshuaj Nruab Nrab Nruab Nrab muaj cov khoom: Haum rau cov qauv kaw nyuaj (xws li d343h {1} welded stainless hlau, coj kev tiv thaiv nce ntxiv los ntawm 50%.
