Lub sealing seem ntawm tus npauj npaim phaj ntawm carbon steel triple eccentric npauj npaim valve yog hloov los ntawm puag ncig mus rau oval, yog li paub qhov asymmetry ntawm cov duab ntawm lub sealing nto. Ib sab yog sib npaug mus rau qhov nruab nrab ntawm lub cev, thaum lwm sab yog inclined rau qhov nruab nrab ntawm lub cev. Qhov kev ua kom zoo ntawm cov qauv no ua rau peb lub eccentric npauj npaim valve kom tswj tau qhov kev sib khi zoo ntawm qhov kub thiab txias thiab tib lub sijhawm ua tiav qhov yuav tsum tau ntawm xoom to.
Khoom Specification
Loj: 1/2 "~ 60"
Siab: los ntawm 150LB ~ 1500LB
Ua haujlwm kub: los ntawm -50 Deg. C ~ 550 Deg. C
Tsim & Tsim raws li: API 609B / AWWA C504 / EN 593 / BS 5155 / DIN 3354
Lub ntsej muag rau ntsej muag raws li ISO 5752 / EN 558 / BS 5155 / DIN 3202 / ASME B16.10
Flange Dimensions Raws li: ASME B16.5 / ASME B16.47 / ASME B16.1 / AWWA C207 / ISO 7005 / EN 1092
Siab & Kub raws li: ASME B16.34
Test & Inspection raws li: API 598 / ISO 5208
Kev soj ntsuam pom raws li : MSS SP-55
Kos npe raws li : MSS SP -25

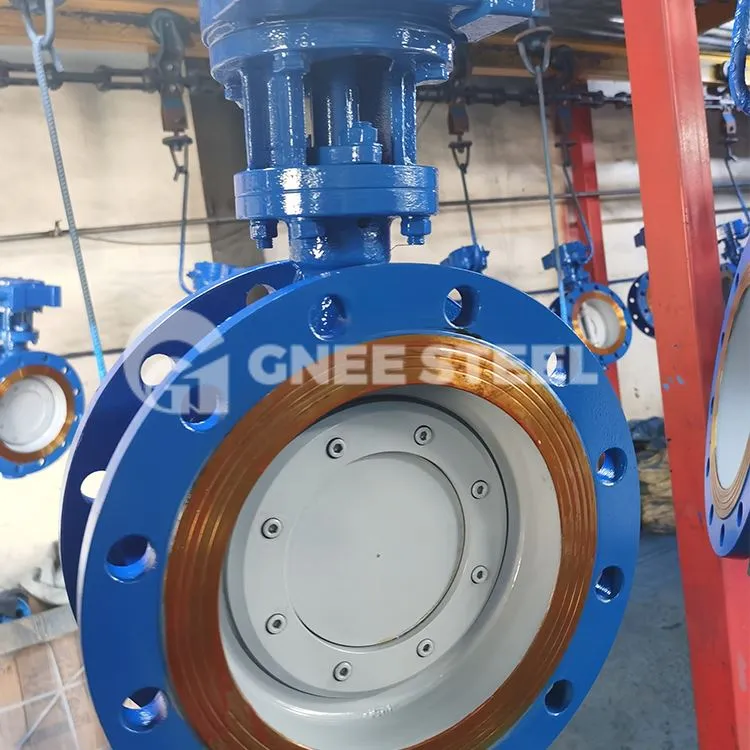

Carbon Steel Triple Eccentric Npauj Npaim Valve
FAQ
Q: Koj cov khoom lag luam yog dab tsi?
A: Peb tsim cov npauj npaim li qub, rooj vag li qub, kos li qub, pob li qub thiab lwm yam khoom siv kav dej.
Q: Cov qauv kev tswj hwm yog dab tsi?
A: ISO / ANSI / DIN / JIS / EN / GOST / AS tus qauv.
Q: Koj cov khoom tseem ceeb yog dab tsi?
A: Centerline Npauj Npaim li qub, Eccentric Npauj Npaim li qub, Resilient Seated Gate Valves mus txog DN3200.
Q: Koj lub sijhawm ua haujlwm yog dab tsi?
A: Feem ntau nws yuav siv sijhawm 10 hnub yog tias peb muaj Tshuag, thiab 35 hnub yog tias peb tsis muaj Tshuag, nyob ntawm seb muaj pes tsawg.
Q: Koj puas muab cov qauv?
A: Yog, peb tuaj yeem muab cov qauv dawb, tab sis peb tsis them tus nqi thauj khoom.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: <=10000 USD, 100% prepayment. Payment >= 10000 USD, 30% T / T ua ntej, tshuav nyiaj li cas ua ntej xa khoom.
