Cam khwb cia hlau wafer npauj npaim li piav qhia
Cam khwb cia hlau wafel valve yog ib tug npauj npaim valve hom nrog hlau hlau (qt 450-10 / ggx40) raws li lub valve lub cev cov khoom thiab kev sib txuas ntawm valve. Lub Valve Qwj Ua Tus Npauj Npaim Phaj tig 90 degree kom ua tiav kev qhib nrawm thiab kev ntws los yog ntws cov kev cai ntawm pipeline tawm. Nws cov tub ntxhais lub zog muaj xws li:
Nyem qhib thiab kaw: 90 degree kev sib hloov tuaj yeem ua tiav tag nrho qhib kev ua yeeb yam, nrog kev ua haujlwm me me, tsim nyog rau kev qhib nquag thiab ua haujlwm nquag qhib thiab kaw cov scenarios.
Kev txhim khu kev qha se: EPDM lossis NRDM roj hmab valve yog siv, kev sib khi ntawm Bidirectional sequing tuaj yeem ua tiav xoom kev nce qib ANSI VI qib.
Cov txheej txheem tsim qauv thiab qauv
Cheebtsam tseem ceeb:
Lub cev lub cev: Zas cov khoom siv hlau (siab tiv thaiv 1. {{}}}}}}. 6MPA)
Npauj npaim phaj: Ua los ntawm cov hlau duc lossis camhlen steel, pinless tsim kev zam thiab qee tus qauv yog txau nrog tungsten carbide nyob rau saum npoo los txhim kho kev coj tsis kam.
Sealing System:
Dav dav-ntug lub rooj zaum: EPDM Roj Hmab Valve lub rooj muaj 50% roj hmab, qhov chaw sib ntaus nrog cov raj xa hluav taws xob yog loj, thiab lub sijhawm ntev ruaj ruaj ruaj khov yog siab.
Lwj Foob: stainless hlau valve qia (304/316) nrog PTFE ntim thiab o-ntiv nplhaib kom tiv thaiv kev yoo.
Tsav hom:
Kev teeb tsa yooj yim: kov lossis Turbine Drive, kev ua haujlwm me me thiab txhawb phau ntawv kev hloov kho sai.
Kev teeb tsa txuas ntxiv: nws tuaj yeem hloov kho cov neeg pneumatic (xws li D671J series) lossis cov khoom siv hluav taws xob kom ua tiav cov chaw taws teeb tswj.

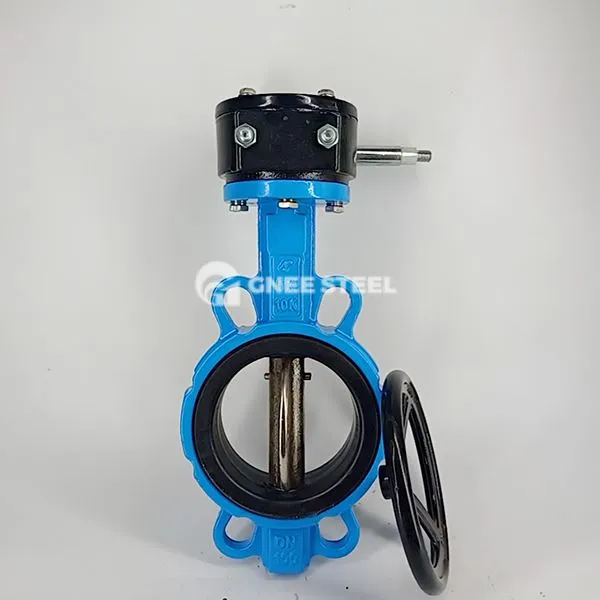

Cam khwb cia hlau wafer npauj npaim li qub
|
Lub npe ntawm cov khoom
|
Cam khwb cia hlau wafer npauj npaim li qub |
|
Qhov loj
|
Dn 50- dn300
|
|
Lub cev
|
Cov Hlau Hlau
|
|
Nyem
|
Pn10 / 16
|
|
Temp
|
-20} ~ 120 degree
|
|
Yooj Yim
|
Dej, nruab nrab kua kua, thiab lwm yam.
|
|
Daim ntawv thov
|
Kev tsim kho hauv nroog, hluav taws xob txuag hluav taws xob, hluav taws xob hluav taws xob, dej hluav taws xob thiab dej paug, kev kho dej, thiab lwm yam.
|
|
Hwjchim
|
Kov, Turbine Box, Pneumatic Actuator, Ecectric Actuator
|
|
Kev tsim ua
|
GB / T12238
|
|
Ntsej muag rau lub ntsej muag
|
GB / T12221
|
|
Saum flange
|
ISO 5211
|
|
Siab xeem
|
GB / T 13927
|
|
Chaw nres nkoj
|
Tianjingang, Shanghaigang, lossis sib tham, thiab lwm yam.
|
|
Xa xov
|
Los ntawm huab cua, hiav txwv, qhia, hauv av, thiab lwm yam.
|
Cam khwb cia hlau wafer npauj npaim li qub
Cov Lus Taw Qhia Xaiv
Hom Media:
Cov Media Media: Xaiv cov roj hmab-lined npauj npaim valve (xws li D671J {2}} Lub rooj valve siv PTFE lossis fluororubber kom txhim kho corrosion tsis kam.
Cov Khoom Siv Hluav Taws Kub Kub: Lub valve cov khoom siv tau txhim kho kom cam khwb cia hlau (WCB), thiab cov roj hmab sealing yog hloov nrog cov roj hmab kub-tiv taus 150 degree).
Qib siab:
Tsawg-siab cov xwm txheej (tsawg dua los yog sib npaug rau 1.6MPA): Txheem coord lub cev valve tuaj yeem ua kom tau raws li cov cai.
High-Inc-siab Scenario (> 1.6MPA): Nws raug pom zoo kom siv cam khwb cia store valve (xws li q41f series) lossis tuab flanged tsim
