Hard seal npauj npaim valve, tseem hu ua nrov plig plawg valve, yog ib qho yooj yim qauv ntawm lub regulating valve, tab sis kuj yuav siv tau rau tsawg-pressure pipeline media switching tswj. Hard seal npauj npaim valve nyob rau hauv lub raj xa dej mas plays lub luag hauj lwm ntawm kev txiav tawm thiab throttling. Npauj npaim valve qhib thiab kaw qhov chaw yog disc-shaped npauj npaim phaj, nyob rau hauv lub valve lub cev nyob ib ncig ntawm nws tus kheej axis kev sib hloov, thiaj li mus cuag lub hom phiaj ntawm qhib thiab kaw los yog kev cai. Hard seal npauj npaim valve yog tsim rau lub cub tawg, roj, ncu, nkev, roj hauv nroog, cua kub thiab txias, tshuaj smelting engineering thiab hluav taws xob tsim hluav taws xob ib puag ncig tiv thaiv kev thauj mus los ntawm ntau yam corrosive, tsis-corrosive kua media pipeline, siv los tswj thiab txiav tawm qhov ntws ntawm cov xov xwm.
Hlau nyuaj foob npauj npaim valve Specification
Qhov Loj Loj: 2"-80"
Kev Ntsuas Siab: PN10 ~ PN64, CLASS150 ~ 600
Khoom siv: WCB, CF8, CF8M, CF3, CF3M
Kev khiav hauj lwm: Handwheel, Pneumatic, Electric
Qhov ntsuas kub: -29 degree ~ 425 degree

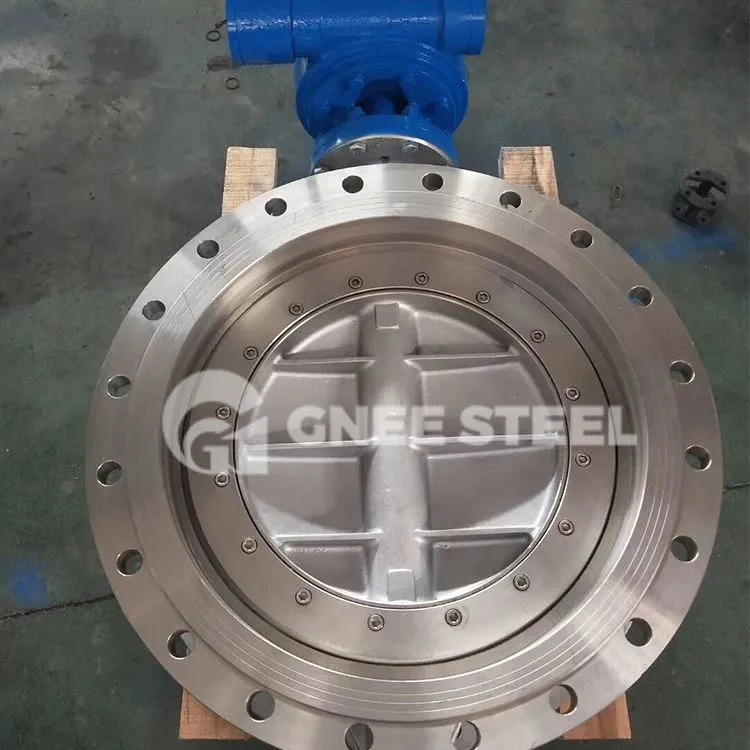

Hard Foob Npauj Npaim Valve
Hard seal npauj npaim valve rau kev tiv thaiv
1. Lub welded bolts ntawm lub valve disk yuav tsum tsis txhob ntev dhau, txwv tsis pub lub bolts yuav ntev dhau lawm thiab tiv thaiv lub valve lub cev ntws txoj kev, ua rau lub sealing nto yog "hollow", tsis tuaj yeem ua lub luag haujlwm ntawm sealing; Kev sib dhos yuav tsum tau them sai sai rau kev kuaj xyuas thiab kho qhov qhib ntawm tus pas lo lo ntxhuav, kom ntseeg tau tias qhov chaw sib khi tuaj yeem ua kom nruj nruj.
2. Xaiv qhov kev hloov kho kom haum, lub thickness ntawm liner yuav tsum qis dua los yog sib npaug ntawm qhov siab ntawm lub valve disc sealing nto kauj ruam, kom cov mos mos gasket thiab valve disc sealing nto ze haum, nyob rau hauv tib lub dav hlau.
3. Txhawm rau tiv thaiv cov txiv ntoo compression los ntawm kev poob, cov txiv ntoo yuav tsum tau nruj me ntsis tom qab kev kho kom zoo los tiv thaiv loosening.
4. Yuav tsum xav txog kev siv cov kua dej tawm, xaiv cov gasket muag muag uas haum rau cov kev xav tau ntawm cov xov xwm, kom tsis txhob muaj kev tawm tsam los yog kub deformation thiab lwm yam cuam tshuam rau kev siv.
5. Thaum lub rooj zaum valve sealing nto puas yog qhov hnyav dua, lub rooj zaum valve tuaj yeem raug muab pov tseg, cov spool tuaj yeem txhim kho txuas ntxiv nrog tib cov lus qhia ntawm lub rooj zaum valve txhawb kev siv.
6. Kev hloov kho ntawm lub valve yuav tsum raug cim kom zoo, kom tsis txhob muaj kev kub ntxhov qhib thiab kaw, thiaj li tsis cuam tshuam rau lub neej kev pab cuam ntawm lub gasket.
