Cov yam ntxwv ntawm cov concentric flange npauj npaim li qub yog qhov qia axis, npauj npaim phaj chaw thiab lub cev lub cev qhov chaw nyob hauv tib txoj haujlwm. Feem ntau, nyob rau hauv txoj cai, siv tau lub concentric npauj npaim valve yuav sim siv concentric npauj npaim valve. Vim hais tias qhov concentric npauj npaim valve tsis yog qhov yuav tsum tau muaj rau kev sib khi ua ke los yog ua haujlwm, nws yog ib qho khoom siv. Yuav kom kov yeej cov extrusion, scraping, kom ntseeg tau tias sealing kev ua tau zoo, concentric npauj npaim valve lub rooj siv roj hmab los yog PTFE thiab lwm yam ntaub ntawv elastic, yog ib tug mos mos npauj npaim valve. Qhov no ua rau concentric npauj npaim valve hauv kev siv cov kev txwv kub.
Concentric Flanged Npauj Npaim Valve Specification
| Khoom siv | Hlau hlau |
| Tsim | API 609-2004 |
| Lub cev | ASTM A 536 65-45-12 |
| Disc | ASTM A 536 65-45-12 |
| Qe | SS420/316 |
| Rooj | EPDM, NBR, FRM, PTFE |
| Pin | SS304/316 |
| Txiv ntseej | Stainless hlau |
| Chav kawm | PN16/NP10 |
| Ntsia hlau | SIB 304 |
| Retainer | Nylon rau DN 50-DN300, SS304 rau DN 350-DN1200 |
| Cov kabmob | PTFE nrog Graphite |
| Kub | -20 degree rau +140 degree |
| Kev ntsuas siab | PIB 16 |
| Loj | DN 40 - DN1200 |
| Tsav versions | Tes lever, iav kem, pneumatic actuator, hluav taws xob actuator |

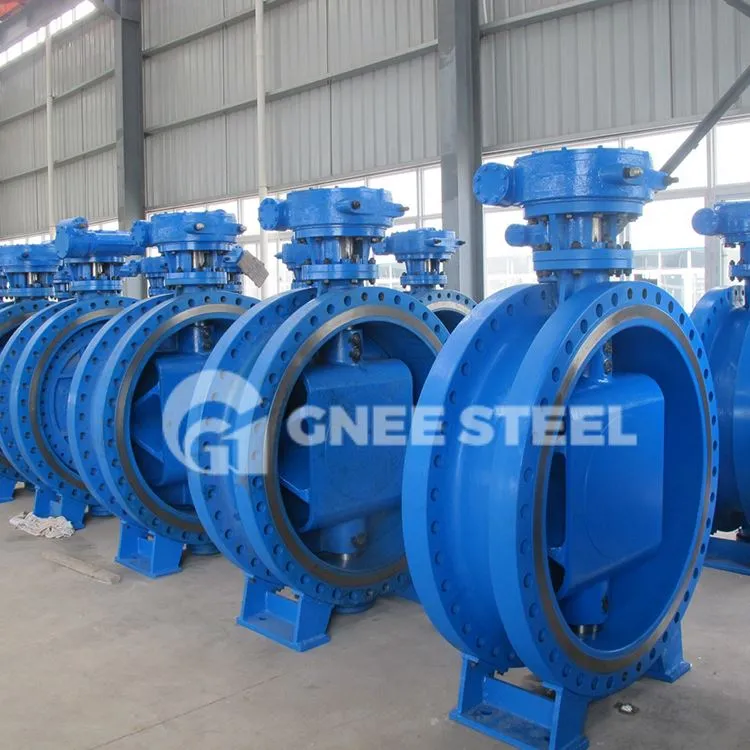

Concentric Flanged Npauj Npaim Valve
Concentric Flanged Npauj Npaim Valve cov ntaub ntawv teev npe
| Ib feem | Khoom siv | EN Spec. |
| Lub cev | Hlau Hlau | TS EN JS 1050 |
| Disc | Hlau Hlau | TS EN JS 1050 |
| Bronze | TS EN 1982 CC491K | |
| Stainless hlau | BS 970 304 C15 | |
| Stainless hlau | BS 970 316 C16 | |
| Ncej | Stainless hlau | BS 970 410 S21 |
| Stainless hlau | BS 970 431 S29 | |
| Rooj Ring | EPDM / NBR / Viton / PTFE | |
| O-Ring | EPDM/NBR | |
| Bushing | Bronze | TS EN 1982 CC491K |
