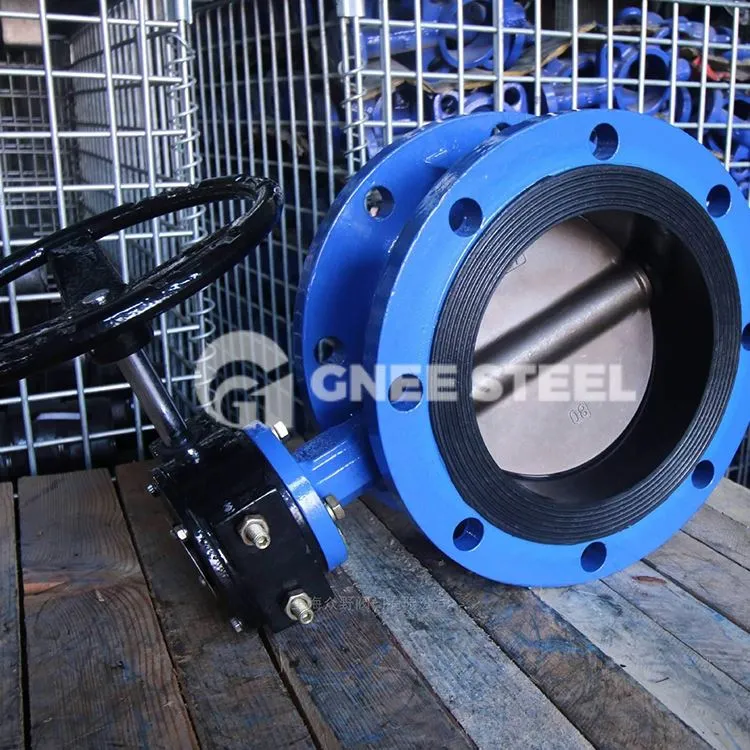

Npauj npaim phaj ntawm flange npauj npaim valve yog ntsia rau hauv txoj kab uas hla ntawm cov yeeb nkab. Nyob rau hauv lub cylindrical channel ntawm npauj npaim valve lub cev, lub disc-zoo li tus npauj npaim phaj rotates nyob ib ncig ntawm lub axis, thiab lub kaum sab xis tig ntawm 0 degree thiab 90 degree. Thaum nws tig mus rau 90 degree, lub valve qhib tag nrho. Thaum lub flange npauj npaim valve nyob rau hauv lub siab qhib txoj hauj lwm, lub thickness ntawm tus npauj npaim phaj yog qhov tsis kam thaum lub nruab nrab ntws los ntawm lub valve lub cev, yog li lub siab poob generated los ntawm lub valve yog heev me me, yog li nws muaj zoo txaus tswj cov yam ntxwv. Npauj npaim li qub muaj ob hom kev sib khi: elastic foob thiab hlau foob. Rau elastic sealing li qub, lub nplhaib sealing tuaj yeem muab tso rau hauv lub valve lub cev lossis txuas mus rau qhov chaw ntawm lub phaj npauj npaim.
| Txuj | ISO 5752, BS 5155, API 609, MSS-SP -68, ASME B16.10, ASME B16.5, DIN 3202 |
| Khoom siv | Carbon Steel, Stainless Hlau, Aluminium Bronze, Monel, Hastelloy, Titanium, Duplex, Super Duplex thiab lwm yam tshwj xeeb. |
| Kev ntsuas siab | ANSI 150 # rau ANSI 1500 # |
| Qhov ntau thiab tsawg | 2 "mus rau 140" - 50mm txog 3500mm (Qhov ntau thiab tsawg yog thov) |
| xaiv lub rooj zaum rings | Resilient RPTFE; Hlau zaum INCONEL (Hluav taws nyab xeeb ntawm daim ntawv thov) |
| Kev ua haujlwm | Phau ntawv, Pneumatic, Hluav taws xob, Hydraulic (Counterweight) & Electro-hydraulic |
| Xaus Kev Sib Txuas | RF, RTJ |
Cov yam ntxwv tseem ceeb ntawm flange npauj npaim valve yog:
1. Me me thiab hnav, yooj yim rau disassemble thiab kho, thiab tuaj yeem ntsia tau rau txhua qhov chaw.
2. Cov qauv yog yooj yim thiab compact, kev khiav hauj lwm torque yog me me, thiab 90 degree rotation qhib sai.
3. Cov yam ntxwv ntws zoo li linear thiab kev hloov kho tau zoo.
4. Kev sib txuas ntawm lub phaj npauj npaim thiab lub valve qia txais cov qauv pinless, uas kov yeej cov ntsiab lus sab hauv to.
5. Lub voj voog sab nrauv ntawm lub phaj npauj npaim txais cov duab kheej kheej, uas txhim kho kev sib khi ua haujlwm thiab txuas ntxiv lub neej kev pabcuam ntawm lub valve. Nws tuaj yeem tuav xoom xoom rau ntau dua 50, 000 lub sijhawm qhib thiab kaw hauv qab siab.
6. Cov ntsaws ruaj ruaj yog hloov tau thiab lub sealing yog txhim khu kev qha thiab ua tiav ob txoj kev sealing.
7. Lub phaj npauj npaim tuaj yeem txau-coated raws li cov neeg siv khoom xav tau, xws li nylon lossis polytetrafluoroethylene.
8. Lub valve tuaj yeem tsim nrog flange kev twb kev txuas thiab wafer txuas.
9. Kev tsav tsheb tuaj yeem yog phau ntawv, hluav taws xob lossis pneumatic.
Flange npauj npaim li qub yog tsim rau kev lag luam xws li dej thiab dej ntws, dej phwj tuaj, khoom noj, cua sov, roj, nkoj, hydropower, metallurgy, lub zog siv hluav taws xob, thiab textiles nrog kub tsawg dua lossis sib npaug li 120 degree lossis tsawg dua lossis sib npaug li 150 degree. thiab nominal pressures Tsawg dua los yog sib npaug rau 1.6MPa. Lawv yog tshwj xeeb tshaj yog haum rau ob-txoj kev sealing thiab nyob rau hauv lub sij hawm uas lub valve lub cev yog nquag mus xeb, nws yog siv raws li ib tug txaus regulating thiab intercepting nruab nrab.
Npauj Npaim Valve Flange Hom
