Cryogenic ntiaj teb li qub tsuas yog tsim rau kev qhib thiab kaw tag nrho; tsis muaj kev cai los yog throttling raug tso cai. Qhov nruab nrab ntws nkag mus rau hauv lub valve kab noj hniav los ntawm saum toj no lub valve nrov plig plawg. Nyob rau hauv qhov kev txiav txim ntawm nruab nrab siab, lub zog yuav tsum tau kaw lub valve yog me me, thaum lub zog yuav tsum tau qhib lub valve yog loj, tso cai rau txo nyob rau hauv txoj kab uas hla ntawm lub valve qia. Cov ntawv thov ntawm lub ntiaj teb li qub muaj xws li roj liquefaction, kua oxygen, kua hydrocarbon, liquefied natural gas, kua nitrogen, thiab kua nitrogen systems.
Cryogenic ntiaj teb li qub Specification
| Dimension | DN10 rau DN80 |
| Chav kawm siab | PN10 rau PN250, 150Lbs txog 1500Lbs raws li DN |
| Kev sib txuas | Vuam xaus (BW, SW), tshwj xeeb kev sib txuas ... |
| Lub cev zoo | Ncaj, kaum sab xis, offset inlet / qhov hluav taws xob valve, 3- txoj kev bypass valve, Y-hom |
| Hom Bonnet | Luv, txheem extension (H=450mm), non standard extension, lwm yam ... |
| Stem sealing system | Ntim O'rings cov thawv ntim khoom, nrog lub tshuab sealing, nrog cov ntshiab lossis puv PTFE rafters, txhawb nqa cov khoom ntim (O'rings + packing) |
| Cov khoom sib cuag nrog cov kua | Stainless hlau 1.4404, 1.4435, 1.4429, 1.4571 thiab 1.4306, qis ferrite tus nqi (qis dua 5% ua ntej vuam) |
| Flow nta | Exponential, mixed exponential, linear, parabolic, TOR, lwm yam ... |
| Tus actuator | Phau ntawv, pneumatic (ib zaug lossis ob zaug ua haujlwm), hluav taws xob |

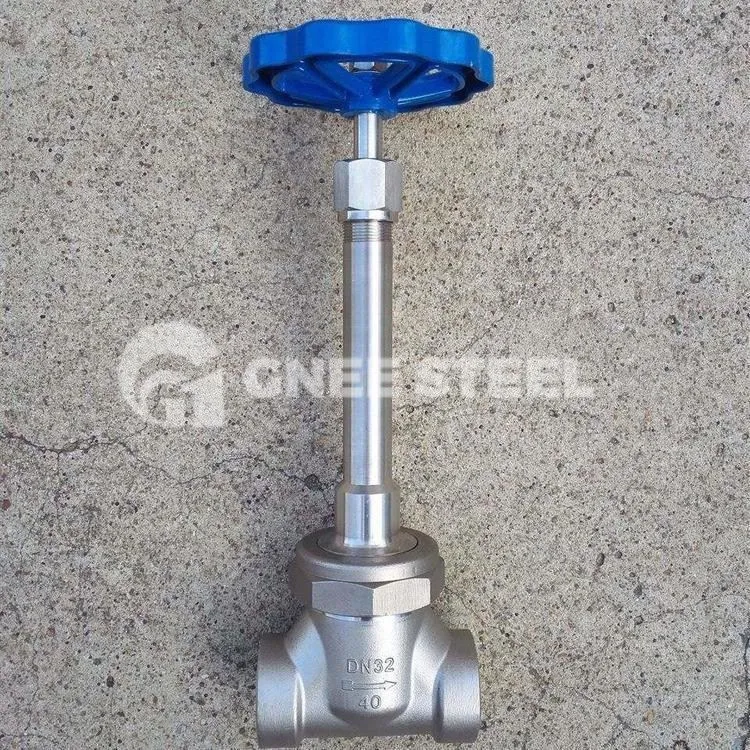

Cryogenic Globe Valve
FAQ
Q: Lub sijhawm khoom xa tuaj yog dab tsi?
A: Peb yuav nkoj hauv 7 hnub yog tias cov khoom muaj nyob hauv Tshuag. Txwv tsis pub, lub sijhawm khoom xa tuaj nyob ntawm qhov ntau ntawm koj qhov kev txiav txim.
Q: Txoj kev them nyiaj yog dab tsi?
A: Rau cov nyiaj tsawg dua lossis sib npaug rau 5000 USD, 100% them ua ntej yuav tsum tau ua. Rau cov nyiaj ntau dua lossis sib npaug rau 5000 USD, yuav tsum tau them 30% ua ntej, nrog rau qhov nyiaj tshuav them ua ntej xa khoom.
Q: Koj txoj cai qauv yog dab tsi?
A: Peb muab cov qauv dawb rau ib tus neeg cov khoom. Thov sib tham nrog peb pab neeg muag khoom rau cov cai tshwj xeeb.
Q: Koj puas muab kev pabcuam customized?
A: Yog, peb ua.
Cim npe nrov: Tuam Tshoj cryogenic ntiaj teb li qub manufacturers, lwm tus neeg, Hoobkas
