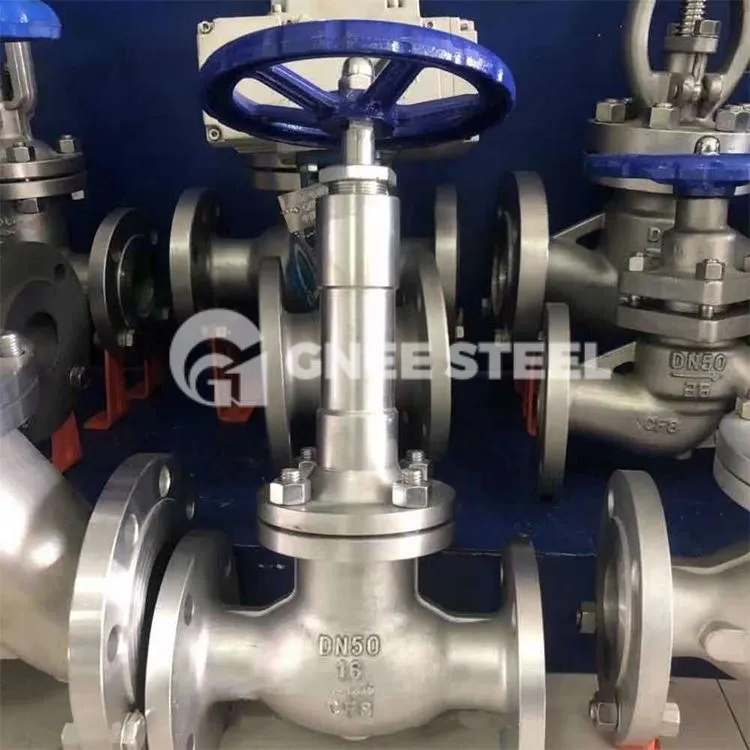

Cryogenic ntiaj teb valve feem ntau yog hais txog kev ua haujlwm kub hauv qab -110 degree valve, dav siv hauv cov roj liquefied natural gas, liquefied petroleum gas thiab lwm yam kev lag luam cryogenic.

Design Standard:

Qauv: BS 1873, ASME B16.34

Lub ntsej muag rau ntsej muag: ASME B 16.10, EN558, (DIN3202)

Flange kawg: ASME B 16.5, (DIN2501)

Butt welding xaus: ASME B 16.25

Kev soj ntsuam thiab kuaj: API 598.

Hom Kev Tshuaj Xyuas: Handwheel, Iav, Hluav Taws Xob, Phau Ntawv, Pneumatic, Hydraulic

PN	10 - 40
DN	15 - 150
NPS	1/2" - 6"
Chav kawm	150 - 300
Kev ntsuas kub	-260 degree mus rau +400 degree
Cov qauv ntawm lub cev	Ncaj qauv lub cev Y- qauv Lub cev qauv qauv
Basic Shell cov ntaub ntawv	Stainless hlau Aluminium lub cev
Kev sib txuas	Flanged kawg Butt welding xaus Qhov (socket) welding xaus Xov xaus Lwm yam kev xav tau
Kev Ua Haujlwm & Kev Xaiv	Handwheel, Chainwheel Pneumatic tus neeg teb xov tooj, iav piston actuator, Pneumatic diaphragm actuator Hluav taws xob actuator txias-box xaiv
Daim ntawv thov	Rau kev siv cryogenic eg oxygen, nitrogen thiab cov kua zoo sib xws, cov pa roj thiab vapors thiab qis heev kev pabcuam kub, rau txias lub thawv installation
Kev pom zoo	PED (CE) / ASME Leakrate A Hluav taws kub nyab xeeb TÜV

Cryogenic stainless hlau ntiaj teb valve tsim qauv, raws li cov kev cai ntawm kev siv, tus tsim ntawm cryogenic stainless hlau ntiaj teb valve muaj cov hauv qab no:

Lub valve yuav tsum muaj peev xwm ua haujlwm ntev ntev hauv qhov nruab nrab cryogenic thiab qhov ntsuas kub nyob ib puag ncig.
Lub valve yuav tsum tsis txhob dhau los ua qhov tseem ceeb ntawm cov cua sov ntawm lub tshuab cryogenic. Qhov no yog vim hais tias cov dej ntws ntawm cov cua sov ntxiv rau txo cov thermal efficiency, xws li inflow ntawm ntau dhau, tab sis kuj ua rau cov kua dej hauv cov evaporation sai, ua rau lub siab txawv txav, ua rau muaj kev phom sij.
Cov xov xwm kub qis yuav tsum tsis txhob muaj kev phom sij rau kev ua haujlwm ntawm tes thiab kev ntim khoom sealing.
Ncaj nraim rau kev sib cuag nrog cov xov xwm tsis tshua muaj kub, lub valve sib dhos yuav tsum yog cov khoom tawg-pov thawj thiab hluav taws-resistant qauv.5, lub valve sib dhos ua haujlwm ntawm qhov kub thiab txias tsis tuaj yeem lubricated, yog li nws yog ib qho tsim nyog yuav tsum tau ua cov qauv ntsuas kom tsis txhob muaj kev sib txhuam. puas.
