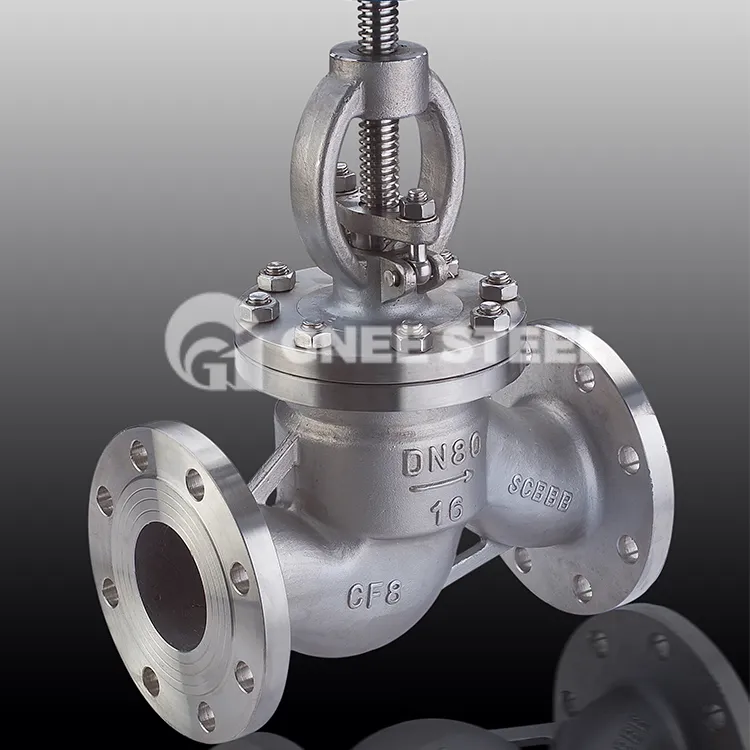

Khoom Description
Cov xov xwm siv tau rau cam khwb cia hlau nres li qub yog: dej, roj, chav, acidic media, thiab lwm yam. Hom kev ua haujlwm muaj xws li: phau ntawv, iav kis, hluav taws xob, pneumatic, thiab lwm yam.
Cam khwb cia hlau nres li qub feem ntau yog siv rau hauv daim ntawv thov xws li cua sov, dej faib thiab dej nrog qhov tsawg kawg nkaus thiab siab tshaj qhov kub ntawm -10 degree thiab +120 degree . Hom cam khwb cia hlau ntiaj teb no tuaj yeem siv rau hauv kev lag luam thiab kev lag luam. Cov kev pabcuam ib txwm muaj xws li dej kub thiab dej txias, HVAC, thiab lwm yam kev pabcuam hluav taws xob.
Specification
|
Loj |
DN 50-DN300 |
|
Siab |
10bar / 16bar / 200psi |
|
Txuj |
BS EN13789 (BS 5152) / MSS SP -85 / DIN3356 |
|
Ntsej muag ntsej muag txheem |
DIN3202 F1/EN 558-1 Series1 |
|
Flange kev twb kev txuas |
EN 1092-2 PN10/PN16 |
|
Valve kawg |
Flanged kawg / welded kawg / threaded |
|
Haum nruab nrab |
Dej, Roj, Roj, thiab lwm yam. |
|
Haum kub |
-30 ~ 100 degree |
Globe Valve Khoom Table
|
Tsis muaj. |
Lub Npe |
Khoom siv |
Txuj |
|
1 |
Lub cev |
Ductile lron los yog Grey Cast lron |
SIB 1452 |
|
2 |
Lub Cev Lub Cev Ring |
Bronze los yog tooj dag |
- |
|
3 |
Disc |
Stainless hlau |
ss420 ua |
|
4 |
Bolt |
Carbon Steel |
A3 |
|
5 |
Hlau Pob |
Stainless hlau |
ss420 ua |
|
6 |
Qe |
Stainless hlau |
ss420 ua |
|
7 |
Gasket |
NBR |
SIB 2494 |
|
8 |
Bonnet Bolt |
Carbon Steel |
A3 |
|
9 |
Ntim |
Graphite |
- |
|
10 |
caj pas |
Ductile lron |
TIAB SA 2789 |
|
11 |
Stud |
Carbon Steel |
A3 |
|
12 |
Txiv ntseej |
Carbon Steel |
A3 |
|
13 |
Bonnet |
Ductile lron los yog Grey Cast lron |
SIB 1452 |
|
14 |
Stem Txiv Ntoo |
tooj dag |
- |
|
15 |
Bolt |
Carbon Steel |
A3 |
|
16 |
Handwheel |
Carbon Steel |
A3 |
|
17 |
Lub tshuab ntxhua khaub ncaws |
Carbon Steel |
A3 |
|
18 |
Handwheel Bolt |
Carbon Steel |
A3 |
Cam khwb cia hlau Globe Valve Size Daim duab
|
DN |
D |
D1 |
D2 |
L |
b |
f |
z-φd |
H |
|
15 |
95 |
65 |
46 |
108 |
14 |
2 |
4-14 |
204 |
|
20 |
105 |
75 |
56 |
117 |
16 |
2 |
4-14 |
209 |
|
25 |
115 |
85 |
65 |
127 |
16 |
3 |
4-14 |
218 |
|
32 |
140 |
100 |
76 |
140 |
18 |
3 |
4-19 |
239 |
|
40 |
150 |
110 |
84 |
165 |
18 |
3 |
4-19 |
248 |
|
Qhov loj ntawm DN50 txog DN300 yog muaj |
||||||||
Kev ceev faj rau kev siv cam khwb cia hlau nres valve
1. Lub nres valve ua los ntawm tes thiab kov tuaj yeem ntsia tau ntawm txhua txoj haujlwm hauv cov kav dej. cov
2. Lub handwheel, kov thiab kis tau tus mob mechanism tsis pub siv rau nqa.
3. Kev khiav dej num ntawm qhov nruab nrab yuav tsum ua raws li cov kev taw qhia ntawm lub xub qhia ntawm lub valve lub cev.
