Qhov qhib thiab kaw qhov chaw ntawm lub ntiaj teb valve yog ntsaws-puab discs, nrog lub tiaj los yog conical sealing nto, thiab lub disc txav linearly raws cov kab nruab nrab ntawm cov kua. Kev txav ntawm lub qia tuaj yeem yog hom lifting qws (lub qia valve nce thiab ntog, thiab tes log tsis sawv thiab poob), los yog nqa thiab tig pas nrig hom (lub tes log thiab lub valve qia tig thiab nce. ua ke, thiab cov txiv ntoo yog teem rau ntawm lub cev valve). Lub qhov hluav taws xob thiab qhov hluav taws xob ntawm qhov nruab nrab tsis nyob hauv tib qho kev taw qhia, tab sis ntawm lub kaum sab xis 90 degree, uas yuav ua rau muaj kev poob siab. Qhov zoo tshaj plaws yog tias nws tuaj yeem ntsia tau rau ntawm qhov khoov ntawm cov kav dej, uas txuag lub luj tshib thiab yooj yim rau kev ua haujlwm.
Lub kaum ntse ntse hom Globe Valves Specification
| Qhov Loj | Khoom siv lub cev |
| 1/2"{2}}"(15mm{4}}mm) | Carbon Steel, Stainless Hlau, Nickel Aluminium Bronze, hlau alloy, thiab lwm yam |
| Qhov kub thiab txias | Cov khoom siv qia |
| -196 rau 500 degree | Stainless hlau |
| Kev ntsuas siab | Cov ntaub ntawv zaum |
| Chav Kawm 150 txog Chav Kawm 2500, PN 2.5 txog PN420,10K-20K | Trim Khoom yog Hlau rau Hlau acc rau API 600 |
| Shutoff Rating | Cov ntaub ntawv Disc |
| Xoom Leakage | Carbon Steel, Stainless Hlau, Nickel Aluminium Bronze, hlau alloy, thiab lwm yam |
| Lub cev Style | Tsim qauv |
| Ob chav flanged, taub qab Weld, | ASME B16.34, BS1873, DIN3356, API 623 |
| Flange Drilling | Kev xeem Standard |
| ASME B16.5, EN 1092-1, GOST 33259, ASME B16.47 | API 598, EN 12266-1, ISO 5208 |
| Cov ntawv pov thawj | Ntsej muag ntsej muag |
| CE, EAC, SIL3, API 6FA, ISO 19001, API 600 | ASME B16.10, EN558-1 |
| Fugitive Emissions | Kev ua haujlwm |
| ISO 158484-1 | Wench, Iav, Hluav taws xob, Pneumatic, thiab lwm yam |

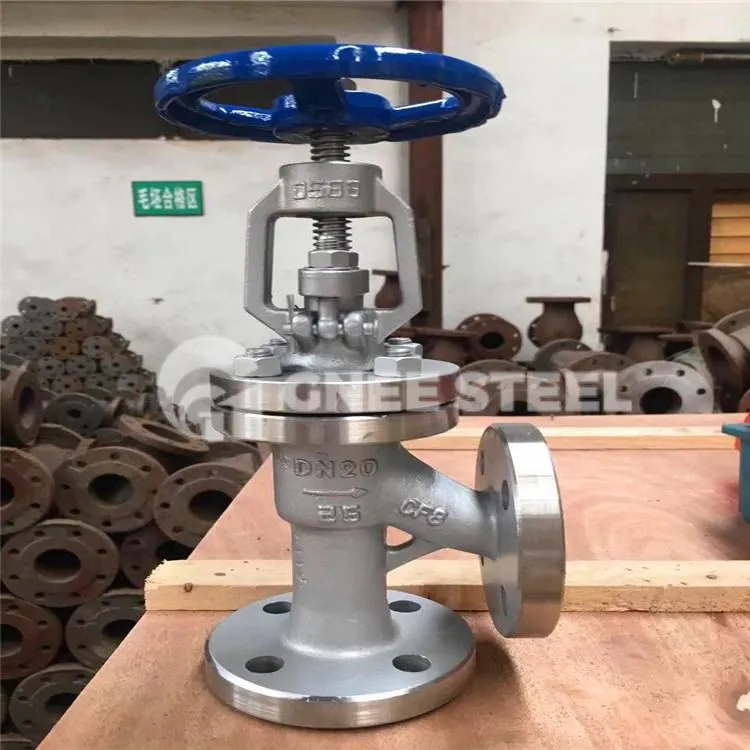

Lub kaum ntse ntse Globe Valves
FAQ
1.Q: Koj puas yog lub tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom nrog 7000 square meter Hoobkas thiab 200 tus neeg ua haujlwm.
2.Q: Koj puas tuaj yeem muab cov duab kos rau kev pom zoo?
A: Yog, peb tuaj yeem muab cov duab kos rau hauv 24 teev.
3.Q: Koj puas tuaj yeem ua qhov kev sim tsis muaj kev puas tsuaj ntawm cov khoom siv valve?
A: Yog lawm, peb tuaj yeem ua qhov ntsuas hluav taws xob, ntsuas kev nkag mus, kuaj ultrasonic, ntsuas qhov sib nqus, thiab lwm yam.
4.Q: Peb puas tuaj yeem kuaj xyuas qhov zoo?
A: Tau kawg. Koj tuaj yeem qhia tus qauv thiab peb yuav npaj cov qauv hauv 7 hnub.
5.Q: Koj puas tuaj yeem pab nrog kev saib xyuas ntawm qhov chaw thiab commissioning?
A: Yog, peb zoo siab pab thaum koj xav tau. Peb tuaj yeem xa peb pab pawg tom qab muag los daws qhov teeb meem hauv 14 hnub
