Flange steel Y-hom nres valve (Arui valve) yog tsim rau kev txiav tawm lossis sib txuas xov xwm hauv cov kav dej ntawm ntau yam kev ua haujlwm xws li roj av, tshuaj, tshuaj, chiv, thiab fais fab kev lag luam nrog nominal siab PN1.6 ~ 6.4Mpa thiab ua haujlwm kub. -29 ~ 550 degree . Cov xov xwm siv tau muaj xws li: dej, roj, chav dej, kua qaub, thiab lwm yam. Cov kev ua haujlwm yog: phau ntawv thiab pneumatic.
Y Qauv Globe Valves Specification
| Qhov Loj | Khoom siv lub cev |
| 1/2"{2}}"(15mm{4}}mm) | Carbon Steel, Stainless Hlau, Nickel Aluminium Bronze, hlau alloy, thiab lwm yam |
| Qhov kub thiab txias | Cov khoom siv qia |
| -196 rau 500 degree | Stainless hlau |
| Kev ntsuas siab | Cov ntaub ntawv zaum |
| Chav Kawm 150 txog Chav Kawm 2500, PN 2.5 txog PN420,10K-20K | Trim Khoom yog Hlau rau Hlau acc rau API 600 |
| Shutoff Rating | Cov ntaub ntawv Disc |
| Xoom Leakage | Carbon Steel, Stainless Hlau, Nickel Aluminium Bronze, hlau alloy, thiab lwm yam |
| Lub cev Style | Tsim qauv |
| Ob chav flanged, taub qab Weld, | ASME B16.34, BS1873, DIN3356, API 623 |
| Flange Drilling | Kev xeem Standard |
| ASME B16.5, EN 1092-1, GOST 33259, ASME B16.47 | API 598, EN 12266-1, ISO 5208 |
| Cov ntawv pov thawj | Ntsej muag ntsej muag |
| CE, EAC, SIL3, API 6FA, ISO 19001, API 600 | ASME B16.10, EN558-1 |
| Fugitive Emissions | Kev ua haujlwm |
| ISO 158484-1 | Wench, Iav, Hluav taws xob, Pneumatic, thiab lwm yam |

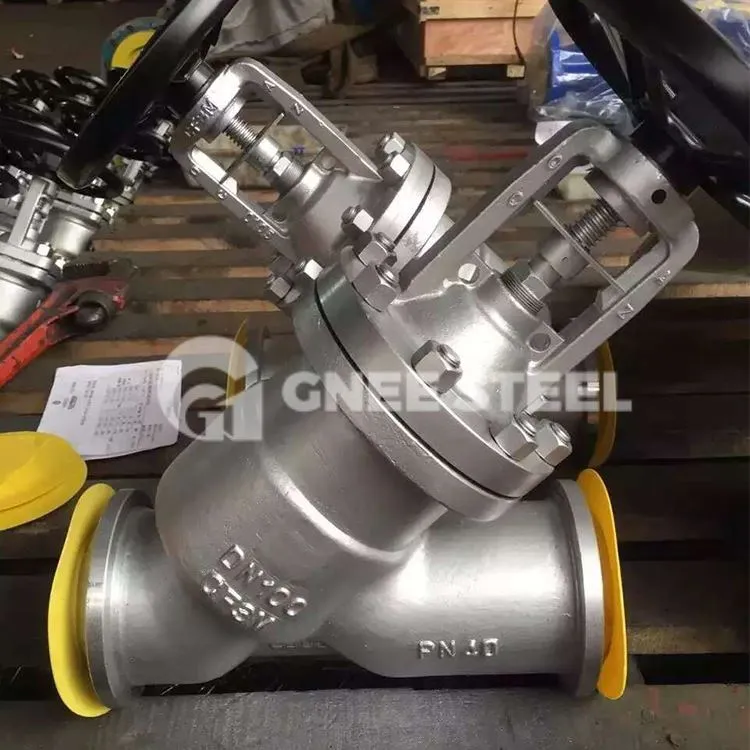

Y-hom ntiaj teb li qub
Qhov zoo
1. Cov khoom muaj cov qauv tsim nyog, txhim khu kev qha sealing, kev ua haujlwm zoo, zoo nkauj tsos, thiab yooj yim rau kev tsim thiab tswj;
3. Kev ua haujlwm stroke me me thiab lub sijhawm qhib thiab kaw yog luv.
4. Lub sealing nto yog thawb thiab welded nrog Stellite carbide, uas muaj kev hnav zoo, corrosion kuj, thiab kev sib txhuam tsis kam, thiab muaj lub neej ntev kev pab cuam;
5. Lub qia valve yog tempered thiab nitrided rau saum npoo, nrog zoo corrosion kuj thiab kev sib txhuam tsis kam;
6. Muab ob npaug rau sealing (nrog rau lub tshuab nqus tsev tsim) tuaj yeem siv tau, thiab qhov kev xeem rov ua dua yog 10, 000 lub sijhawm tsis ua haujlwm, thiab kev ua haujlwm tau zoo dua los tiv thaiv kev xau;
7. Lub valve qia lifting txoj hauj lwm qhia yog ntau intuitive;
8. Cov khoom siv ntawm qhov chaw, qhov loj ntawm flange thiab lub taub qab vuam kawg tuaj yeem xaiv tau raws li qhov kev ua haujlwm tiag tiag lossis cov neeg siv khoom kom tau raws li ntau yam kev xav tau ntawm engineering.
