Lub viav vias kos li qub feem ntau ntsia kab rov tav, tab sis ntev li ntev tau koj zam lub valve kom ncav cuag qhov chaw tuag, koj tuaj yeem ntsia tau ntsug. Nyob rau hauv cov ntaub ntawv ntawm ntsug installation, lub valve kaw torque yog generated los ntawm nws lub ntiajteb txawj nqus, vim lub valve nyob rau hauv lub siab qhib txoj hauj lwm thaum lub kaw torque yog heev me me, yog li ntawd lub valve yuav ncua kaw. Txhawm rau kov yeej qhov tsis txaus ntawm lub valve qeeb teb rau qhov nruab nrab tsis ruaj khov, lub valve tuaj yeem teeb tsa rau lub zog ntawm lub cev hnyav lossis lub caij nplooj ntoos hlav los pab kev thauj khoom.
Swing Check Valves Specification
|
Qhov Loj |
Khoom siv lub cev |
|
1 1/2"-30" DN 40-DN750 |
WCB, LCB, WC6, CF8, CI A126 CL.B, Brass B16, Bronze B62 |
|
Kev ntsuas siab |
Khoom siv Disc |
|
Chav kawm 150-Class2500 PN 16-PN200 |
WCB, LCB, WC6, CF8, CI A126 CL.B, Brass B16, Bronze B62 |
|
Xaus kev sib txuas |
Khoom siv zaum |
|
Flange (RF, RJ), taub qab vuam |
A105, F304, #25, 304 |
|
Qauv Qauv |
Cov khoom siv qia |
|
Chaw nres nkoj puv |
/ |
|
Actuator Options |
Tsim qauv |
|
/ |
BS 1868, GB/T 12236, MS SP -71 |
|
Qhov kub thiab txias |
Ntsej muag ntsej muag Standard |
|
-29 degree ~ 550 degree |
ASME B16.10, GB / T 12221, GB / T15188.1 |
|
Kev sib txuas Standard |
Test Standard |
|
Flange Drilling: ASME B16.5, ASME B16.47, GB / T 9113, JB / T 79 Butt Weld: ASME B16.25, GB / T 12224 |
API 598, JB/T 9092, GB/T 13927 |

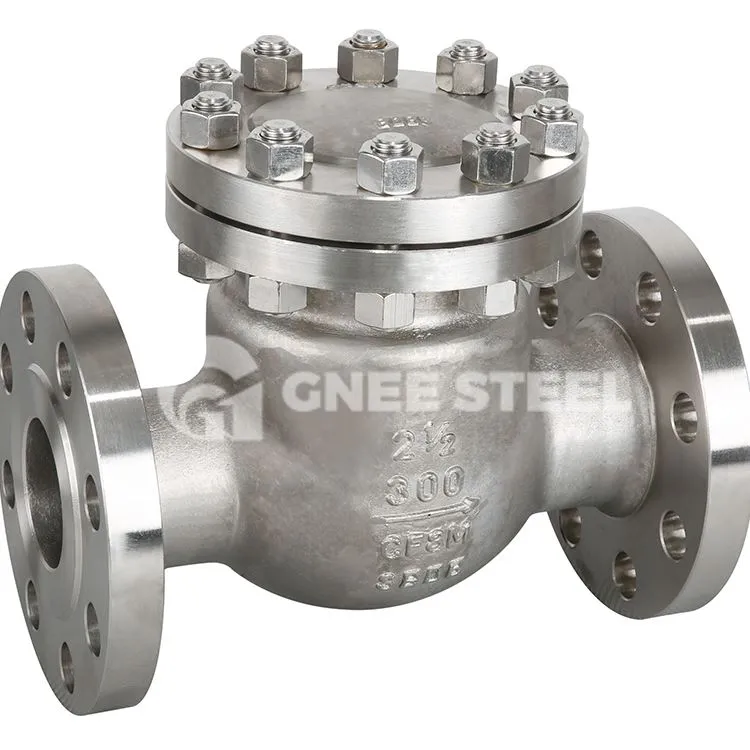

Lub Vev Xaib Valves
Lub disc ntawm lub viav vias kos valve yog disc-puab thiab rotates nyob ib ncig ntawm lub rotating ncej ntawm lub valve rooj channel. Vim hais tias cov channel nyob rau hauv lub valve yog streamlined, cov ndlwg tsis kam yog me dua li ntawm lub lift check valve. Nws yog qhov tsim nyog rau lub sijhawm loj-caliber nrog tus nqi qis qis thiab tsis tshua muaj kev hloov pauv, tab sis tsis haum rau cov dej ntws tawm. Nws sealing kev ua tau zoo tsis zoo li lub tshuab nqa check valve. Lub viav vias kos li qub tau muab faib ua ib hom nrov nrov, ob hom nrov nrov thiab ntau hom nrov nrov. Peb hom no feem ntau muab faib raws li lub valve txoj kab uas hla. Lub hom phiaj yog txhawm rau tiv thaiv qhov nruab nrab los ntawm kev txwv tsis pub ntws los yog rov qab thiab ua kom tsis muaj zog ntawm qhov cuam tshuam hydraulic.
