Swash phaj kos valve yog tsim rau kev tiv thaiv rov qab ntws ntawm cov kua hauv kab rov tav lossis ntsug kav. Hauv cov kav dej ntsug, lossis cov kav dej uas muaj lub kaum sab xis ntawm kab rov tav thiab ntsug, cov tshev valve tsuas yog tsim rau cov kav dej nrog nruab nrab ntws mus.
|
Qhov Loj |
Khoom siv lub cev |
|
2"-60" DN 50-DN1500 |
WCB, CF8, CF3, CF8M, CF3M, B148, A105, LF2, F304, F316 |
|
Kev ntsuas siab |
Khoom siv Disc |
|
Chav kawm 150-Class1500 PN 16-PN100 |
WCB, CF8, CF3, CF8M, CF3M, B148, A105, LF2, F304, F316 |
|
Xaus kev sib txuas |
Khoom siv zaum |
|
Flange (FF, RF, RJ), BW |
A105 |
|
Qauv Style |
Cov khoom siv qia |
|
Chaw nres nkoj puv |
/ |
|
Actuator Options |
Tsim qauv |
|
/ |
ASME B16.34, API 6D |
|
Qhov kub thiab txias |
Ntsej muag ntsej muag Standard |
|
-196 degree ~ 550 degree |
ASME B16.10 |
|
Kev sib txuas Standard |
Test Standard |
|
Flange Drilling: ASME B16.5 Butt vuam: ASME B16.25 |
API 598 |
Khoom siv
| code |
Lub cev |
Disc | Sealing lub rooj | |
|
P |
CF 8 |
CF8+STL |
0Cr19Ni9 |
PTFE |
|
R |
CF8M |
CF8M + STL |
0Cr17Ni12Mo2 |
|
|
K |
CF 3 |
CF3+STL |
00Cr19Ni11 |
|
|
J |
CF 3M |
CF3M + STL |
00Cr17Ni14Mo2 |
|
|
E |
CN 7M |
CN7M + STL |
20 Alloy |
|
|
C |
WCB |
WCB+13Cr |
0Cr19Ni9 |
|
|
D |
LCB |
CF8+STL |
0Cr19Ni9 |
|
MAIN NTA
Haum rau txhua tus qauv flanges
Lub ntsej muag luv luv
Zoo nruj raws li API 598
Tsis tshua muaj siab poob thiab qhib siab
Cov tshuaj tiv thaiv kaw nrawm (oblique zaum) uas txo cov rauj dej
Raws li ib qho kev xaiv auxiliary caij nplooj ntoos hlav tsub kom cov tshuaj tiv thaiv kaw

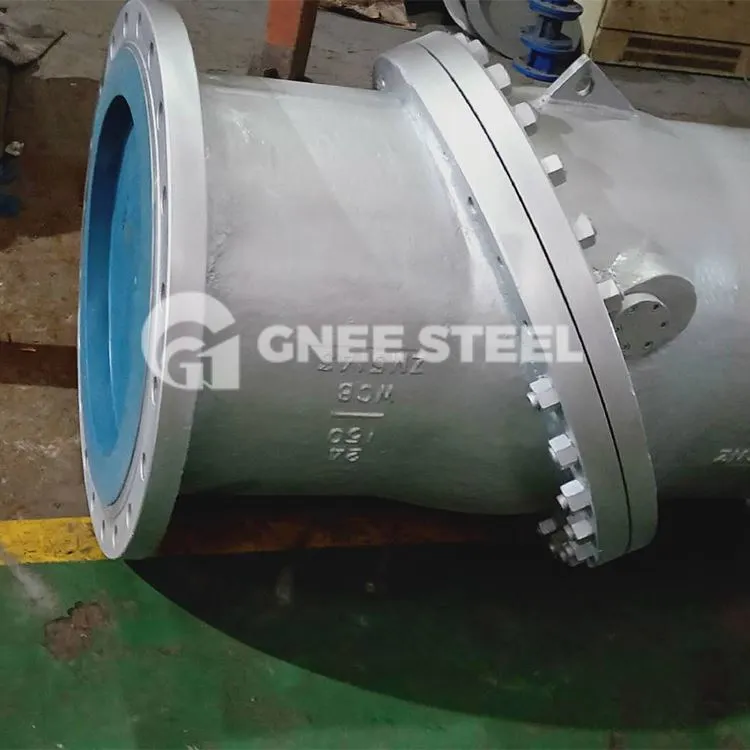

Disc Check Valves
