Dual phaj kos valve tso siab rau qhov ntws ntawm qhov nruab nrab nws tus kheej kom qhib thiab kaw lub valve disc kom tiv thaiv qhov rov qab ntawm qhov nruab nrab thiab rauj nyhuv ntawm dej; ob lub valve phaj tig ib ncig ntawm lub nruab nrab valve ncej, zoo li ob lub qhov rooj zawv zawg, thiab nruab nrog cov springs, thawb ob lub valve disc kom txav mus rau hauv kev taw qhia ntawm lub valve kaw; npauj npaim check valve muaj cov qauv yooj yim thiab tsuas yog ntsia tau rau ntawm cov kav dej kab rov tav, thiab nws cov sealing kev ua tau zoo kuj tsis zoo, thiab nws cov kev ua tau zoo sealing tsis siab thaum siv; nws yog tsim rau cov nroog, industrial thiab high-rise lub tsev dej thiab cov kav dej sib txuas, cov qauv ntev yog luv dua li lub viav vias kos valve, thiab kev teeb tsa yooj yim dua.
Dual-Plate Check Valves Specification
|
Qhov Loj |
Khoom siv lub cev |
|
2"-8" DN 50-DN200 |
WCB, CF8, CF8M, CF3, CF3M |
|
Kev ntsuas siab |
Khoom siv Disc |
|
Chav kawm 150-Class2500 PN 16-PN200 |
WCB, CF8, CF8M, CF3, CF3M |
|
Xaus kev sib txuas |
Khoom siv zaum |
|
Hom Wafer |
F6a, STL6, 304,316, Hastelloy, Monel, thiab lwm yam. |
|
Qauv Qauv |
Cov khoom siv qia |
|
Full Port, Dual Phaj |
2Cr13, 304, 304L, CF8M, CF3M |
|
Actuator Options |
Tsim qauv |
|
/ |
API 594, API 6D, ASME B16.34, DIN3356, JB/T8937 |
|
Qhov kub thiab txias |
Ntsej muag ntsej muag Standard |
|
-29 degree ~ 425 degree |
API 594, API 6D, DIN3202, JB/T8937 |
|
Kev sib txuas Standard |
Test Standard |
|
Flange Drilling: ASME B 16.5 / ASME 16.47, DIN 2543-2545, JB / T9112 ~ 24 |
API598, ISO5208, DIN3230, JB/T9092 |

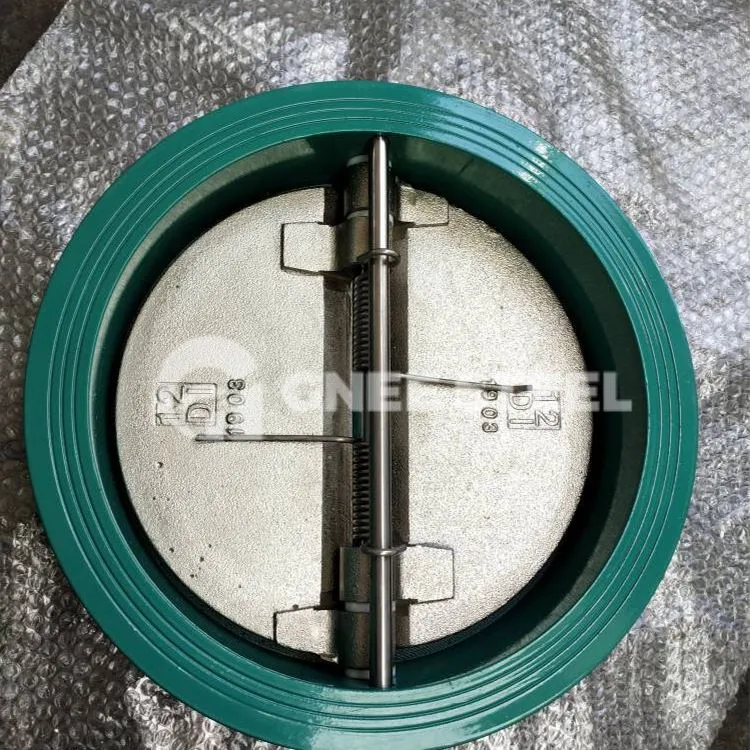

Dual-Plate Check Valves
FAQ
Q: Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom thiab lub Hoobkas, thiab tseem yog lub tuam txhab ua lag luam.
Q: Koj cov khoom lag luam yog dab tsi?
A: Peb tuaj yeem tsim cov khoom lag luam xws li npauj npaim li qub, rooj vag li qub, kos li qub, pob li qub, ntsaws li qub, thiab lwm yam raws li ISO / ANSI / DIN / JIS / EN / GOST / AS cov qauv.
Q: Koj lub Hoobkas puas muaj Tshuag? Yuav ua li cas txog koj lub sijhawm xa khoom?
A: Peb muaj qhov loj me li qub hauv Tshuag. Lub sij hawm xa tuaj nyob ntawm koj qhov ntau, feem ntau yog 30-35 hnub.
Q: Lub teb chaws twg koj xa mus rau?
A: Peb xa tawm mus rau ntau tshaj 150 lub teb chaws thiab cheeb tsam xws li New Zealand, Chile, UAE, Indonesia, thiab lwm yam.
Q: Koj yuav muab daim ntawv pov thawj dab tsi?
A: Peb tuaj yeem muab CE / ISO / WRAS.
Q: Kev pab cuam tom qab muag
A: Tag nrho cov khoom tuaj nrog 18- lub hlis lav. Raws li cov chaw tsim khoom muaj kev paub dhau los, koj tuaj yeem tau txais txiaj ntsig ntawm peb cov kev pabcuam zoo thiab kev muag khoom.
Q: Txoj kev them nyiaj
A: T / T, L / C, OA, D / P, D / A.
Q: Koj puas muab cov qauv dawb?
A: Peb tuaj yeem muab cov qauv dawb.
Cim npe nrov: Tuam Tshoj dual-phaj check li qub manufacturers, lwm tus neeg, Hoobkas
