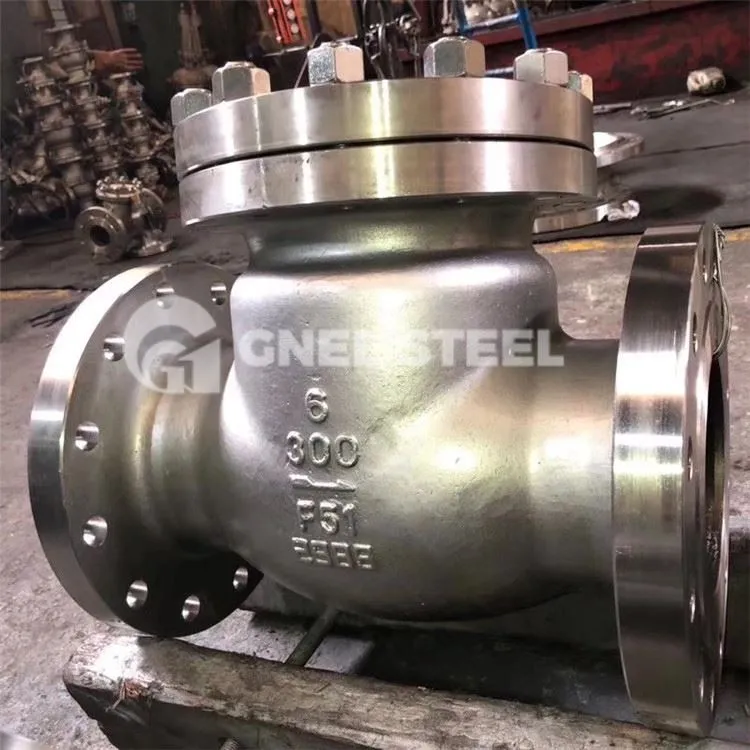

Stainless hlau viav vias kos valve tseem hu ua check valve, kos valve. Nws qhov qhib thiab kaw yog tsav los ntawm qhov ntws siab ntawm qhov nruab nrab hauv cov kav dej. Lub luag haujlwm tseem ceeb yog tiv thaiv qhov nruab nrab ntawm ntws rov qab, thaum tiv thaiv lub twj tso kua mis thiab lub cev muaj zog thim rov qab, tshem tawm qhov tshwm sim ntawm dej rauj.
Specification
• SS 316 peev casting lub cev
• Ua haujlwm siab ntawm 200 PSI
• Haum rau ntau yam kua thiab roj (WOG)
• Qhov kub thiab txias: -40 degree F txog 400 degree F
• 100% kev kuaj tus kheej
• NPT Threaded xaus (ANSI B1.20.1)
Lub npe - Khoom siv
Lub cev - SS 316 / CF8M
Lub kaus mom - SS 316 (CF8M)
Disc - SS 316 (CF8M)
Pin Pin - SS 304
Plug - SS 304
Plug Gasket - PTFE
Gasket - PTFE
Cov yam ntxwv ntawm stainless hlau viav vias kos valve:
Cov ntaub ntawv siv nyob rau hauv GNEE Stainless Hlau Viav Vias Valves raug kuaj nruj kom ua tau raws li cov qauv thoob ntiaj teb;
GNEE Stainless hlau viav vias kos li qub yog muab thiab haum nrog cov pob khawm thiab pob khawm kom tso cai rau tag nrho cov flap txav.
GNEE stainless hlau viav vias kos li qub muaj cov rooj zaum txuas ntxiv;
Standard viav vias disc hom rau kev siv kua ua kua nyob rau hauv ib tug kab rov tav txoj hauj lwm los yog nyob rau hauv ib tug ntsug txoj hauj lwm uas cov kua ntws los ntawm hauv qab mus rau saum.
Tsim thiab tsim ua raws li API 6D, BS1868, lossis ASME B16.34;
Xaus qhov ntev raws li ASME B16.10;
Bolted npog kev tsim kho;
Optional bypass systems thiab counterweight sib dhos. Ceev-kaw, hloov tau-ua haujlwm li qub.
Kev kaw nrawm thiab yoog raws lub suab nrov nrov; qis kaw poob siab thiab tsis muaj dej rauj.
Me me kaw kev poob siab, tsis yooj yim los tsim dej rauj.
Oscillating valve nrov plig plawg
Damping lub tog raj kheej tuaj yeem tsim.
