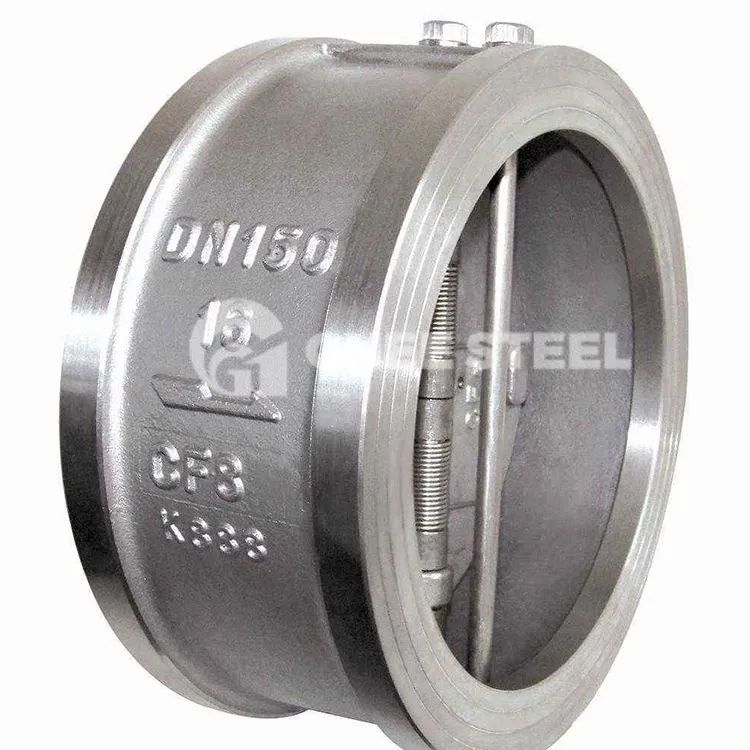

Stainless Hlau Wafer Ob Chav Disc Check Valve

Wafer check valve muaj ntau yam zoo vim nws qhov ntev ntawm cov qauv, me me, lub teeb yuag, yooj yim thiab compactness, thiab rhiab heev. Nws yog dav siv nyob rau hauv engineering systems. Wafer check li qub tau muab faib ua peb hom qauv: nqa hom, viav vias hom thiab hom npauj npaim. Lub viav vias hom yog muab faib ua ob hom: ib leeg-nplab viav vias hom thiab ob-nplhaib viav vias hom.

Lub wafer check valve yog siv nyob rau hauv cov kua kav dej. Nws tso siab rau qhov ntws ntawm qhov nruab nrab hauv cov kav dej kom tsim tau lub zog thiab cia li qhib thiab kaw. Nws tuaj yeem siv los tiv thaiv qhov nruab nrab hauv cov raj xa dej kom tsis txhob ntws rov qab, thiab tiv thaiv lub twj tso kua mis thiab nws lub cev muaj zog ntawm kev thim rov qab. kev sib hloov, thiab kev tso tawm ntawm qhov nruab nrab hauv lub thawv.

Specifications:

Khoom npe	Stainless Hlau Ob Chav Disc Wafer Hom Kos Valve
1. Khoom siv	SS304/316/304L/316L (CF8/CF8M/CF3/CF3M), WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, thiab lwm yam
2. Loj	2 '' ~ 24 '' (DN50 ~ DN600)
3. Xov txheem	ISO9001 & CE, TS
4. Hom	Hom Wafer
5. Ua haujlwm siab	150LB / 300LB / 600LB / 900LB / 1500LB
6. Cov qauv siv tau	API 594, API 6D, cov qauv
7. Ua haujlwm Temp.	-29 ~ 425 degree , lossis raws li cov neeg siv khoom xav tau rau kev lag luam sib txawv.
8. Haum Nruab Nrab	Dej, Natural Gas, Roj thiab qee cov kua corrosive
9. Kev Tshawb Fawb & Kev Ntsuas	Raws li API598 / DIN3230
Kev xa khoom
Lub sij hawm xa tuaj	15 ~ 20 Hnub
Pob	Standard Exporting Plywood Case
Chaw nres nkoj shipping	Ningbo/Shanghai, Suav teb
Cov ntsiab lus shipping	Exw, FOB, CFR, CIF, thiab lwm yam.
Cov nqe lus them nqi	T / T, Western Union, PayPal, thiab lwm yam.
	30% them ua ntej, 70% tshuav nyiaj them ua ntej xa khoom lossis tiv thaiv daim ntawv BL
Lub Tebchaws Keeb Kwm	Henan, Suav
Muaj Peev Xwm Ntau Lawm	6000 tons / xyoo
MOQ	10 PCS / loj

Lub ntsiab qhov ntev ntawm stainless hlau wafer kos valve

DN (mm)	L (mm)	H (mm)	D (mm)
DN (mm)	L (mm)	H (mm)	1. 0MPa	1.6MPa
50	43	60	105	105
65	46	73	124	124
80	64	89	142	142
100	64	110	162	162
125	70	141	192	192
150	76	168	218	218
200	89	219	272	273
250	114	273	328	328
300	114	324	378	384

Stainless hlau Check Valve

stainless steel wafer valve 316 stainless steel wafer check valve
