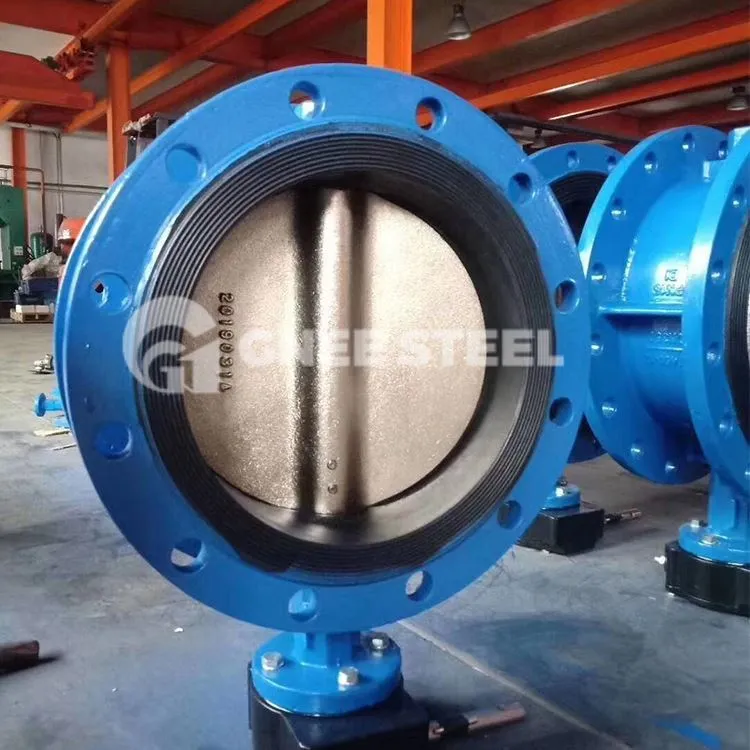

Ib qho Offset Npauj Npaim Valve

Ib qho offset npauj npaim valve thiab lub sab sauv thiab sab valve ncej txais qhov kev sib txuas ntawm qhov zoo li lub qhov thiab zoo li tus ncej, uas paub txog kev ua haujlwm ntawm pinless linkage ntawm qhov nce thiab nqis, sab laug thiab sab xis ntab ntawm npauj npaim phaj nyob rau hauv tus txheej txheem ntawm qhib thiab kaw. lub phaj npauj npaim, thiab txo qhov kev cuam tshuam ntawm lub phaj npauj npaim thiab lub rooj zaum valve, uas txo cov torque zoo heev.

Yuav kom daws tau qhov teeb meem ntawm concentric npauj npaim valve npauj npaim phaj thiab lub rooj zaum valve extrusion, yog li tsim ib qho eccentric npauj npaim valve, cov yam ntxwv ntawm lub valve qia axis deviated los ntawm qhov chaw ntawm npauj npaim phaj, kom lub sab sauv thiab qis kawg ntawm lub phaj npauj npaim yog tsis dhau los ua lub axis teb, dispersed, kom alleviate lub sab sauv thiab qis kawg ntawm npauj npaim phaj thiab lub rooj zaum valve ntawm lub extrusion ntau dhau.

Loj	2 "~ 48" (DN50 ~ DN1200) qhov ntau thiab tsawg yog thov
Siab	Chav Kawm ANSI #150 ~ 900, PN10, PN100
Khoom siv lub cev	Carbon steel, stainless hlau, hlau alloy, duplex hlau, thiab lwm yam.
Kev ua raws cai	ISO 5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN3202.
Xaus kev sib txuas	Flanged Ends LOSSIS WAFER, LUG, BW
Kev ua haujlwm	phau ntawv, pneumatic, hluav taws xob, lossis lwm yam
Cov ntsaws ruaj ruaj	NBR, EPDM, VITON, PTFE lossis hlau rooj, thiab lwm yam.

Qhov loj thiab qhov hnyav ntawm Ib Leeg Eccentric Valve

Specifications	Kev sib kis	L	D	D1	d	n	d0	b	f	Φ	hnyav
DN100	XJ 24	127	220	180	156	8	19	19	3	150	19
DN150	XJ 24	140	285	240	211	8	23	19	3	150	37
DN200	XJ 30	152	340	295	266	8	23	20	3	300	51
DN 250	XJ 30	165	395	350	319	12	23	22	3	300	68
DN 300 Nws	4022	178	445	400	370	12	23	24.5	4	300	93
DN350	4023	190	505	460	429	16	23	24.5	4	400	122
DN400	4023	216	565	515	480	16	28	24.5	4	400	152
DN450	4024	222	615	565	530	20	28	25.5	4	400	182
DN500	4024	229	670	620	582	20	28	26.5	4	400	230
DN 600 Nws	4025	267	780/755	725/705	682/667	20	31/26	30	5	400	388
DN 700 Nws	4025	292	895/860	840/810	794/772	24	31/26	32.5	5	400	480
DN 800 Nws	4026	318	1015/975	950/920	901/878	24	34/31	35	5	500	661
DN900 Nws	4026	330	1115/1075	1050/1020	1001/978	28/24	34/31	37.5	5	500	813
DN1000	4026	410	1230/1175	1160/1120	1112/1078	28	37/31	40	5	500	1018
DN1200 Nws	4027	470	1455/1405	1380/1340	1328/1295	32	40/34	45	5	500

Npauj Npaim Valve

Single eccentric Butterfly Valve
