Lub qia ncej ntawm lub pneumatic triple eccentric npauj npaim valve yog peb ntu ncej qauv. Ob ntu ntawm peb ntu ncej yog concentric, thaum lub hauv paus kab ntawm qhov chaw nruab nrab ntawm tus ncej deviates los ntawm cov kab nruab nrab ntawm ob kawg los ntawm ib qho chaw nyob deb, thiab tus npauj npaim phaj yog mounted rau ntawm nruab nrab seem ntawm lub ncej. . Xws li cov qauv eccentric ua rau npauj npaim phaj ua ob npaug eccentric thaum nws nyob hauv txoj haujlwm qhib tag nrho, thaum nws dhau los ua ib qho eccentric thaum lub phaj npauj npaim tig mus rau qhov chaw kaw. Vim lub luag hauj lwm ntawm eccentric ncej, thaum nyob ze rau lub kaw, npauj npaim phaj mus rau lub rooj zaum ntawm lub sealing cone mus rau hauv ib tug deb, npauj npaim phaj thiab lub rooj zaum ntawm lub sealing sealing nto coincide mus cuag ib tug txhim khu kev qha sealing kev kawm. Nws ua rau qhov tsis sib haum xeeb tias cov foob tawv tawv tsis zoo sealing thiab mos foob muaj cov nyhuv sealing zoo tab sis tsis kub tsis kam.
Standards Compliance thiab Design Features
- Lockable Lever
- Kev ruaj ntseg ntawm qhov chaw
- Yooj yim ntawm automation
- Zoo kaw kaw
- Kev xaiv sab saum toj flanges rau ISO 5211
- Tsim nyog rau cov kev pabcuam gaseous thiab kua
- Cov kab dav ntawm lub cev thiab cov khoom siv trim rau ntau yam kev pabcuam nruab nrab.
- ISO 5752, BS 5155, API 609, MSS-SP -68, ASME B16.10, ASME B16.5, DIN 3202
- Khoom siv: Cast Carbon Steel, Tsawg Temp. Carbon Steel, Satinless Steel, Alloy Steel, duplex steel thiab ect.
- Kub: -196 Deg. C rau 550 Deg.C
- Kev ntsuas siab: ANSI 150 # ~ 600, PN10 ~ PN100
- Qhov Loj: 2 "mus rau 40" - 50mm txog 1000mm (Qhov ntau thiab tsawg yog thov)
- Xaus kev sib txuas: Wafer, Lugged, Ob Flanged, Butt Weld lossis Grooved
- Kev Ua Haujlwm: Phau ntawv, Pneumatic, Hluav taws xob, Hydraulic (Counterweight) & Electro-hydraulic

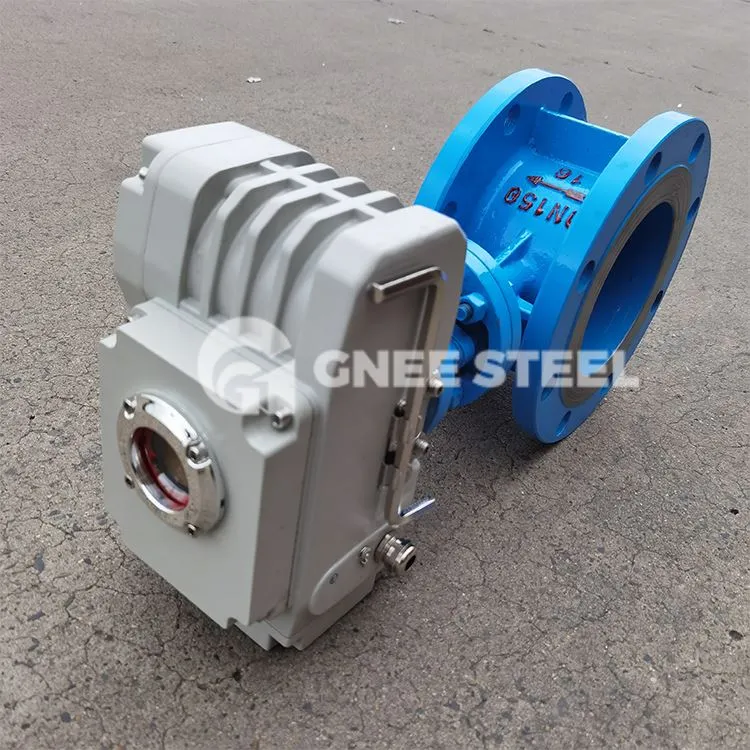

Pneumatic Eccentric Npauj Npaim Valves
