Cov kev ua haujlwm siab hom npauj npaim li qub txuas nrog lub raj xa dej los ntawm flanges, thiab qhov kev sib txuas no ua rau kev sib txuas ntawm lub valve thiab cov kav dej ruaj khov dua, uas yog tsim rau nruab nrab thiab loj kav dej. Nyob rau tib lub sijhawm, kev sib txuas ntawm flange kuj tseem pab txhawb kev txhim kho thiab rhuav tshem lub valve, uas txhim kho qhov yooj yim ntawm kev saib xyuas. Npauj npaim phaj ntawm kev ua tau zoo lug npauj npaim valve feem ntau yog peb txheej txheej, los ntawm sab nraud mus rau sab hauv thiaj li kub-resistant alloy steel, thermal rwb thaiv tsev cov ntaub ntawv thiab stainless hlau, cov qauv no ua rau npauj npaim phaj ntau ruaj khov thiab ruaj khov. nyob rau hauv qhov kub thiab txias ib puag ncig.
Khoom Specification
| Kev sib txuas | Wafer / Lug |
| Nominal txoj kab uas hla | DN 50-DN600 |
| Max. ua hauj lwm siab | Mus txog 50 Bar (Class 300) |
| Txheem ua haujlwm siab | 20 Bar (Class 150), 50 Bar (Class 300) |
| Lub tshuab nqus tsev | Lub tshuab nqus tsev puv |
| Ntsej muag ntsej muag | API 609 Qeb B, Wafer & Lug |
| Flange txheem | EN1092 PN10/16, ANSI Class150, JIS 10K/16K |
| Sab saum toj flange | TS EN ISO 5211 |
| Tightness xyuas | ISO 5208 Qeb 3, API 598 Table 5 |
| Qhov kub thiab txias | -40 degree C rau +400 degree C (nyob ntawm qhov siab, nruab nrab thiab cov khoom siv) |
| Kev ua haujlwm | Tes theem, iav kem, pneumatic actuator, hluav taws xob actuator |

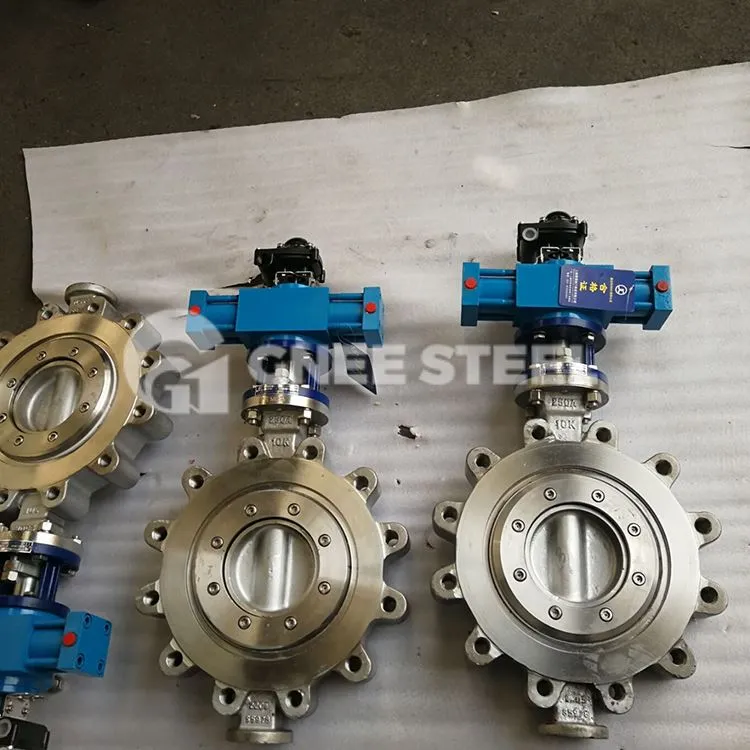

High Performance Lug Hom Npauj Npaim Valve
FAQ
Q: Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?
A: GNEE Group yog lub chaw tsim khoom valve nrog kev paub txog R & D pab neeg.
Q: Hom li qub uas koj tuaj yeem muab tau?
A: Peb tuaj yeem muab cov npauj npaim li qub, pob li qub, kos li qub, thiab lwm yam.
Q: Koj puas muaj daim ntawv pov thawj valve?
A: Yog, peb muaj CE, BV, ATEX, thiab TS daim ntawv pov thawj.
Q: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Yog tias tag nrho cov seem ntawm cov li qub muaj nyob rau hauv Tshuag, lawv tuaj yeem xa tuaj tsis pub dhau 7-10 hnub.
Q: Lub teb chaws twg lossis cheeb tsam twg koj muab li qub rau?
A: GNEE Group muab lub valve rau Tebchaws Meskas, Europe, Australia, Singapore, South Africa, thiab lwm lub tebchaws thiab cheeb tsam. Yog tias koj xav tau li qub, peb yuav ua haujlwm nrog koj.
Cim npe nrov: Kev ua tau zoo lug hom npauj npaim valve, Tuam Tshoj siab kev ua tau zoo lug hom npauj npaim valve manufacturers, lwm tus neeg, Hoobkas
