Cov kab npauj npaim valve muaj cov qauv yooj yim, me me thiab lub teeb yuag, thiab tsuas yog tsim los ntawm ob peb yam. Ntxiv mus, nws tsuas yog yuav tsum tau tig 90 degree kom qhib thiab kaw sai, uas yooj yim rau kev khiav lag luam. Nyob rau tib lub sijhawm, lub valve hluav taws xob muaj cov yam ntxwv tswj cov dej zoo. Thaum lub ductile hlau npauj npaim valve nyob rau hauv lub siab qhib txoj hauj lwm, lub thickness ntawm tus npauj npaim phaj yog tsuas yog tsis kam thaum lub nruab nrab ntws los ntawm lub valve lub cev. Yog li ntawd, lub siab poob generated los ntawm lub valve yog heev me me, yog li nws muaj zoo txaus tswj cov yam ntxwv. Yog hais tias tus npauj npaim valve yuav tsum tau siv raws li kev tswj ntws, qhov tseem ceeb yog xaiv qhov loj thiab hom valve kom raug. Lub hauv paus ntsiab lus ntawm npauj npaim valve yog tshwj xeeb tshaj yog tsim rau kev ua cov kab loj loj li qub. Npauj npaim li qub tsis tsuas yog siv dav hauv kev lag luam dav dav xws li roj av, roj, kev lag luam tshuaj, thiab kev kho dej, tab sis kuj tseem siv rau hauv cov dej txias ntawm cov chaw siv hluav taws xob thermal.
Npauj Npaim Valves Specifications
|
Qhov Loj |
Khoom siv lub cev |
|
1 1/2"-40" DN 40-DN1000 |
Cam khwb cia / Ductile Hlau, WCB, Aluminium bronze |
|
Kev ntsuas siab |
Khoom siv Disc |
|
Chav kawm 125-Class150 PN 10-PN16 |
Cam khwb cia / Ductile Hlau, WCB, Aluminium bronze |
|
Xaus kev sib txuas |
Khoom siv zaum |
|
Flange, Wafer, Lug |
NBR, EPDM, PTFE, VITON |
|
Qauv Style |
Cov khoom siv qia |
|
Ob chav Eccentric, Concentric |
SS416, SS410, 17-4PH, SS304, SS316 |
|
Actuator Options |
Tsim qauv |
|
Phau ntawv, Worm iav, Pneumatic, Hluav taws xob, hydralic |
MSS SP -67, API609, EN593 |
|
Qhov kub thiab txias |
Ntsej muag ntsej muag Standard |
|
-0 degree ~ 200 degree |
API609, ISO5752 series 20, BS5155.1 |
|
Kev sib txuas Standard |
Test Standard |
|
Flange Drilling: EN{0}}, ANSI B16.5, BS4504. |
API 598 |

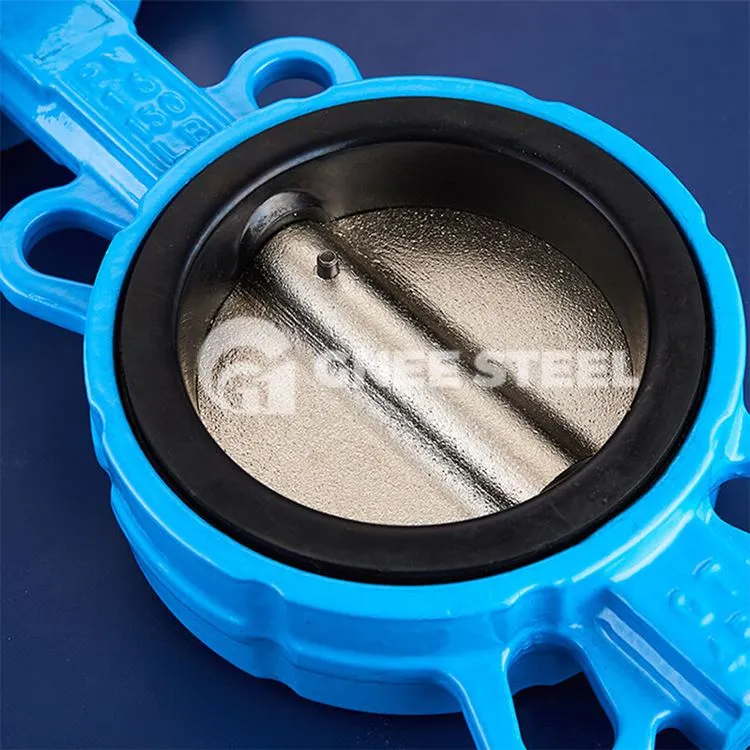

Npauj Npaim Valve
