Lub hauv paus ntsiab lus ua haujlwm ntawm trunnion pob valve yog tswj kev qhib lossis kaw ntawm cov kav dej los ntawm kev tig lub pob. Nyob rau hauv lub xeev kaw ntawm lub valve, lub pob valve thiab gasket foob, lub raj xa dej nruab nrab tsis tuaj yeem ntws los ntawm, thaum tig lub pob mus rau qhov chaw qhib, cov kav dej nruab nrab tuaj yeem ntws tsis tau. API 6D trunnion pob li qub feem ntau yog siv rau kev txiav tawm ntawm cov pa roj thiab kua xov xwm. Nrog cov qauv kev cog lus, kev ua haujlwm ruaj khov, kev ua haujlwm yooj yim thiab yooj yim, hom valve no tau siv dav hauv kev tsim kho, nkoj, roj av thiab lwm yam.
API 6D trunnion hom pob valve Specification
| Tsim | API 6D UAS |
| Xaus kev sib txuas | RF, RTJ, BW |
| Kev ua haujlwm | Phau ntawv / Pneumatic / Hluav taws xob |
| Qhov Loj | NPS 2"-60"(DN50-DN1500) |
| Kev ntsuas siab | ASME Chav Kawm 150 ~ 2500 (PN16 ~ PN420) |
| Khoom siv lub cev | Carbon steel, Stainless hlau, Alloy hlau, Duplex stainless hlau |
| Khoom siv zaum | PTFE, RPTFE, PEEK, NYLON, DEVLON |
| Kub | -46 degree rau 250 degree |

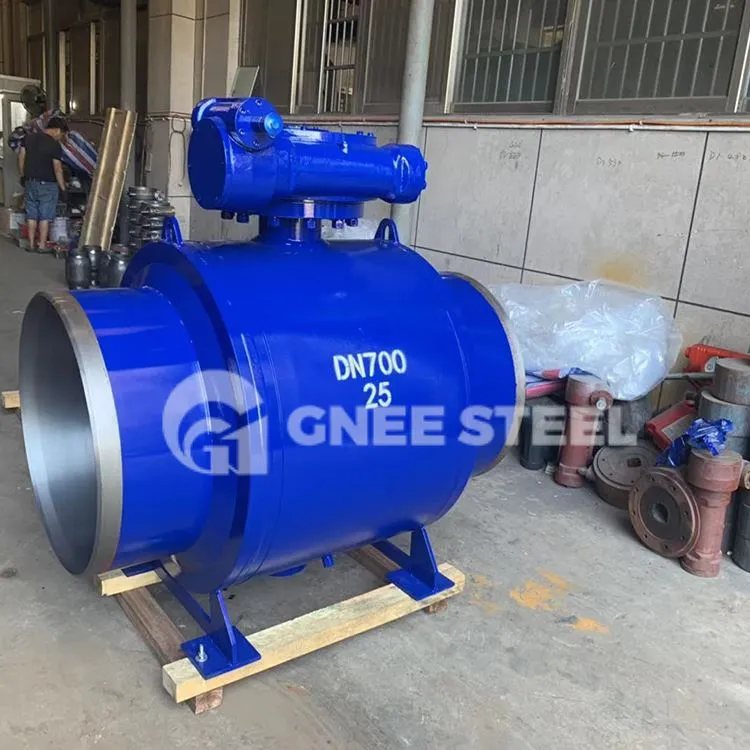

API 6D trunnion mounted valve
6D valve VS 6A valve
1, tib lub caliber 6A ntim yog me dua 6D
2, qhov tshwj xeeb ntawm qib siab 6A yog loj dua 6D
3, qhov tshwj xeeb ntawm qhov kub ntawm 6A yog me dua 6D
Ntxiv: Txawm hais tias 6A kuj muaj X, Y ob theem, tab sis tsawg heev
4, 6D valve lub cev carbon steel ntau dua, tab sis nyob rau hauv 6A carbon steel yog qhov pib ploj mus, txawm hais tias nws tuaj yeem siv tau, qhov yooj yim siv cov pa roj carbon tsawg dua.
