Hlau-sealed pob li qub tuaj yeem hloov mus rau qhov dav dav ntawm qhov kub thiab txias thiab dej tawm. Nyob rau hauv kev ua hauj lwm, lub sealing muaj kev ruaj ntseg thiab txhim khu kev qha, muaj lub neej ua haujlwm ntev, yooj yim rau kev khiav lag luam, thiab muaj kev poob siab me me. Nws yog tsuas yog siv nyob rau hauv kev ua hauj lwm tej yam kev mob nrog kub kub, siab kub, siab corrosive thiab granular xov xwm, xws li thee chemical kev lag luam, polysilicon, sulfuric acid / nitric acid thiab lwm yam lag luam.
Qhov Loj: ½ "- 24"
Rating: 150 # rau 2500 #
Xaus: Screwed, Socket weld, Flanged RF, RTJ, BW
Full Bore / Txo Bore
Tungsten Carbide / Stellite / Ni 60
Antistatic thiab anti tshuab tawm qia tsim
Tsawg emission tsim
Kev Ua Haujlwm: Qib, Iav, Pneumatic lossis Hluav Taws Xob Actuator
|
SPECIFICATIONS FORGED STEEL BALL VALVES |
|
|
Kev ntsuas siab thiab qhov loj: |
PN10 rau PN160, ANSI Class150 rau Chav Kawm 2500, JIS 10K / 20K |
|
DN50 rau DN2000 |
|
|
2"~80" |
|
|
50A~2000A |
|
|
Khoom siv: |
Lub cev: WCB, CF8, CF8M, A105 |
|
Bonnet: WCB, CF8, CF8M, A105 |
|
|
Pob: A105, SS304, SS316 |
|
|
Qauv: F6a, SS304, SS316 |
|
|
Rooj: Hlau |
|
|
Cov khoom tshwj xeeb ntawm kev thov. |
|
|
Ua haujlwm hom |
Pneumatic, Phau ntawv, Hluav taws xob |
|
Qauv: |
Floating los yog trunnion mounted pob, tag nrho los yog txo bore, 3pcs |
|
Flange kev twb kev txuas: |
EN1092 & ANSI B16.5 & JIS |
|
Hom |
Flange RF, RTJ |
|
Qhov siab tshaj plaws ua haujlwm kub: |
Nitrile: 80 degree |

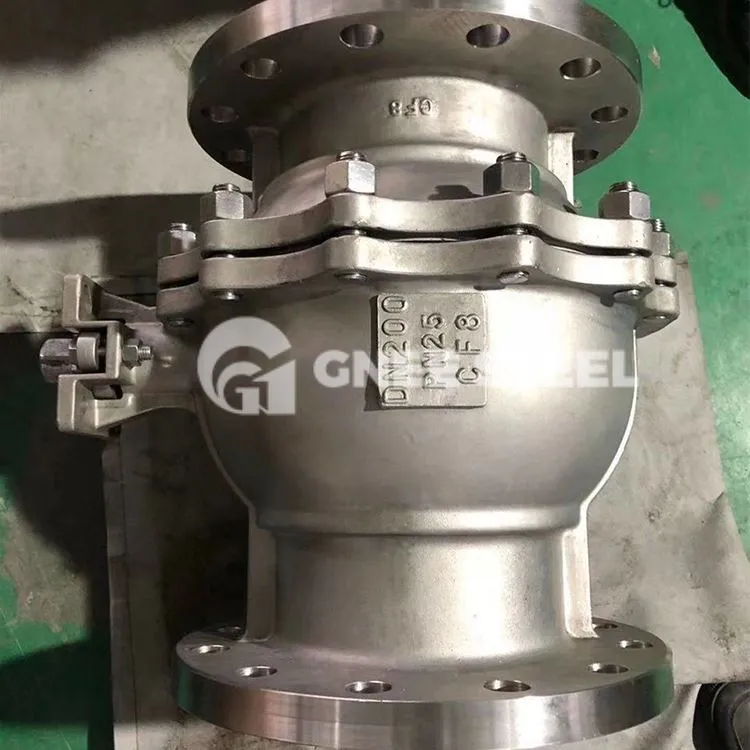

Pob Valve Hlau
- Hlau Sealed Pob Valve: Nta thiab Cov txiaj ntsig
Lub neej ua haujlwm ntev dua: Vim lawv tsis kam tiv thaiv corrosion thiab hnav, cov hlau kaw pob li qub yuav kav ntev dua li cov khoom muag muag. Qhov no txo cov nqi txij nkawm thiab hloov cov nqi, ua rau nws muaj txiaj ntsig zoo rau kev xaiv hauv lub sijhawm ntev.
Qhov kub thiab txias ntau dua: Pob li qub nrog cov rooj zaum hlau muaj peev xwm tiv taus qhov kub thiab txias siab thiab haum rau cov ntawv thov uas xav tau kev ua haujlwm siab hauv qhov kub thiab txias. Hauv qhov sib piv, cov rooj zaum muag muag yuav muaj qee qhov kub thiab txias vim yog cov yam ntxwv ntawm cov khoom siv lub rooj zaum muag.
Kev tiv thaiv ntau dua: Cov pob li qub nrog cov rooj zaum hlau muaj kev tiv thaiv ntau dua li cov khoom muag muag. Qhov no yog vim hais tias cov khoom siv sib tw nyuaj tsim kom muaj kev sib khi zoo dua nrog lub pob, tiv thaiv qhov tsis tsim nyog los thiab poob siab.
