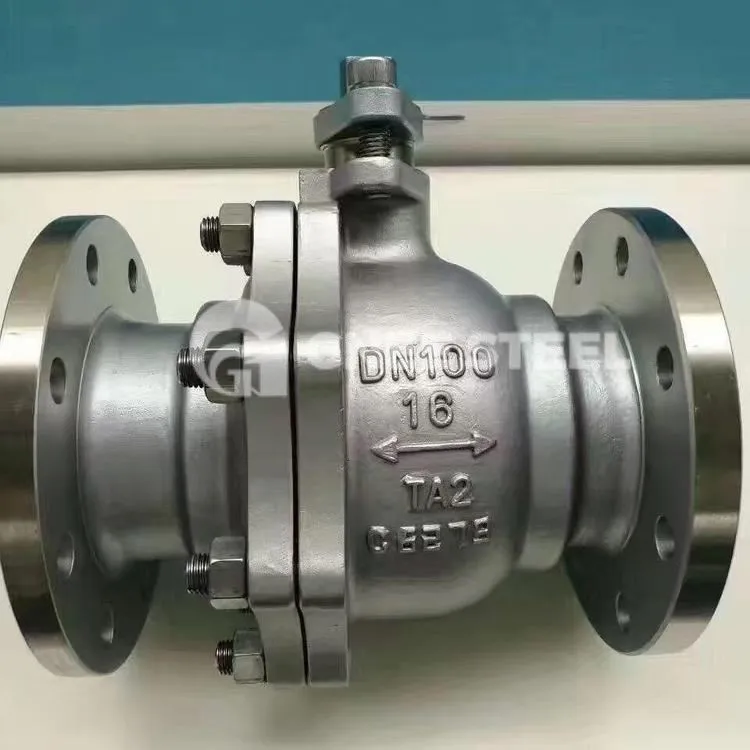

Forged Steel Cryogenic Pob Valve

Lub hauv paus ntsiab lus ua haujlwm ntawm forged steel pob valve yog tig lub valve qia kom qhib lossis thaiv lub valve. Nws feem ntau yog lub pob valve puv lossis 90-degree lub kaum sab xis hloov. Nws yog lub teeb yuag, me me, tuaj yeem ua rau hauv txoj kab uas hla loj, muaj kev ruaj ntseg sealing, qauv yooj yim, thiab kev saib xyuas yooj yim. Lub sealing nto thiab spherical nto yog ib txwm nyob rau hauv lub xeev kaw thiab tsis yooj yim eroded los ntawm nruab nrab. Lawv yog siv nyob rau hauv ntau yam lag luam. Siv dav.

Lub forged steel pob valve muaj 90-degree kev ua haujlwm. Lub cev plug yog ib tug kheej kheej nrog ib ncig ntawm lub qhov los yog channel hla nws axis. Lub pob valve feem ntau yog siv los txiav tawm, faib thiab hloov cov kev taw qhia ntws ntawm qhov nruab nrab hauv cov kav dej. Nws tsuas yog yuav tsum tau tig 90 degrees thiab ib qho me me rotational torque kom kaw nruj nreem.

Qhov ntau thiab tsawg	1″–10"
Qib Siab	150 LB-600 LB
Khoom siv	WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, F51
Tsim thiab tsim cov qauv	API 6D, API 608, ASME B16.34, BS 6364, BS 5351,
Ntsej muag ntsej muag Standards	ASME B16.10, BS 558, BS12982, ISO 5752
Flange Dimension Standards	ASME B16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
Kev Ntsuas Ntsuas Cov Qauv	API 598 API 6D BS 12569 Cov Lus Qhia
Kev Ntsuas Hluav Taws Xob Kev Nyab Xeeb Cov Qauv	API 6FA API 607
Quality/Product Certifications	ISO9001, ISO14001, ISO18001
Fugitive Emissions	ISO 15848-1, API 622
NACE	NCEES MR 0175
Valve tus neeg teb xov tooj xaiv	Handwhel, Worm Iav, Fais Actuator, Pneumatic Actuator, Hydraulic Actuator.
Shutoff Class	API 598 (Xoom Leakage), API 6D
Npog	Full Bore, Txo Bore
Txheej txheem kev sib txuas hom	SW, NPT, BW, RF, RTJ

Forged steel cryogenic pob valvecov khoom tseem ceeb

Tsis muaj	Lub npe	AS to ASTM		SS to ASTM
1	Lub cev	Hom A352 LCB	Hom A352 LC3	Hom F304 (L)	Hom F304 (L)
2	Bonnet	Hom A352 LCB	Hom A352 LC3	A182 F304(L)	A182 F304(L)
3	Bolt	A193L7	A193 3 B8	A193 B8	A193 B8M
4	Txiv ntseej	A193L7	A194 8	A194 8	A194 8M
5	Lub nplhaib foob / Gasket	RTFE + Cu / Nylon / 1010 / PPL
6	Pob	A182 F304	A182 F304(L)	A182 F304(L)	A182 F316(L)
7	Ncej	A182 F304	A182 F304(L)	A182 F304(L)	A182 F316(L)
8	Ntim	RTFE + Cu / Nylon 1010 / PPL / Graphite
9	caj pas	A105N	TIAB SA 351 CF8
10	Lever	A193 L7	A193 B8	A193 B8	A193 B8
11	Haum kub	Ntau dua lossis sib npaug rau -40 degree	Ntau dua lossis sib npaug rau -101 degree	Ntau dua lossis sib npaug rau -196 degree

Forged steel pob valve
