Chav nres valve yog lub valve tshwj xeeb uas tsim los tswj thiab txiav tawm cov dej ntws hauv chav tshuab. Hom valve no yog siv dav hauv cov kav dej xa hluav taws xob hauv cov chaw tsim hluav taws xob, tshuaj lom neeg kev lag luam, roj av, kev lag luam tshuaj, textile, khoom noj khoom haus, cua sov thiab lwm yam kev lag luam kev lag luam los txiav tawm lossis txuas cov chav dej.

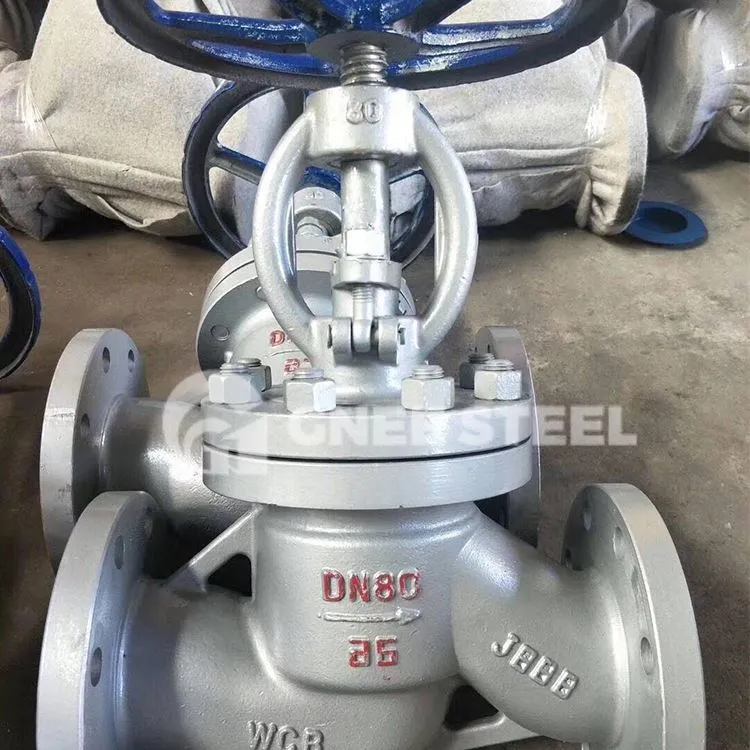

Chav Globe Valve Specification
Nominal Diameter Range: DN50 ~ DN300, NPS2 ~ NPS12;
Nominal Siab Ntau: PN10 ~ PN100, CL150 ~ CL600
Tsim qauv rau BS5160, API600, ANSI B16.34
Xaus kev sib txuas: Flange
Khoom siv lub cev: CF8
Ua haujlwm kub: -196ºC ~ 645ºC.
Ntsej muag ntsej muag rau ANSI B 16.10
Nruab nrab: dej, roj, roj thiab qee cov kua corrosive Etc
Valve Test: 100% zoo kuaj ua ntej xa khoom
Valve Guarantee: 12 lub hlis tom qab teeb tsa / 18 lub hlis tom qab xa khoom lossisValve Delivery: 25 - 30 hnub
Valve Sample: Yog Muaj
Valve Xim: Raws li kev thov lossis API Standard
Pob Valve: Plywood Case rau Globe Valve
MOQ: 1 Pc
Valve Certificate: API 6D, CE1521, ISO9001: 2008
Delivery Detail: Shipped hauv 25-30 hnub tom qab them nyiaj
Chaw nres nkoj: Shanghai, Ningbo, Tianjin
Cov nqe lus them nqi: L / C, T / T
Globe Valves
Cov yam ntxwv tseem ceeb ntawm chav ntiaj teb li qub muaj xws li:
1. Cov qauv tsim: feem ntau yog siv ncaj nraim los yog lub kaum sab xis qauv, nrog lub valve disc (tseem hu ua valve core) nyob rau hauv lub valve, lub zog trajectory ntawm lub valve disc yog axial, thiab nws txuas nrog lub tes tuav los yog actuator los ntawm lub valve. valve qia. Lub sealing nto ntawm lub valve disc yog tsim los ua ib lub dav hlau los yog lub khob hliav qab uas phim lub rooj zaum valve kom muaj kev sib khi zoo.
2. Sealing kev ua tau zoo: Lub sealing kev ua tau zoo ntawm lub qhov cub lub ntiaj teb valve yog qhov tseem ceeb, vim tias cov pa tawm hauv qhov kub thiab siab siab tuaj yeem ua rau lub zog pov tseg, ib puag ncig muaj kuab lom thiab muaj kev nyab xeeb. Qhov zoo tshaj plaws lub ntiaj teb li qub feem ntau yog siv cov khoom siv tawv sealing nto (xws li cladding carbide lossis npib tsib xee-raws li alloy) txhawm rau txhim kho hnav tsis kam thiab kub tsis kam, thiab qee qhov kuj tau nruab nrog lub tshuab sealing tsim kom ua tiav xoom xoom ntawm lub valve qia.
3. Kev xaiv cov khoom siv: Raws li qhov ntsuas kub thiab siab siab cov yam ntxwv ntawm chav, cov khoom tseem ceeb ntawm lub qhov cub lub ntiaj teb valve feem ntau yog xaiv los ntawm kub resistant, corrosion resistant, siab zog cam khwb cia hlau, stainless hlau thiab lwm yam ntaub ntawv los xyuas kom meej tias. nws yuav tsis poob nyob rau hauv lub sij hawm ntev kub thiab kub siab ua hauj lwm tej yam kev mob.
4. Kev ua haujlwm hom: Raws li qhov xav tau, lub qhov cub lub ntiaj teb valve tuaj yeem ua haujlwm manually (los ntawm tes, qib, thiab lwm yam) lossis los ntawm kev tswj tsis siv neeg xws li hluav taws xob thiab pneumatic.
