Forged steel rooj vag li qub yog tsim rau nruab nrab-siab kub thiab nruab nrab-siab siab li qub nrog nominal pressures ntawm 1.6, 2.5, 4.0, 6.4, 10.0, thiab 16.0 MPa thiab nominal diameters ntawm 10 ~ 50mm. Cov xov xwm siv tau yog dej, nitrogen-hydrogen tov roj, urea thiab methylamine kua, thiab lwm yam.
|
Qhov Loj
|
1" rau 1 1/2" |
|
Kev sib txuas
|
ANSI 150 # Flange Xaus Kev Sib Txuas |
|
Tsim thiab Tsim Qauv
|
ASME B16.10 / API 600 / API 602 |
|
Ua Haujlwm Siab
|
150 PSI |
|
Valve Lub cev khoom
|
A105 Forged Steel |
|
Siv tau nruab nrab
|
General Oil, Gas & Dej siv |
|
Qhov kub thiab txias
|
-29 degree rau 425 degree |
Flange Rooj vag Valve Khoom
| P. Tsis muaj. | Lub Npe | Specifications |
|---|---|---|
| 1 | Lub cev | ASTM A105 1 |
| 2 | Rooj Ring | F6a 13% Cr / Stainless hlau ASTM A276 hom 410 |
| 3 | Npuag | F6a 13% Cr / Stainless hlau ASTM A276 hom 410 |
| 4 | Gasket | Spiral Wound Stainless Hlau (Hom 316 Graphite Filled) |
| 5 | Bonnet | ASTM A 105 Cov Lus Qhia Tshwj Xeeb |
| 6 | Studs | ASTM A193 Gr B7 |
| 7 | Ntim | Graphite molded rings nrog braided saum / hauv qab rings |
| 8 | caj pas | A182 F6a 13% Cr / Stainless hlau hom 410 ASTM A276 |
| 9 | Gland Flange | ASTM A105 1 |
| 10 | Txiv ntseej | ASTM A194 Gr. 2 H |
| 11 | Qe | ASTM A276 Hom 410 |
| 12 | Yoke Tsho | ASTM A582 Hom 416 |
| 13 | Tes Log | SG Hlau / Hlau |
| 14 | Tes Wheel Retaining Nut | Carbon Steel |
| 15 | Identification Phaj | Aluminium (anodised) |
Main Technical Parameter:
|
Nquag Siab
|
KUB 150
|
|
Plhaub kuaj
|
3. 0 MPa
|
|
Back Seal Test
|
2.2 MPa siab
|
|
Gas Test
|
0.6 MPa
|
|
Max ua haujlwm kub
|
-29 degree rau 425 degree
|

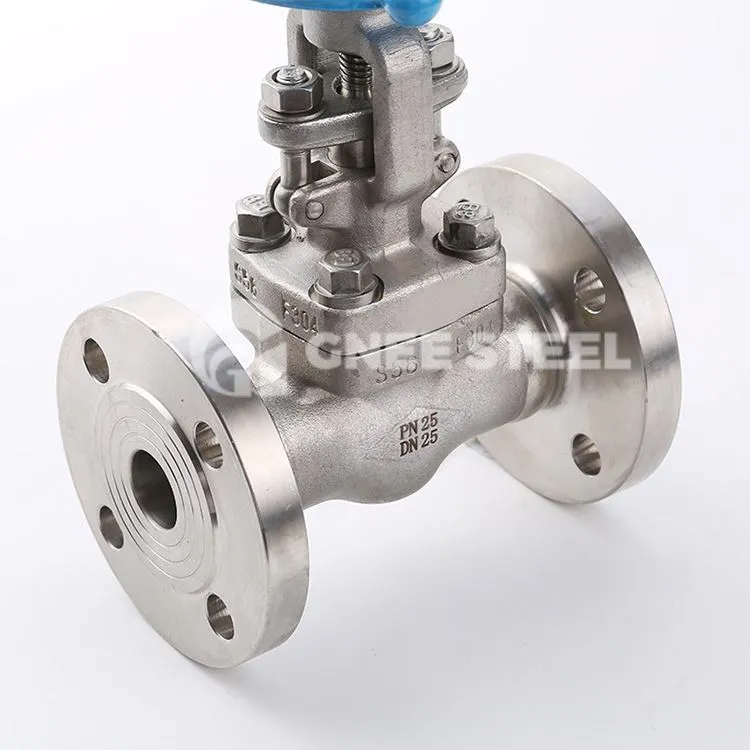

Forged steel rooj vag valve
