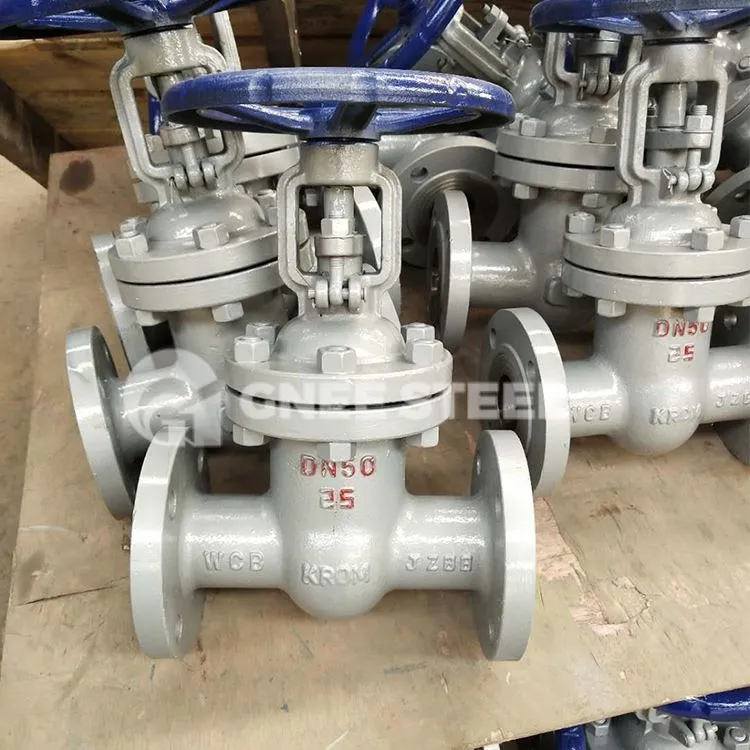

Din Carbon Steel Flange Rooj vag Valve

Cov pa roj carbon steel flange gate valve yog hais txog lub valve uas tus tswv cuab kaw (lub rooj vag phaj) txav mus rau hauv txoj kab ntsug ntawm txoj kab nruab nrab ntawm txoj kab. Lub rooj vag valve tsuas yog siv rau kev qhib thiab kaw tag nrho hauv cov kav dej, thiab tsis tuaj yeem hloov kho lossis throttled.

Carbon steel flange rooj vag valve yog ib hom valve uas tau siv dav. Nws feem ntau yog siv rau kev txiav cov cuab yeej nrog lub cheeb ntawm DN Ntau dua lossis sib npaug li 50mm. Qee lub sij hawm lub rooj vag li qub kuj tau siv rau kev txiav cov cuab yeej nrog lub taub me me. Siv dav hauv kev lag luam petrochemical, kev lag luam teeb pom kev zoo, metallurgy, hluav taws xob tsim hluav taws xob, khoom siv hluav taws xob thiab kev tso dej, papermaking, shipbuilding, tub rog kev lag luam, khoom noj khoom haus, tshuaj, thiab lwm yam. Flange gate li qub feem ntau siv rau cov kav dej siab.

Loj: los ntawm 2 "mus rau 48"

Siab:Qauv: PN6-PN160

Khoom siv:1.0619, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, thiab CF8M

Tsim thiab tsim qauv:DIN 3352, EN 558

Qhov nrug ntawm flanges:DIN3202-F5/F7

Txuas raws li tus qauv:DIN 2543-254, EN1092

Test txuj:API 598, ISO 5208

Kev ua haujlwm:tuaj yeem ua haujlwm nrog qib, iav lub thawv, pneumatic lossis hluav taws xob actuator nrog lub log rau thaum muaj xwm txheej ceev

Nruab nrab:Lub valve yog tsim rau ntau yam xov xwm xws li dej, chav, roj, roj, roj khoom, nitric acid, acetic acid, thiab lwm yam.

Ua haujlwm kub:los ntawm -46ºC los yog -50ºC (stainless steel constructions) thiab -29ºC (carbon steel constructions) mus txog 600 degree

Specifications Thiab Cov Khoom Ntawm Qhov Tseem Ceeb DIN Flange Gate Valve
1	Txuj	DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509, AWWA C515 Flange drilling yog raws li DIN2501, BS4504 thiab ANSI B16.1 PN10, PN16, PN25
2	Hom	Flanged End, Socked End, Mechanical Joint, tsis nce qia, nce qia
3	Lub cev	Hlau hlau GGG40/50 los yog Cam khwb cia hlauGG25
	Npuag	Ductile hlau GGG40/{{1}EPDMNBR lossis hlau zaum
	Qe	Stainless hlau 2Cr13, SS304, SS316
	Bolt thiab txiv ntseej	Carbon Steel nrog zinc; plated los yog SS304,316
4	DN 40-DN600	DN 40-DN600
5	PN10, PN16, PN25	PN10, PN16, PN25
6	Dej, Roj, Roj, thiab lwm yam	Dej, roj, roj, thiab lwm yam
7	Sab hauv thiab sab nraud nrog fusion bonded epoxy txheej min250um	Sab hauv thiab sab nraud nrog fusion bonded epoxy txheej min250um
8	Ntim	Plywood case
