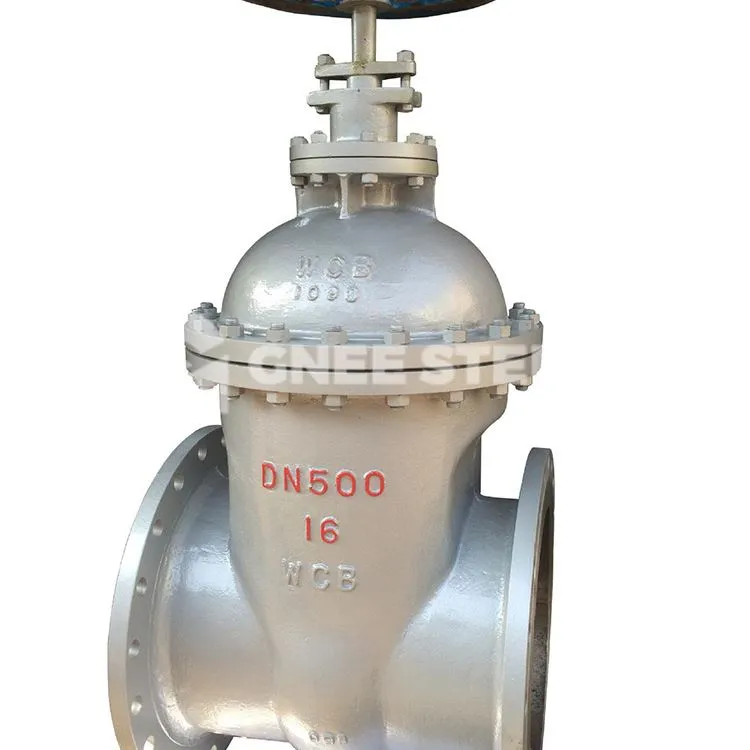

Qhov qhib thiab kaw tus tswv cuab ntawm API 600 cam khwb cia steel rooj vag valve yog lub rooj vag. Cov kev taw qhia txav ntawm lub rooj vag yog perpendicular rau cov kev taw qhia ntawm cov kua. Lub rooj vag valve tsuas yog qhib tag nrho lossis kaw tag nrho; nws tsis tuaj yeem siv rau kev tswj lossis throttling. Lub rooj vag muaj ob qhov chaw sib khi, thiab feem ntau siv hom rooj vag valve muaj ob qhov chaw sib khi ua ib lub voj voog. Lub kaum sab xis sib txawv nrog lub valve tsis, feem ntau nyob ib ncig ntawm 5 degree, tab sis rau nruab nrab kub, nws yog feem ntau 2 degree 52'.
Khoom Specification
| Nominal loj | 2 "~ 48" (DN50 ~ DN1200) |
| Nominal siab | Chav Kawm 150 ~ 2500 (PN10 ~ PN420) |
| Txheem: | API 600, API 603, ASME B16.34, ASME B16.25 |
| Khoom siv lub cev | Carbon steel, Stainless hlau, Alloy hlau, Duplex stainless hlau |
| Xaus kev sib txuas | RF, BW, RTJ, |
| Kev ua haujlwm | Phau ntawv, Pneumatic, Hluav taws xob, Hydraulic |
Daim ntawv teev khoom
| Lub Npe | Cov pa roj carbon steel | Cr-Mo alloy | Tsawg kub carbon steel | Stainless hlau |
| Lub cev | A216 WCB | A217-WC6 | A352-LCB | A351 CWB 8M |
| Bonnet | A216 WCB | A217-WC6 | A352-LCB | A351 CWB 8M |
| Npuag | A216 WCB + CR13 | A217-WC6+HF | A352-LCB+CR13 | A351 CWB 8M |
| Qe | A182-F6a | Cr-Mo-V | A182 -F6a | A439 D-2 |
| Lub rooj zaum | A 105+CR13 | A182-F11+HF | A350-LF2+CR13 | A182 F316L / overlay |
| Stem rov qab rooj | A276-420 | A276-304 | A276-420 | A276 -420 |
| Lub kaus mom gasket | Sprial txhab Graphite+304) | |||
| Bonnet stud | A193-B7 | A193-B16 | A320-L7 | A193 B8 |
| Bonnet stud txiv ntoo | A194-2H | A194-7 | A194-4 | A194 -8 |
| Ntim | Graphite | |||
| caj pas | A276-420 | A276-304 | A276-420 | A276 -316 |
| Lub caj pas flange | A216 WCB | A217-WC6 | A352-LCB | A351 CWB 8M |
| Eyebolt Pin | Cov pa roj carbon steel | A276-420 | Cov pa roj carbon steel | Stainless hlau |
| Qhov muag | Cov pa roj carbon steel | A193-B7 | Cov pa roj carbon steel | A193-B8 |
| Eyebolt txiv ntseej | Cov pa roj carbon steel | A194-2H | Cov pa roj carbon steel | Stainless hlau |
| Roj teeb haum | Brass + Hlau | Stainless hlau | ||
| Yokesleeve | ||||
| Yokesleeve jam nut | Cov pa roj carbon steel | |||
| Handwheel | Malleable hlau | Hlau hlau | ||
| Handwheel txiv ntseej | Cov pa roj carbon steel | |||
API 600 Rooj vag Valve
FAQ
Q: Koj puas tuaj yeem muab cov duab kos rau kev pom zoo?
A: Yog, peb tuaj yeem muab cov duab kos hauv 24 teev.
Q: Koj puas tuaj yeem ua qhov kev sim tsis muaj kev puas tsuaj ntawm cov khoom siv valve?
A: Yog lawm, peb tuaj yeem ua qhov ntsuas hluav taws xob, ntsuas kev nkag mus, ntsuas ultrasonic, ntsuas qhov sib nqus, thiab lwm yam.
Q: Peb puas tuaj yeem kuaj xyuas qhov zoo?
A: Tau kawg. Thov muab tus lej qauv khoom, thiab peb yuav npaj cov qauv hauv 7 hnub.
Q: Koj puas tuaj yeem pab nrog kev saib xyuas ntawm qhov chaw thiab kev ua haujlwm?
A: Yog, peb zoo siab pab thaum twg koj xav tau peb. Peb tuaj yeem xa peb pab pawg tom qab muag los daws cov teeb meem hauv 14 hnub.
