Lub wafer ob-phaj kos valve tuaj yeem txo cov dej rauj vim nws luv luv kaw stroke thiab caij nplooj ntoos hlav loading. Nws yog tsuas yog siv nyob rau hauv lub nroog, industrial, thiab high-sawv vaj tse cov dej thiab cov kav dej. Nws cov qauv luv luv piv rau cov kev kuaj xyuas dav dav ua rau kev teeb tsa yooj yim dua.

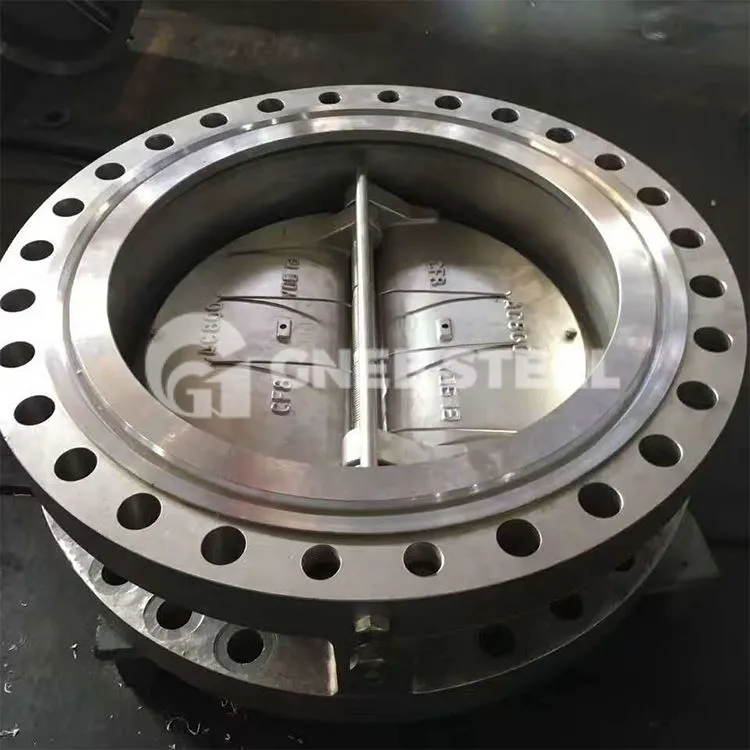

Lub wafer ob-phaj kos valve yog tsim rau cov kav dej hauv ntau qhov kev lag luam, kev tiv thaiv ib puag ncig, kev kho dej, thiab cov dej hauv tsev siab siab thiab cov kav dej. Nws tiv thaiv qhov nruab nrab los ntawm ntws mus rau qhov rov qab. Lub pob valve nta lub pob tw-clamping tsim nrog ob lub voj voos npauj npaim daim hlau thiab lub caij nplooj ntoos hlav-loaded pib dua. Lub sealing nto tuaj yeem ua los ntawm cov ntaub ntawv hnav-tiv taus lossis roj hmab hauv ob sab phlu, muab kev ruaj ntseg sealing ntau yam kev siv.
Dual Phaj Wafer Hom Kos Valve Specification
- Loj: 1.5 "~ 60" (DN{3}} DN1500)
- Kev ntsuas siab rau ASME: 125 # ~ 2500 # Haum Rau ASME / MSS / API Flange
- Kev ntsuas siab rau ISO: PN10 ~ PN40 Haum Rau ISO Flange
- Kev ntsuas siab rau JIS: 5K ~ 20K Suit Rau JIS Flange
- Lwm Flange Standard: BS10 TABLE E / AS2129 TABLE E / AWWA C207
- Khoom siv: CI, DI, WCB, CF8, CF8M, ALBC3, A8904A (MOQ)
- Tsim raws li API 594.
- Kev sib txuas kawg: Wafer, Lugged (TC6, TC9), Flanged (TC4)
Dual Phaj Wafer Check Valves
FAQ
Q: Peb puas txaus siab rau koj cov khoom?
A:Txhawm rau pom zoo cov khoom tsim nyog rau koj, thov muab cov ncauj lus kom ntxaws xws li qhov loj me, cov khoom siv, siab, thiab tus lej qauv.
Q: Koj puas muaj MOQ txwv?
A:Rau qee qhov me me, xws li 2''-48'' (DN50-DN1200), qhov kev txiav txim yam tsawg kawg nkaus yog 50 daim ib qhov loj. Feem ntau, MOQ nyob ntawm koj qhov kev txiav txim.
Q: Lub sijhawm lav yog dab tsi?
A:Lub Hoobkas warranty yog 12 lub hlis. Yog tias muaj teeb meem zoo, peb tuaj yeem kho lossis hloov cov khoom.
Q: Txoj kev them nyiaj yog dab tsi?
A:Peb tsuas yog txais T / T. Cov nqe lus them nqi yog 30% ua ntej thiab qhov seem 70% ua ntej xa khoom lossis nrog daim qauv ntawm BL.
Q: Koj puas tuaj yeem tsim cov qauv sib txawv raws li cov neeg siv khoom xav tau?
A:Yog lawm, peb tuaj yeem tsim API, DIN, thiab GOST tus qauv li qub nrog ntau yam kev kub ntxhov, kub, thiab qhov ntau thiab tsawg raws li koj xav tau.
Cim npe nrov: Tuam Tshoj dual phaj wafer check valve manufacturers, lwm tus neeg, Hoobkas
