Lub valve qia axis deviates los ntawm ob qho tib si hauv nruab nrab ntawm lub disc thiab qhov nruab nrab ntawm lub cev, thiab lub axis ntawm lub rooj zaum lub rooj sib hloov yog nyob ntawm lub kaum sab xis ntawm lub axis ntawm lub valve lub cev channel. Qhov kev teeb tsa no yog hu ua peb-eccentric npauj npaim valve. Qhov nruab nrab ntawm kev sib hloov ntawm lub valve phaj (piv txwv li, lub valve axis center) yog offset los ntawm kev ncua deb A los ntawm lub valve phaj sealing seem thiab nyob deb B los ntawm qhov chaw ntawm lub valve lub cev. Tsis tas li ntawd, qhov nruab nrab ntawm lub valve lub cev sealing nto thiab qhov chaw nruab nrab ntawm lub rooj zaum valve (piv txwv li, lub valve lub cev centerline) tsim ib qho angular offset ntawm . Txhawm rau daws cov teeb meem cuam tshuam nrog ob-eccentric npauj npaim valve, npauj npaim valve suav nrog qhov thib peb eccentricity. Nyob rau hauv qhov tsim no, thaum lub valve qia axis tseem eccentric, lub conical axis ntawm npauj npaim phaj lub sealing nto yog hloov mus rau lub cev cylindrical axis. Yog li ntawd, tom qab lub thib peb eccentricity yog thov, lub sealing seem ntawm npauj npaim phaj tsis yog ib tug tseeb lub voj voog tab sis ib tug ellipse. Qhov no tshwm sim nyob rau hauv ib qho asymmetric sealing nto, nrog ib sab angled ntawm lub cev centerline thiab lwm sab mus rau nws.
Khoom Specification
| Loj | DN 25-DN2000 |
| Ntsej muag ntsej muag | API609, BS5155, DIN3202, ISO5752, JIS F7480, API594 thiab lwm yam |
| Kev sib txuas Flange | PN6/PN10/PN16/PN25/JIS5K/10K/16K/150LB/AS2129 Table D/E |
| Mounting Flange | ISO 5211 |
| Ua Haujlwm Siab | PN10/PN16/PN25 |
| Daim ntawv thov | Dej ntshiab, dej hiav txwv, roj, roj, kua qaub, khoom noj, chav |
| Daim ntawv thov kub | -210~250 ºC |
| Kuaj Siab | 1.1 Mpa, 1.8 Mpa, 27.5 Mpa |
| Hom Lub Rooj | Mos Back / Hard Back / Vulcanized |
| Kev twb kev txuas Qhov No. | 2/4 Qhov |
| Hom Lub Cev | 1/2 Daim |

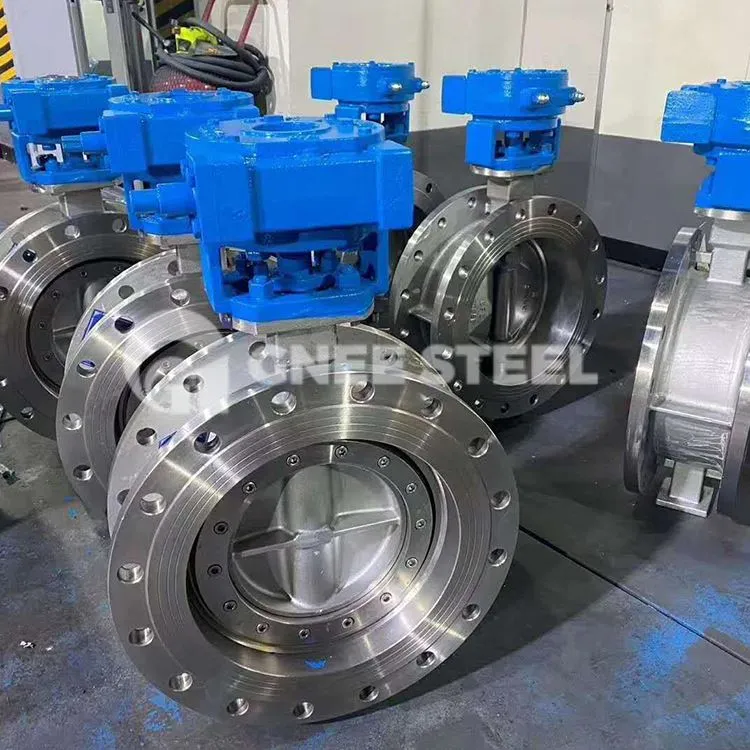

Peb Eccentric Npauj Npaim Valve
FAQ
Q: Koj puas yog cov chaw tsim khoom lossis cov chaw muag khoom?
A:Peb yog cov chaw tsim khoom valve nrog 16 xyoo ntawm kev paub txog kev txhim kho valve, tsim, tsim, thiab muag khoom.
Q: Puas yog cov khoom tiav lossis tuaj yeem kho tau?
A:Peb kho cov kws tshaj lij li qub raws li koj qhov kev xav tau, kos duab, tsis muaj, thiab lwm yam kev qhia tshwj xeeb.
Q: Koj cov nqe lus them nqi yog dab tsi?
A:Hoobkas nqi, FOB.
Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A:10 daim rau ib qho qauv rau lub taub me me li qub thiab 1 daim rau ib qho qauv rau cov kab loj loj li qub. Yog tias koj muaj cov cai tshwj xeeb, thov hu rau peb.
Q: Cov nqe lus them nqi yog dab tsi?
A:T / T lossis L / C.
