Sab saum toj nkag pob li qub feem ntau muaj lub cev valve thiab sab laug thiab sab xis txuas lub cev. Lub cev txuas thiab lub cev valve yog txuas nrog bolts. Lub thickness ntawm qhov txuas flange thiab qhov sib txuas lub zog ntawm cov bolts yuav tsum tau tsim ua piv txwv rau flange nrog tib txoj kab uas hla raws li lub cev valve. Lub zog sib txuas yuav tsum tiv thaiv cov yeeb nkab los ntawm loosening qhov kev sib txuas thiab ua rau lub foob tsis ua haujlwm. Lub cev lub cev thiab lub cev sib txuas yog nyob rau ntawm lub ntsej muag sib cuag nrog tsis muaj qhov sib txawv ntawm qhov sib txawv. Lub foob yuav tsum ua kom tau raws li qhov yuav tsum tau muaj kev nyab xeeb hluav taws thiab siv cov roj hmab "O" lub nplhaib thiab qhov txhab hlau gasket. Txawm li cas los xij, nrog txoj kev loj hlob sai ntawm tag nrho welded valve lub cev thev naus laus zis hauv xyoo tas los no, nws tau maj mam hloov cov qauv sib cais nrog txoj kev pheej hmoo ntawm to.
Qhov Loj: 2 "- 36"
Rating: 150 # rau 2500 #
Xaus: Flanged RF, RTJ, BW, Hub Xaus Kev Sib Txuas
Full Bore / Txo Bore
Lub rooj zaum
Antistatic thiab anti tshuab tawm qia tsim
Daim di ncauj tsim
Daim ntawv thov Cryogenic thaum thov
Kev Ua Haujlwm: Qib, Iav, Pneumatic lossis Hluav Taws Xob Actuator
Sab saum toj-mounted Pob Valves Specifications:
|
Tsim Ntsej muag ntsej muag Thaum kawg Xaus Flange BW End Kuaj Kev Ntsuas Hluav Taws Xob Tshwj xeeb |
ASME B16.34 / API 6D ASME B16.10 / API 6D ASME B16.10 / API 6D ASME B16.5 ASME B16.25 API 6D UAS API 607/API 6FA NACE MR-01-75 |
|
NTAUB NTAWVRAU TOP ENTRY BALL VALVES |
|
|
Kev ntsuas siab thiab qhov loj: |
PN10 rau PN25, ANSI Class150 txog 1500 |
|
DN50 rau DN600 |
|
|
2"~24" |
|
|
50A~600A |
|
|
Khoom siv: |
Lub cev: WCB, CF8, CF8M, LCB, LCC |
|
Lub cev muaj zog: WCB, CF8, CF8M, LCB, LCC |
|
|
Pob: A105, SS304, SS316 |
|
|
Qauv: F6a, SS304, SS316 |
|
|
Rooj zaum: Devlon, EPDM, Hlau, Viton, PTFE, NBR |
|
|
Cov khoom tshwj xeeb ntawm kev thov. |
|
|
Ua haujlwm hom |
Qib, Pneumatic, Iav, Hluav Taws Xob, Pem Hauv Ntej, thiab lwm yam. |
|
Qauv: |
Sab saum toj nkag |
|
Flange kev twb kev txuas: |
EN1092 & ANSI B16.5 & JIS |
|
Hom |
Flange RF, RTJ |
|
Qhov siab tshaj plaws ua haujlwm kub: |
Nitrile: 80 degree |

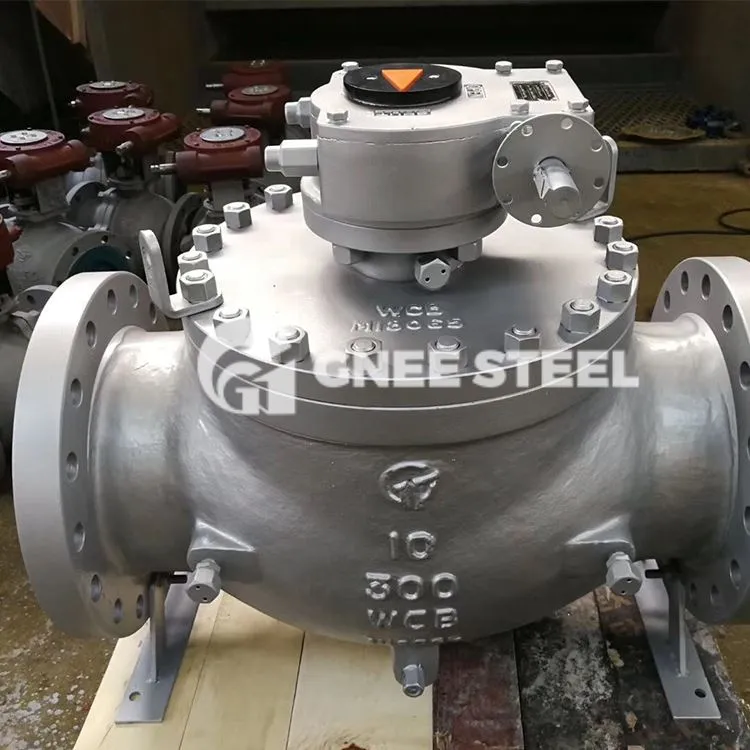

Sab saum toj nkag Floating Pob Valve
