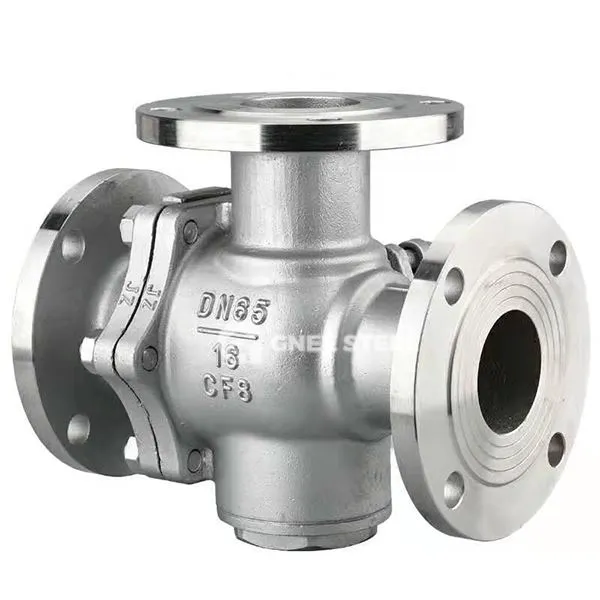

SS peb txoj kev pob valve

Lub stainless hlau peb-txoj kev pob valve yog cov raj xa hluav taws xob nrog cov hlau qub (xws li 304, 316L, thiab lwm yam) raws li cov khoom siv tseem ceeb. Cov pob tuaj yeem hloov tau 90 degree kom ua tiav qhov kev sib txawv, sib xyaw los yog hloov ntawm cov kev coj nruab nrab. Nws cov qauv txheej txheem cov qauv muaj xws li:

Flow Channel Tsim:
L-hom Flow channel: paub txoj cai-lub hloov hloov ntawm nruab nrab ntws kev (xws li inlet → Qhov Hluav Taws Xob A / B Hloov);
T-hom Flow channel: Txhawb peb txoj kev nruab nrab nruab nrab lossis sib xyaw ua ke, haum rau cov txheej txheem tswj.
Sealing System:
Cov foob muag muag (PTFE / EPDM valve lub rooj): Ua tiav xoom ntaub, muaj qhov kub {{0} degree;
Hlau Zog Foob (xws li tungsten carbide txheej): withstand kev ua haujlwm hnyav ntawm -196-450 degree.

Qhov Zoo
Corrosion Kuj:
304 Stainless hlau yog tsim nyog rau kev ua kom haum corrosive (xws li cov kua qaub tsis muaj zog, dej vapor);
316L stainless hlau muaj molybdenum muaj molybdenum, thiab nws tsis kam mus rau chloride ion corrosion yog nce los ntawm {1}} lub sij hawm, haum rau seawater thiab muaj zog kua qaub.
Cov yam ntxwv ua kua:
Cov Khoom Taw Qhia Puv-Bore txo qis ntws tawm, ntws ua haujlwm ntau dua lossis sib npaug ntawm 99%;
Nto polishing (ra tsawg dua lossis sib npaug rau 0. 8 μm) ntsib cov qauv kev nyiam noj haus.
Kev ua hauj lwm yooj yim:
90 Degree Degree qhib thiab kaw, torque tsawg dua los yog sib npaug rau 20 Nake (hauv qab no DN50);
Txhawb phau ntawv txhawb nqa, kev tswj hwm hluav taws xob lossis kev tswj hwm pneumatic, lub sijhawm teb tsawg dua lossis sib luag rau 2 vib nas this (pneumatic hom).



SS peb txoj kev pob valve



Cov Ntawv Thov
Tshuaj Yeeb Nkab Kev Tswj: Lwm cov kua qaub thiab Alkali Medical thauj mus los hauv reactors (xws li 98% concentrated sulfuric acid thiab 32% kua alkali); Kev hloov pauv thiab kev sib xyaw tswj ntawm kev kho kom muaj dej ntau dua.
Kev tiv thaiv lub zog thiab ib puag ncig: cua txias dej faib tawm cov kab ke ntawm cov ntoo hluav taws xob nuclear; High-salinity media tswj cov dej hiav txwv dej hiav txwv Wealination khoom siv.
Khoom noj khoom haus thiab cov khoom noj: kev thauj khoom huv si ntawm cov kua dej tsis huv (cov khoom noj siv mis, cov khoom siv roj raw).
Xaiv thiab Txhim Kho Cov Ntsiab Lus
Cov Khoom Siv Xaiv: 316L Khoom Siv + Ceramic Txheej Valve Lub Rooj yog qhov zoo dua nyob rau hauv ib puag ncig corrosive heev; Hlau lub qhov hluav taws xob foob pob zeb yog qhov yuav tsum muaj rau cov kav dej kub (> 200 degree).
Txoj kev sib txuas: xov txuas txuas (dn {15- dn50): Yooj yim installation, haum rau cov kav dej me; Flange kev sib txuas (dn {{{{2} dn300) qib DN300)
Cov ntsiab lus tshwj xeeb:
Kab rov tav kev teeb tsa thiab kev cia siab 90 degree kev khiav haujlwm ntawm qhov chaw rau lub valve kov;
Threaded interfaces yuav tsum tau qhwv nrog daim kab xev raw + sealant, thiab flange sib txuas siv gaskecite;
Tom qab kev teeb tsa, 1.5 lub sij hawm ua haujlwm ntsuas yog qhov yuav tsum tau ua, thiab lub siab yuav tsum tau tswj hwm rau 10 feeb yam tsis muaj tshuaj txhuam.
