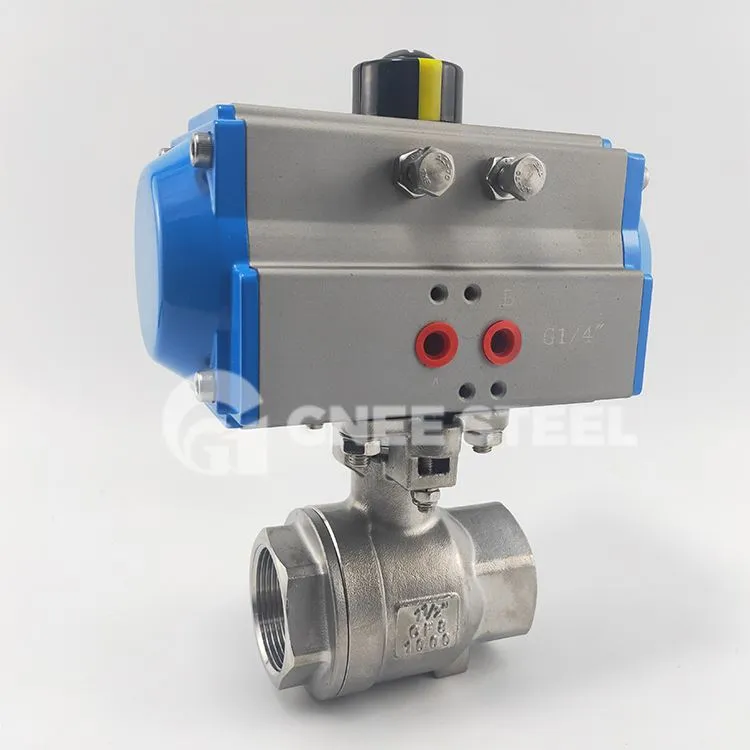

Pneumatic sab hauv xov pob valve muaj ob (lossis ib leeg) ua yeeb yam pneumatic piston actuator thiab ib qho xov hauv pob valve. Lub cev valve tuaj yeem muab faib ua ib qho, ob-thooj, lossis peb-thooj hom. Lub rooj zaum valve txais cov qauv kev sib khi elastic rau kev ruaj ntseg sealing thiab yooj yim qhib thiab kaw. Lub qia valve siv cov qauv qis-loaded nrog inverted sealing los tiv thaiv kev cuam tshuam thaum lub sij hawm txawv txav hauv lub valve kab noj hniav. Lub pneumatic actuator ntiav cov ntaub ntawv tsis tshua muaj kev sib txhuam rau lub tes tsho bearing, thiab sab hauv thiab sab nrauv ntawm lub tog raj kheej lub cev tau txais kev kho mob nyuaj anodized los tiv thaiv corrosion, cuam tshuam rau lub tog raj kheej txoj kev pab cuam lub neej. Cov khoom no muaj kev ua haujlwm ruaj khov thiab pom cov ntawv thov dav hauv cov haujlwm xws li petrochemicals, metallurgy, hluav taws xob fais fab, lub teeb kev lag luam, tshuaj, thiab lwm yam.
Pneumatic pob valve threaded kawg Specification
|
Nominal txoj kab uas hla DN |
DN 10-DN100, 1/2'' -4'' |
|
Nominal siab (MPa) |
PN1.6, 2.5, 4.0 , 6.4 MPa |
|
Valve lub cev daim ntawv |
Peb-thooj peev-cam khwb cia valve lub cev thiab ob-thooj peev-cam khwb cia valve lub cev |
|
Hom kev sib txuas |
Sab nraud xov, BSP, NPT, |
|
Cov ntsaws ruaj ruaj |
"O" spherical rings |
|
Flow yam ntxwv |
Kwv yees ceev-qhib hom |
|
Ntau yam ntawm kev txav |
0 -90 degree |
|
Seat Leakage |
Raws li ANSI B16.104, tsawg dua 0.01% ntawm cov ntsuas KV (mos foob: xoom xau) |
|
Basic yuam kev |
Nrog positioner: tsawg dua ± 2% ntawm tag nrho stroke |
|
Rov qab |
Nrog positioner: tsawg dua 2% ntawm tag nrho cov hlab ntsha tawg |
|
tswj txoj kev |
Ob txoj hauj lwm hloov tswj, 4-20mA tawm tswv yim tswj |
|
Tus qauv actuator |
AT, AW series ib leeg thiab ob chav ua yeeb yam pneumatic actuators |
|
Cov khoom siv siab |
0 4 -0.7MPa |
|
Air Source interface |
G1/4" , G1/8" , G3/8" , G1/2" |
|
Ambient kub |
-30 -+70 degree |
|
Daim ntawv ntawm kev ua |
Ib leeg-ua yeeb yam actuators: cua-kaw (B) -valve txoj hauj lwm qhib (FO) thaum degassed; air-opened (K) -valve txoj hauj lwm kaw (FC) thaum degassed |
|
Ob chav actuators: cua-kaw hom (B) -valve txoj hauj lwm txij nkawm (FL) thaum degassed; cua-qhib hom (K) -valve txoj hauj lwm txij nkawm (FL) thaum degassed |
