PTFE lined pob li qub, tseem hu ua fluoroplastic lined corrosion-resistant pob li qub, yog tsim los ntawm PTFE resin (los yog profiles ua tiav) thiab molding (los yog inlay) txoj kev nyob rau hauv lub puab phab ntsa ntawm cov hlau los yog hlau pob valve lub bearing qhov chaw (tib yam. txoj kev siv rau txhua yam ntawm cov hlab ntsha siab thiab cov kav dej hauv ob sab phlu) los yog nyob rau sab nrauv ntawm lub valve sab hauv. Qhov no siv cov khoom tshwj xeeb ntawm PTFE hauv kev tawm tsam muaj zog corrosive media los tsim cov li qub.
Khoom Specification
| Nominal loj | 1/2 "~ 10" (DN25 ~ DN250) |
| Nominal siab | Chav Kawm 150- CL300 (PN6 ~ PN40) |
| Txheem: | ASME B16.34 |
| Khoom siv lub cev | Carbon steel, Stainless hlau, Duplex stainless hlau |
| Xaus kev sib txuas | Flanged |
| Kev ua haujlwm | ob leeg ua yeeb yam, ib leeg ua yeeb yam |
| Khoom Loj | L | A | H1 | H | A | E | F | J |
| DN08 | 75 | 110 | 43 | 108 | 110 | 22.5 | 22.5 | 45 |
| DN10 | 75 | 110 | 43 | 108 | 110 | 22.5 | 22.5 | 45 |
| DN15 | 75 | 140.5 | 43 | 108 | 140.5 | 29 | 41.5 | 69 |
| DN 20 | 80 | 140.5 | 50 | 139 | 140.5 | 29 | 41.5 | 69 |
| DN 25 | 90 | 140.5 | 58 | 139 | 140.5 | 29 | 41.5 | 69 |
| DN 32 | 110 | 158.5 | 63 | 168 | 158.5 | 36 | 47 | 85 |
| DN40 | 120 | 158.5 | 74.5 | 179.5 | 158.5 | 36 | 47 | 85 |
| DN 50 | 140 | 210.5 | 85 | 207 | 210.5 | 42.5 | 52 | 102 |
| DN 65 | 185 | 247.5 | 101 | 236 | 247.5 | 49.5 | 56.8 | 115 |
| DN 80 | 205 | 268.5 | 111 | 258 | 268.5 | 56 | 67 | 127 |
| DN100 | 240 | 345 | 131 | 318 | 345 | 69.5 | 82 | 157 |

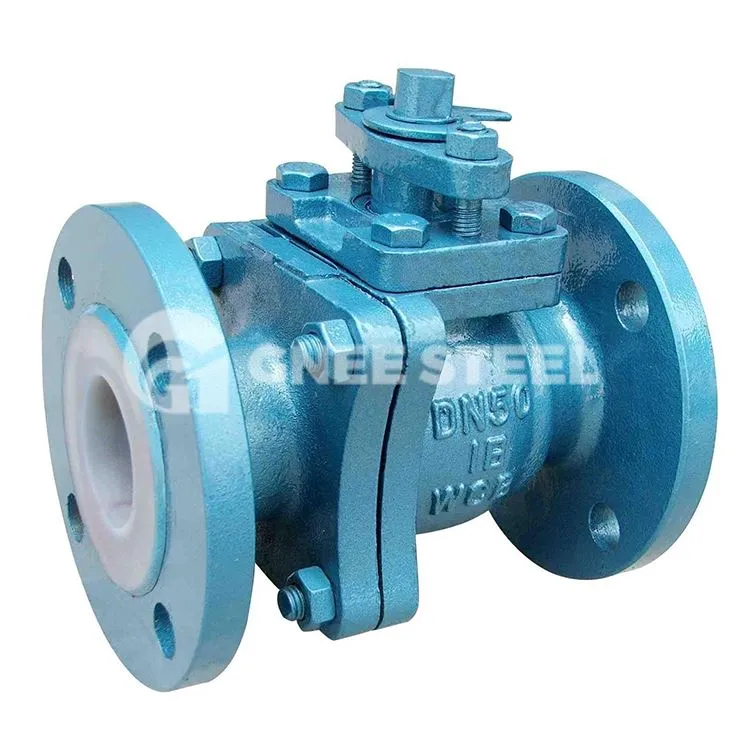

PTFE Lined Pob Valve
FAQ
Q: Koj puas tuaj yeem muab cov kev pabcuam tshwj xeeb rau cov li qub?
A:Yog lawm, peb muab cov kev pabcuam customization kom tau raws li qhov project tshwj xeeb. Peb pab neeg ua haujlwm engineering tuaj yeem ua haujlwm nrog koj los tsim thiab tsim cov li qub rau koj qhov tshwj xeeb tshwj xeeb.
Q: Koj puas muaj cov txheej txheem kev pov hwm zoo li cas?
A:Peb muaj kev tswj xyuas nruj heev nyob rau hauv qhov chaw. Peb cov li qub tau sim nruj me ntsis thoob plaws hauv cov txheej txheem tsim khoom kom ua raws li cov qauv kev lag luam thiab cov neeg siv khoom xav tau. Peb tau cog lus los muab cov khoom lag luam zoo.
Q: Koj lub li qub puas ua tau raws li cov qauv thoob ntiaj teb?
A:Yog lawm, peb tsim thiab tsim peb li qub kom tau raws li cov qauv thoob ntiaj teb xws li API, ANSI, ISO, thiab lwm yam kev lag luam cov lej. Peb muab qhov tseem ceeb ntawm kev ua raws cai thiab ua raws li cov qauv zoo tshaj plaws.
Q: Dab tsi yog lub sij hawm txhuas txhuas rau kev txiav txim valve?
A:Lub sij hawm txhuas rau kev txiav txim valve tuaj yeem sib txawv nyob ntawm seb yam xws li hom valve, kom muaj nuj nqis, thiab kev xav tau kev cai. Peb mob siab rau muab cov sijhawm kwv yees raug coj mus kuaj thaum lub sijhawm cov txheej txheem hais kom ua tiav raws sijhawm.
Q: Koj puas muab kev pabcuam thiab kev pabcuam tomqab muag?
A:kiag li. Peb muab kev txhawb nqa dav dav, suav nrog kev pab cuam nrog kev xaiv valve, kev taw qhia kev teeb tsa, thiab kev daws teeb meem. Peb kuj muab kev pab cuam tom qab muag, suav nrog cov khoom seem thiab kev txhawb nqa.
Cim npe nrov: Tuam Tshoj ptfe lined pob valve manufacturers, lwm tus neeg, Hoobkas
