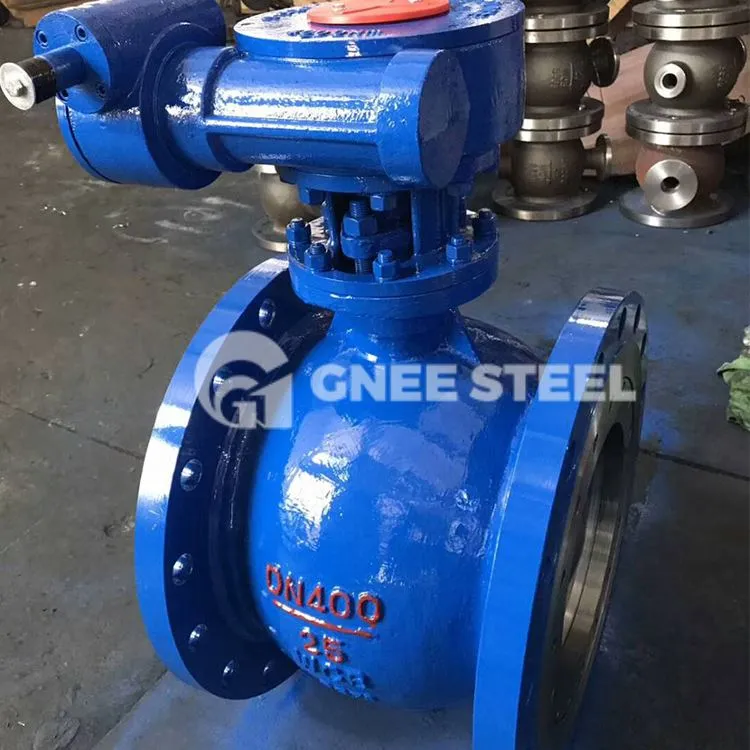

Cam khwb cia hlau pob Valve

Cam khwb cia hlau pob li qub siv cov txheej txheem tsim cov txheej txheem, xyuas kom nruj sib khi ntawm lub rooj zaum thiab disc los ntawm kev ua haujlwm zoo. Qhov no muaj peev xwm ua tau zoo tiv thaiv cov kua dej. Tsis tas li ntawd, cam khwb cia hlau pob li qub tuaj yeem txhim kho kev ua tau zoo ntawm kev sib khi ntxiv los ntawm kev sib koom ua ke sealing fillers, kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm cov kua dej.

Cam khwb cia hlau pob li qub Specification

Qhov Loj:

Loj: DN15 txog DN200

Xaus: ISO PN10/16 Flanges

Specifications:

Cam khwb cia hlau pob valve: Min Kub: -10 degree

Cam khwb cia hlau pob valve: Max kub: + 200 degree

Max Siab: 16 Bars

Specifications: Tag nrho bore

Stainless hlau pob mus txog DN 25, hollow pob los ntawm DN 32 txog DN 200

ISO 5211 mounting ncoo

Khoom siv:

Lub cev: Cam khwb cia hlau lub cev - Cam khwb cia hlau EN GJL-250

Sphere: Stainless Sphere - SS304

Ntiv nplhaib nrog PTFE nplhaib thiab O-ring FKM

Axis tshuab tawm pov thawj tag nrho bore Nrog qhov sib txawv DIN 3202

Txheej: Dub xim xim RAL 9004 5-15 microns thickness

Qhov zoo ntawm cam khwb cia hlau pob li qub muaj xws li:

1. Tsis tshua muaj dej tsis kam: Tag nrho cov pob valve muaj qhov ua haujlwm tsawg tsawg.
2. Cov qauv yooj yim, compact loj, lub teeb yuag.
3. Kev ruaj ntseg thiab txhim khu kev qha: Lawv muaj ob qhov chaw sib khi, feem ntau ua los ntawm ntau yam yas rau kev ua tau zoo sealing, ua tiav kev sealing tiav. Lawv tau siv dav hauv lub tshuab nqus tsev.
4. Kev ua haujlwm yooj yim: qhib thiab kaw nrawm nrog 90 degree kev sib hloov, yooj yim rau kev tswj chaw taws teeb.
5. Kev tu yooj yim: Cov qauv yooj yim nrog cov nplhaib sib khi feem ntau txav tau, ua rau kev tshem tawm thiab hloov tau yooj yim.
6. Kev sib cais ntawm Sealing Surfaces: Thaum qhib lossis kaw tag nrho, lub pob thiab lub rooj zaum lub rooj sib khi yog cais tawm ntawm qhov nruab nrab, tiv thaiv kev yaig thaum lub sijhawm cov dej nkag.
7. Daim ntawv thov dav: Muaj nyob rau hauv diameters li ntawm millimeters mus rau meters, haum rau cov ntawv thov los ntawm lub tshuab nqus tsev mus rau qhov siab.
8. Haum rau Media nrog Suspended Solids: Vim lawv qhov kev ua haujlwm so thaum lub sijhawm ua haujlwm, lawv tuaj yeem siv nrog cov xov xwm uas muaj cov khoom raug tshem tawm.
