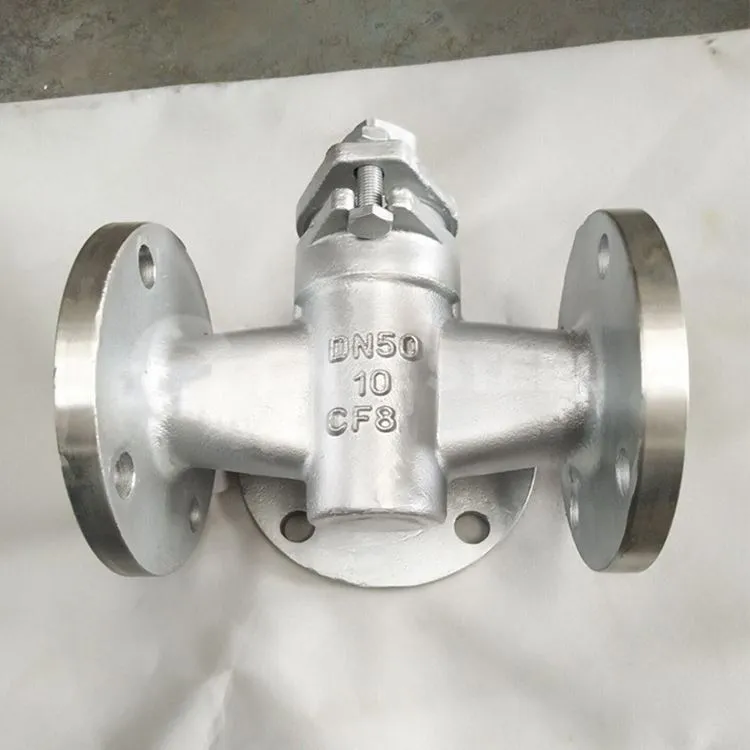

Cam khwb cia hlau peb-txoj kev ntsaws valve yog cov neeg kaw lossis lub plunger-shaped rotary valve, los ntawm kev tig 90 degrees kom qhov chaw nres nkoj ntawm lub ntsaws thiab qhov chaw nres nkoj ntawm lub valve lub cev yog tib yam lossis cais, kom paub qhov qhib lossis kaw. ntawm ib lub valve. Plug li qub yog dav siv nyob rau hauv oilfield extraction, tsheb thauj mus los thiab refining khoom, raws li zoo raws li nyob rau hauv petrochemical, tshuaj, roj, natural gas, liquefied petroleum gas, HVAC kev lag luam thiab kev lag luam.
3 Txoj Kev Plug Valve Specification
Loj: 1/2 "-24"
Kev sib txuas: RF / RTJ Flange, Butt Welded
Kev ntsuas siab: Chav kawm 150LB ~ 900LB
Khoom siv: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Kev khiav hauj lwm hom: Lever, Pneumatic, Electric
Daim ntawv pov thawj: ISO9001, API6D, CE0036
Guarantee: 18 hli; Kev pab OEM
Haum nruab nrab: Dej, roj, roj
Khoom siv:
Cov pa roj carbon steel |
A216 Gr.WCB, WCC, WCA, thiab lwm yam |
| Tsawg kub steel | A352 Gr.LCB, LCC, LC1, thiab lwm yam |
| Cr-Mo steel | A217 Gr.WC6, WC9, C5, C12, C12A, thiab lwm yam |
| Stainless hlau | A351 Gr.CF8, CF8M, CF3, CF3M, CF8C, thiab lwm yam |
| Hlau alloy | CN7M alloy 20, CN3M alloy 20 hloov, CT15C, thiab lwm yam |
| Super duplex | A995 Gr.4A, 5A, CE8MN, CD6MN, CD3MN, thiab lwm yam |
| Aluminium bronze | B148 C95500, C95600, C95800, thiab lwm yam |
| Monel | M30C, M35-1, CZ100, thiab lwm yam |
| Inconel | CY40 inconel 600, thiab lwm yam |
| Hastelloy | CW2m Hastelloy C4, N12MV Hastelloy B, CW12MW Hastelloy C276, thiab lwm yam |
| Incoloy | CU5MCuC Incoloy 825, CW6MC Incoloy 625, thiab lwm yam |
Peb Txoj Kev Plug Valve
FAQ
Q: Puas yog cov khoom tiav lossis tuaj yeem kho tau?
A: Peb kho cov kws tshaj lij li qub uas koj xav tau raws li koj qhov kev xav tau, kos duab, tsis muaj thiab lwm yam.
Q: Koj tus nqi yog dab tsi?
A: Ex-ua haujlwm, FOB.
Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A: 10pcs / qauv rau lub taub me me li qub, 1pc / qauv rau cov kab loj loj li qub, yog tias koj muaj kev tshwj xeeb, thov hu rau peb.
Q: Txoj kev them nyiaj yog dab tsi?
A: T / T lossis L / C
Q: Koj puas tuaj yeem ua qhov kev sim tsis muaj kev puas tsuaj ntawm cov khoom siv valve?
A: Yog lawm, peb tuaj yeem ua qhov ntsuas hluav taws xob, ntsuas kev nkag mus, ntsuas ultrasonic, ntsuas qhov sib nqus, thiab lwm yam.
Q: Peb puas tuaj yeem kuaj xyuas qhov zoo?
A: Tau kawg peb tuaj yeem ua tau. Koj tuaj yeem muab tus lej qauv khoom thiab peb yuav npaj cov qauv hauv 7 hnub.
