API 6D, hu ua "Specification for Pipeline and Piping Valves," yog tsim tshwj xeeb rau cov midstream sector -pipelines uas thauj cov roj thiab roj mus ntev. Thaum muaj coob tus neeg koom nrog API 6D nrog loj, trunnion-mounted pob li qub siv nyob rau hauv compressor chaw nres tsheb, tus qauv kuj muaj xws li specifications raufloating pob li qub.
Kev daws teeb meem rau API 6D Floating Ball Valves -Tau txais Cov Lus Qhia Txuj Ci hauv 24 Teev.
API 6D ntab pob valveTechnical Specifications
| Tsim qauv | API 6D / ISO 14313 Daim Ntawv Pov Thawj |
| Kev ntsuas siab | Chav Kawm 150, 300, 600 (Class 900+ muaj raws li thov) |
| Qhov Loj | NPS 2 "~ NPS 6" (Standard for Floating Design in Pipelines) |
| Ntsej muag -rau-Face (F-F) | ASME B16.10 / API 6D |
| Flange kev twb kev txuas | ASME B16.5 (RF - tsa ntsej muag, RTJ - Nplhaib hom Joint) |
| Butt-Kev sib txuas | ASME B16.25 (BW) |
| Fire Safe Design | API 607 / API 6FA Certified |
| Kev nyab xeeb nta | Anti-Tsev Ntaus Ntaus & Tshuab Tshuab- tawm pov thawj Stem (Standard) |
| Cavity Relief | Tus kheej -relieving Rooj (Tsis siv neeg kab noj hniav nyem nyem) |
| Khoom siv (lub cev) | Carbon hlau (A105, WCB, LCC), Stainless hlau (F316, CF8M), Alloy hlau |
Dimensional Data rau API 6D Floating Ball Valves
Chav Kawm 150 (PN 20)
| Nominal Pipe Loj (NPS) | DN (hli) | RF/BW (F-F) | RTJ (F-F) | Kwv yees li. Qhov hnyav (kg) |
| 2" | 50 | 178 | 191 | 18 |
| 2-1/2" | 65 | 191 | 203 | 25 |
| 3" | 80 | 203 | 216 | 32 |
| 4" | 100 | 229 | 241 | 55 |
| 6" | 150 | 394 | 406 | 95 |
Chav Kawm 300 (PN 50)
| Nominal Pipe Loj (NPS) | DN (hli) | RF/BW (F-F) | RTJ (F-F) | Kwv yees li. Qhov hnyav (kg) |
| 2" | 50 | 216 | 232 | 22 |
| 2-1/2" | 65 | 241 | 257 | 31 |
| 3" | 80 | 283 | 298 | 48 |
| 4" | 100 | 305 | 321 | 78 |
| 6" | 150 | 403 | 419 | 135 |
Soft Seat vs Hlau Seat Sib piv rau API 6D Floating Ball Valves
| Nta | Lub Rooj Zaum | Hlau Rooj |
| Cov khoom siv sealing | PTFE, RPTFE, Devlon, Nylon, PEEK | Stellite Overlay, Tungsten Carbide Txheej (TCC), Chromium Carbide Txheej (CCC) |
| Leakage Class | Xoom Leakage/ Bubble Tight (ANSI Chav Kawm VI) | Feem ntauANSI Class V lossis VI(Nyob ntawm lapping precision) |
| Qhov kub thiab txias | -29℃txog 200℃(Cov khoom nyob ntawm; PEEK tuaj yeem siab dua) | -196℃rau 500℃+(Nyob rau qhov kub thiab txias txias) |
| Siv tau Media | Clean gas, dej, roj khoom (Particle-dawb) | Sandy media, khoom hais, slurry, thiab siab - kua viscosity |
| Ua haujlwm Torque | Tsawg; smooth qhib thiab kaw | Siab dua (Vim yog hlau tseem ceeb-rau- hlau txhuam) |
| Hnav Resistance | pluag; yooj yim khawb los ntawm impurities, ua rau xau | Zoo heev; heev resistant rau erosion thiab abrasion |
| Kev Pabcuam Lub Neej | luv luv; seals yuav tsum tau hloov raws sij hawm | Ntev heev; haum rau kev pabcuam hnyav thiab nquag mus |
| Nqi | Nqi -zoo / Economic | kim (Yuav tsum tau precision lapping thiab nyuaj heev-fab cov txheej txheem) |
| Cov ntawv thov siv | Natural gas kis tau tus mob, lub nroog gas networks, ambient kub roj | Roj Crude roj (xiav), refinery coking, blowdown / dej phwj, thiab siab -siab zog |
GNEE API 6D Floating Ball Valve Rhiav

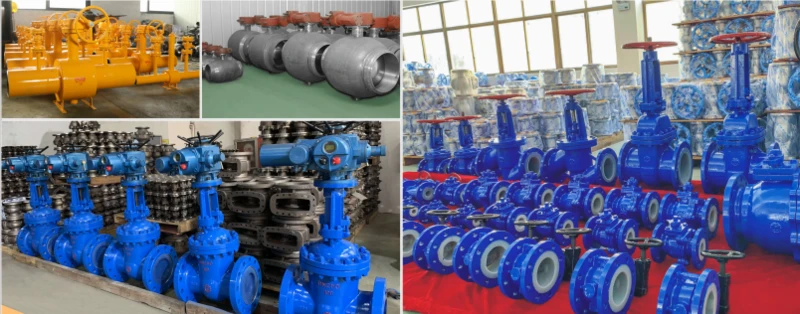

Npaj-rau-Ship API 6D Floating Ball Valves – Tshuag muaj rau kev xa khoom thoob ntiaj teb tam sim.
FAQ
Dab tsi yog qhov txawv ntawm API 6D 24th edition thiab 25th edition?
25th tsab xav kom cov actuators ua raws li API 6DX. Hauv 24th tsab, tsuas yog API 6DX cov cai rau sizing tus actuator yuav tsum tau. Qhov no txhais tau hais tias rau lub valve actuated kom ua raws li 25th tsab ntawm API 6D, tus actuator yuav tsum ua raws li API 6DX.
Qhov txawv ntawm API 6D thiab B 16 34 yog dab tsi?
ASME B16. 34: Muab cov txheej txheem kev ruaj ntseg zoo. API 6D: Kev tswj hwm kev tswj hwm nruj dua, suav nrog cov txheej txheem tshuaj xyuas thiab ntsuas tshwj xeeb.
Qhov txawv ntawm API 6D thiab API 594 yog dab tsi?
API 594 npog compact wafer thiab dual phaj check li qub, thaum API 6D npog cov raj xa dej nrog rau cov viav vias loj loj. Vim tias lawv cov hlab ntsha luv luv thiab lub caij nplooj ntoo hlav- pab kaw kom txo qis rov qab ntws tawm. Cracking siab yog feem ntau qis heev, feem ntau nyob ib ncig ntawm 0.05 txog 0.2 bar.
