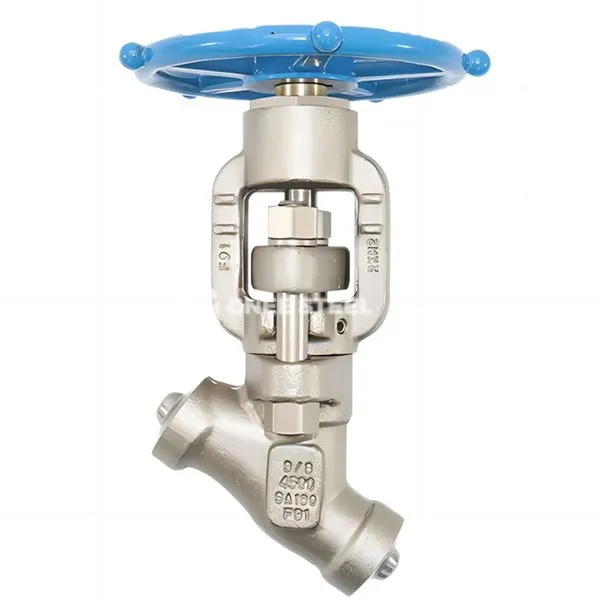

Siab Tshaj Y Hom Ntiaj Teb Valve

Kev siab siab y-hom ntiaj teb valve yog ib qho tshwj xeeb nres valve tsim rau cov haujlwm ua haujlwm siab. Nws lub cev valve yog y-puab thiab nruab nrab yog txiav tawm lossis tswj hwm los ntawm cov kab tawm ntawm txoj kev nce thiab poob ntawm lub valve disc.

Nta
Tsis tshua muaj ntws tiv thaiv tsim

Lub Y-Zoo li cov Flatal channel nyob ze rau txoj kab ncaj nraim, txo qhov kev ntws tawm los ntawm ntau tshaj 60%, nrog cov nyhuv muaj zog tseem ceeb;
Qhov thib ob votary votling nto tsim ntawm lub valve disc txo cov kev yaig kev puas tsuaj ntawm cov khoom sib khi los ntawm kev kub siab.
Kev yoog raws li kev ua haujlwm hnyav

Siab Kuj tau nce mus kawm 2500lb (42MPA), thiab qhov ntsuas kub los ntawm -196 degree rau 540 degree;
Lub Chrome-Molybdenum steel valve valve lub cev (F91 \/ F91 \/ F91 \/ F92) Tsis kam Yaig ntawm Supercritical Chav ntawm 540 degree.
Siab ntseeg tau lub foob

Integral valve seat + metal hard seal, with a service life of more than 100,000 openings and closings‌;
Siab Kev Tsim Nyog Kev Ntsuas Tus Kheej: Qhov ntau dua qhov nruab nrab siab, lub zog tig lub cim.
Saj zawg zog cov txheej txheem kev teeb tsa

Lub valve npog tuaj yeem tsim raws li threaded, welded los yog detachable;

Txhawb hluav taws xob \/ lub pneumatic drive kom ua tiav kev tswj tsis siv neeg.

Tus Qauv Tsim: Ua raws li Asme B16.34 (siab-ntsuas kub)
Cov txheej txheem ntev: ntsib ASME B16.10 Kev Cog Lus Tshwj Xeeb, kwv yees li 20% luv dua li lub teb chaws tus qauv
Qib Siab: Cov Lus Qhia Txog Cov Chav Kawm 150 ~ 2500lb (txog 42MPA)
Vuam kawg cov lus qhia: (socket vuam (ASME B16.11) lossis taub qab vuam (ASME B16.25)
VALVE KHOOM:
Carbon Steel (A105)
Stainless hlau (F304 \/ F316)
Chromium-molybdenum hlau (F91 \/ F92)
Sealing nto: Stellite carbide cladding (stellite 6\/21, hardness ntau dua los yog sib npaug ntawm HRC55)
Kev Ntsuam Xyuas Cov Qauv: API 598 Kev ntsuam xyuas to (qib VI xoom Leakage)



Siab Tshaj Y Hom Ntiaj Teb Valve



Cov Ntawv Thov

• Petrochemicals

Hydrogenation Reactor Inlet thiab Outlet Pipelines (chav kawm 1500lb +);
Ethylene High-siab ntaus ntawv (sulfur-resistant cov ntaub ntawv nace mR0175 ntawv pov thawj).

• Hluav taws xob

Thermal zog cog lub zog hluav taws xob lub tsev xa hluav taws xob (540 degree \/ 25mpa);
Boiler Pub Dej System (Luv Foob Los Tiv Thaiv Leakage).

• Kev sib sib zog nqus txias thiab tshwj xeeb tshaj tawm

LNG cia thiab tsheb thauj mus los (-196}}}}} degree degree txias stainless hlau valve lub cev);
Muaj siab purity acid thauj mus los (PTFE Lined Valve lub rooj rau corrosion tsis kam).

• Nuclear Zog thiab Metallurgy

Nuclear Island AuXiliary Cua txias zog (tag nrho-hlau fireproof qauv);
Moj tej tawg ua kom sov rauv roj pipeline (kab nrog hnav-resistant alloy los tiv thaiv particle erosion).
