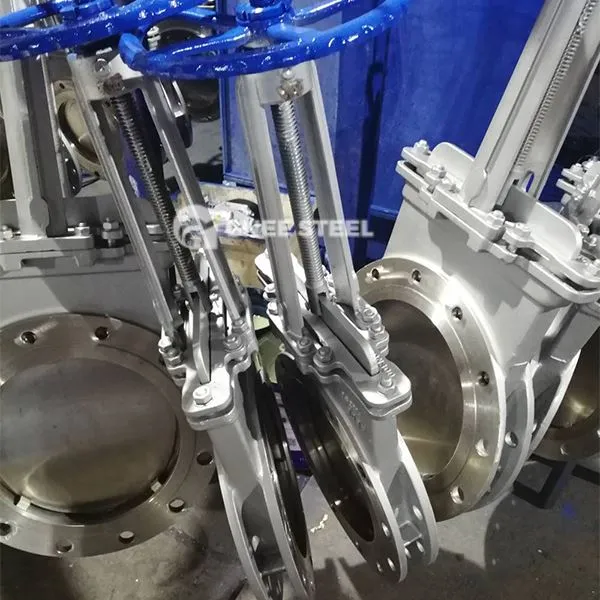

Los ntawm Conduit Riam Rooj Vag Valve

Los ntawm Conduit Riam Riam Valve yog ib lub valve yog ib lub valve uas txiav tawm ntawm nruab nrab ntawm riam-zoo li riam. Nws cov dej ntws txaus yog qhov ncaj-los ntawm kev tsim qauv yam tsis muaj cov qauv tswj txoj kab uas muaj cov roj av uas muaj cov kua dej. Cov tseem ceeb muaj xws li:

Ncaj-los ntawm Flow channel: cov qauv tsim ua tiav (DN50 ~ DN1200), cov kua me me tsis kam, tsis txhob muaj kev cuam tshuam me me lossis txhaws;

Riam Alpife-zoo li lub rooj vag: Ntse Hniav tuaj yeem txiav tawm impurities xws li fibers thiab pulp, haum rau complex media xws li cov dej phwj thiab slurry;

Daim Ntawv Sealing: lub rooj zaum valve tuaj yeem ua los ntawm roj hmab (EPDM, NBR) lossis hlau nyuaj foob, nrog lub siab tiv thaiv qib ntawm pn10 ~ pn16.

Cov qauv thiab cov khoom siv

Txoj kev tsim lub cev:
Lub cev tseem ceeb yog ua los ntawm cov hlau tsis muaj roj (304/36/

Txoj kev sib txuas nrog Flange, clamping lossis vuam, uas haum rau cov kev xav tau teeb tsa ntawm kev cog lus.
Rooj vag thiab foob:
Cov npoo ntawm rab riam-hom rooj vag yog tawv chrome plated lossis txau nrog tungsten carbide, thiab cov hnav tsis kam ntau dua 3 zaug;
Lub rooj ywj pheej yog tsim los ntawm EPDM roj hmab lossis fluoropastic (PTFE), thiab qhov kub thiab txias} {1}} degree.
Tsav hom:
Los ntawm phau ntawv tsav (DN tsawg dua lossis sib npaug zos rau 300) lossis pneumatic / hluav taws xob Actuator (DN100 Torque (DN100 TORURE tsawg dua los yog sib luag rau xyoo 40 Lawb)

• Qhov ntau thiab tsawg muaj nyob (nominal): 2 "/ DN50 txog 24 '' / DN600

• Ua Haujlwm Siab: 300 psi (21 bar) • Hom zaum: Resilient Npoo

• Ua tiav: Kev Faib Bonded Epoxy Coated Sab Hauv thiab Sab Nraud

• Kev sib txuas: flange txoj kab thiab cov tuab raws li Ansi B16.1 chav 125, en {{pn10 lossis en 1092-2 pn16

• Cov lus qhia tshwj xeeb: tsim qauv thiab qhov loj me raws li AWWA C515.

• Nta: pre-nqis los, stainless hlau qia rau yooj yim txuas ntawm kev saib xyuas hloov



Los ntawm Conduit Riam Rooj Vag Valve



Cov Ntawv Thov
Kev tiv thaiv ib puag ncig engineering: Dej phwj teb cog tsob nroj av av txiav ntoo pipeline txiav-tawm thiab ntws kev cai;
Tsuas thiab Metallurgy: Tswj Tswj Cov Lus Qhia Txog Cov Lus Qhia Zoo xws li ORE Cov Pwm Thiab Cov Hlau Hlau;
Papermaking kev lag luam: Qhib thiab kaw pulp thiab khib pipp pipelines kom tiv thaiv fiber ntau entanglement thiab blockage;
Tshuaj Txheej Txheem: Txiav-tawm tswj ntawm corrosive media muaj cov lus (xws li cov kua qaub thiab alkali daws).
