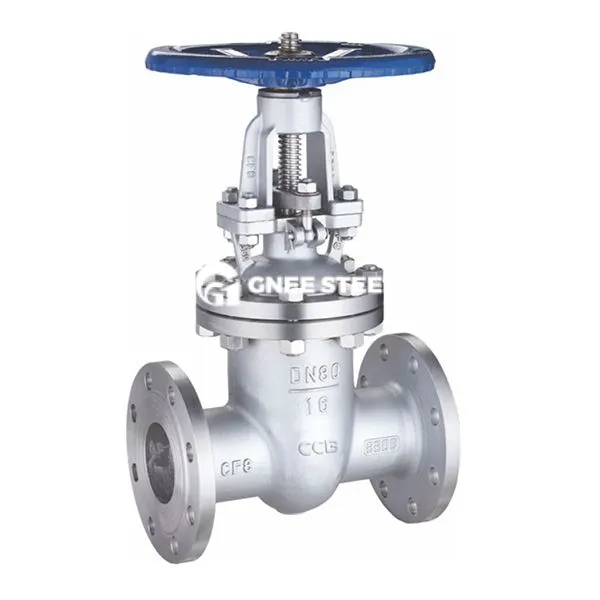

Stainless Hlau Chav 800 Rooj vag Valve

Siab thiab kub

Qib siab: Ua raws li cov chav kawm ASME 800 (txog 13,8 MPA), haum rau cov kev mob siab thiab ntsuas siab tuaj yeem ncav cuag 20.7 MPA.
Ntau yam: Cov ntaub ntawv kub stainless hlau (xws li CF8, CF8m) yog qhov tsim nyog rau {200 degree, thiab cov qauv tshwj xeeb tuaj yeem txuas ntxiv mus rau 550 degree.

Cov Khoom Siv thiab Kev Txuas

Valve cov khoom siv: Ua los ntawm A182 F304 / F316 stainless hlau, nws tsim nyog rau xov xwm xws li kua qaub, thiab chav.
Txoj Kev Sib Txuas: Txhawb ntswj vuam vuam (SW) thiab Flange Txuas (Ansi B16.5), haum rau raj dej tshuab nrog kev xav tau.

Tus qauv thiab kev ua tau zoo nta

Cov qauv tsim

Bonnet Hom: Rellows welded bonnet (GWT-L Ntaus) lossis bolted bonnet, ua kom tsis muaj dej xau nyob rau hauv cov kev lim dej siab.

Daim Ntawv Sealing:

Lub suab nrov: overlaying stellite cobalt-based alloy, tiv taus particle-muaj xov xwm (xws li slurry).

Mos foob: xaiv PTFE lossis hloov pauv yooj yim, haum rau cov kua (dej kom huv, roj).

STEM qauv: Rising Qia Tsim (OS & Y) nrog cov xov Trapezoidal, qis qhib thiab kaw cov phau ntawv lossis hluav taws xob tsav.

Qhov Zoo

Corrosion Kuj: Cov khoom siv tawv steel + saum npoo hardening, haum rau acidic, alkaline ib puag ncig.

Tsis tshua muaj ntws tsis kam: tag nrho-txoj kab uas nyob ncaj-los ntawm kev poob siab, siab xiam yog tsuas yog 1/3 ntawm tib-caliberert valve, haum rau cov xwm txheej ntws loj.
Lub neej ntev: Valve Quav yog Chrome-Plated, Hnav Kuj yog txhim kho, txij nkawm yog ntau dua lossis sib npaug rau 6 lub hlis.

Khoom Ntau Yam
-Valve loj:
2 "~ 48" (DN 50- dn1200)
-Pressure:
Ansi Chav 150 ~ 2500 (PN 16- pn420) -teem:
-196ºC~ 500ºC
Cov ntaub ntawv:
Carbon Hlau, Stainless Hlau, Stainless Hlau, Alloy Hlau, Chav Hlau DuPlex
-T -Tsis (Disc / STEM):
Carbon Steel, Stainless hlau, hlau Stainless, chav hlau ob, Alloy Steel

Kev Ua Tshwj Xeeb
-Design: ASME 16.34 / API 6D / API 600 / BS 1414
-De rau lub ntsej muag: ASME B16.10
-Txhua Flange: ASME B16.5, ASME B16.47
-BW Kawg: ASME B16.25
-Test: API 598 / API 6D / BS 6755
-Sepecial: Nace MR -01-75



Stainless Hlau Chav 800 Rooj vag Valve
