Lugged riam Rooj Vag Valve
Lug Riam Rooj Zaum Rooj Vag (tseem hu ua Lug Riam Rooj Vag lossis Slurry Qhov Cuam Tshuam) yog ib lub valve loj siv los tswj cov kab mob, hom phiaj lossis cov kua ntshav. Nws cov qauv tsim kev txiav cov haujlwm ntawm lub rooj vag nrog lub teeb tsa ntawm cov qauv roj thiab siv hluav taws xob, kev tiv thaiv hluav taws xob, ib puag ncig kev tiv thaiv thiab lwm thaj chaw.
Cov Txheej Txheem Qauv Tshwj Xeeb
Lug Tsim:
Lub cev lub cev muaj cov nyom ntawm ob sab, uas tau txuas ncaj qha rau cov raj xa hluav taws xob hauv qab bolts. Nws yog ib qho yooj yim rau nruab thiab zam lub cev lub cev ua si thiab tsis zoo los ntawm cov bolts, yog li kev txhim kho kev ntseeg tau.
Piv nrog tsoos flange qaib, lug installation installation lub rolt ntev thiab txo qhov kev pheej hmoo ntawm kev ua kom muaj txiaj ntsig los ntawm ntsia thawv.
Rooj vag thiab foob qauv:
Lub rooj vag yog tsim nrog U-puab hniav, uas tuaj yeem txiav tawm impurities xws li fibers thiab hais kom tiv thaiv kev tso dag; Qhov saum npoo yog polished los txhim kho kev ua haujlwm sib khi.
Lub foob tau muab faib ua cov pob muag muag (PTFE, roj hmab) thiab cov khoom siv hlau (kab ke). Qhov muag muag tau ua tiav xoom kev xau dej, thiab lub zog nyuaj yog tiv taus qhov siab kub (tsawg dua los yog sib npaug nrog 300 degree) thiab hnav.
Cov khoom siv hloov tau:
Lub cev valve feem ntau yog ua los ntawm cov hlau tsis muaj roj (304/9), carbon steel lossis tshwj xeeb alloy (2205), uas haum rau corrosive media;
Lub rooj vag tuaj yeem ua tau ntawm cov khoom siv-resistant cov ntaub ntawv (xws li 2cr13, ceramic) kom txuas ntxiv nws lub neej kev pabcuam.
Ua Haujlwm Cov Ntsiab Cai
Lub rooj vag yog nqa ntsug los ntawm phau ntawv, hluav taws xob lossis lub pneumatic drive ntawm lub valve qia:
Qhib Lub Xeev: Lub rooj vag tau txhawb nqa tag nrho thiab cov kua dej dhau los ntawm kev tsis txaus ntseeg;
Kaw Lub Xeev: Cov hniav rau hauv qab ntawm lub rooj vag presses lub rooj vag valve, txiav tawm ntawm nruab nrab thiab scrapes tawm impurities ntawm kev sib khi ntawm cov chaw ua kom tiav ob txoj kev sib khi.
Lugged Riam Rooj Vag Valve Kev Ua Yeeb Yam
|
Yam |
Lugged riam rooj vag Valve | |||
|
Nominal diam |
DN50 ~ 2000 mm Nps 2 "~ 48" |
|||
|
Cov Khoom Siv Tseem Ceeb |
Ci, WCB, zg1cr18ni99i, zg1cr18nti, zg1cr18ni, cf8, cf8m, cf3m. Thib 25NI20 |
|||
|
Kev xau |
Stainless hlau tsis muaj zog: Dluab D (kua 0. 1xdn mm3 / s) |
|||
|
Tej ntxiv |
1.flange 2.solenoid valve 3.Air lim 4.Limit hloov |
|||
|
Teal Hom |
Stainless Hlau Zog Foob, Teflon Seev Foob |
|||
|
Teflon Cov Foob |
Qib A (Xoom Qhaub) |
|||
|
Flange Drilling |
Ansi B16.5, GB / T9113, JB / T79, HG, SH, JIS, DIN, NF, BS |
|||
|
Siab Ntau Yam |
{{{{{0}}}. {}} ~ 1.0mpa |
|||

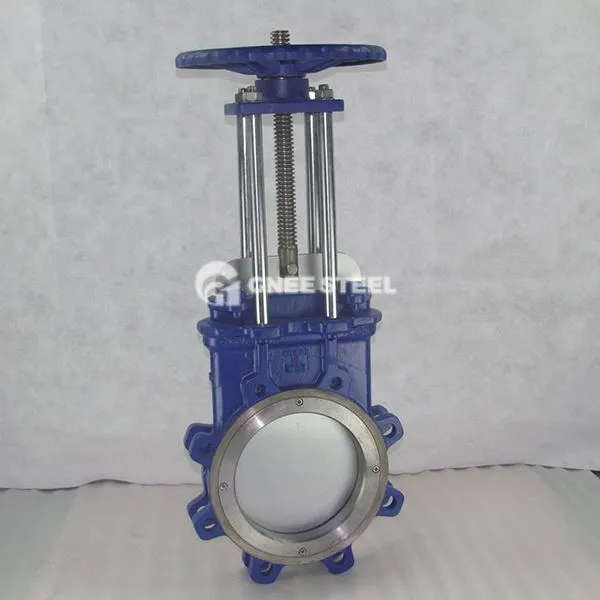

Lugged riam rooj vag Valve
Cov Ntawv Thov
Kev tiv thaiv ib puag ncig: kev kho mob ntawm dej khib nyiab muaj cov khib nyiab tshem tawm hauv nroog dej phwj.
Kev Lag Luam Fais Fab: Tsheb thauj mus los thiab txiav cov tshauv slurry hauv cov nroj tsuag thee.
Tshuaj Kev Lag Luam: Ntws Tswj ntawm cov muaj zog acid thiab alkali media.
Papermaking thiab metallurgy: rajeLeline tshuab rau cov roj ntau lub cev thiab cov av av ntxhia.
