Lug riam rooj vag rooj vag valve
Lub hau Riam Riam Valve yog riam-hom Rooj vag Valve nrog cov qauv ntoo nrog ob sab ntawm lub rooj vag. Nws txiav cov nruab nrab los ntawm qhov chaw nyob ntawm lub rooj vag, thiab yog qhov tsim nyog tswj cov kua dej uas muaj cov khoom tawg, xws li sludge, slag, thiab viscous slurry). Nws muaj qhov zoo ntawm cov muaj zog khoov tsis kam thiab txhim khu kev qha sib khi.
Txheej txheem kev tsim kho:
Lug Tsim: cov nyom ntawm ob sab ntawm lub rooj vag txhim kho kom nruj thiab txo cov khoom muaj kev deformation thaum txiav. Nyob rau tib lub sijhawm, lawv ua ntau-point compression foob nrog lub rooj valve los txhim kho lub siab tiv taus (tsawg dua los yog sib npaug ntawm PN16);
Daim Ntawv Sealing: Hard Foob (Hard Alloy) lossis cov ntaub qhwv tawv (roj hmab / PTFE), qib kev xau nce qib ENSI chav VI;
Txoj Kev Sib Txuas: Tus thawb Flange kev twb kev sib txuas tau txais kev sib txuas, thiab cov bolts tsuas yog kho cov raj xa hluav taws xob thiab deformation ntawm lub valve lub cev, uas yog qhov tsim nyog rau nquag disassembly tej yam kev mob.

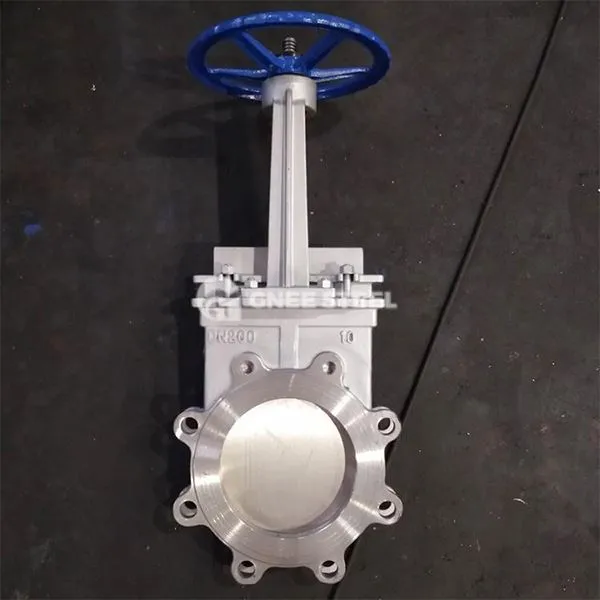

Lug Riam Rooj Zaum Rooj Vag Valve
| Lus | Qhov taw qhia kev ua haujlwm | Cov Ntawv Thov thiab Cov Lus Qhia |
|---|---|---|
| Nominal siab | Pn1 {0 / 16 (1.0 ~ 1.6mpa) | Nruab nrab thiab lub tshuab voltage qis xws li cov nroj tsuag thiab hluav taws xob. |
| Qhov ntsuas kub ntau | {{0 {0}} degree ~ 180 degree (txwv los ntawm sealing cov khoom) | PTFE cov ntsaws ruaj ruaj yog qhov tsim nyog rau kev ua haujlwm cov neeg mob tsawg dua los yog sib npaug rau 150 degree |
| Caliber ntau ntau yam | DN50 ~ DN1400 | Loj ntws slurry pipeline (dn ntau dua los yog sib npaug nrog 300) yog qhov xav tau |
| Cov Khoom Siv Tseem Ceeb | Lub cev lub cev: WCB, CF8M (Stainless Hlau 316), Chav Hlau DuleX (F55 / F53) | Rau corrosive media (xws li acid thiab alkali), xaiv cov hlau yas. |
Gnee Lug Riam Riam Rooj Vag Valve
Cov Ntawv Thov
Mines / Fais Fab Nroj Tsuag:
Coal slurry thiab slag conveying tshuab, lub tshuab kaw lus nyuaj tuaj yeem txiav tawm ntawm cov teeb meem (DN300 ~ DN1400, PN10); Dej phwj:
Fiber ntau-muaj sludge thiab viscous tshuaj khib nyiab, U-puab hniav los tiv thaiv clogging (mos foob, DN50-; Khoom noj khoom haus / Kws Tshuaj:
Huv tej khoom siv tau zoo (316L) yog qhov haum rau kua dej tsis huv, thiab cov ntaub ceev ceev tau yooj yim rau kev tu CIP.
