Flanged Npoo Rooj Zaum Txawv Cov Lus Nug
Flange Npoo Rooj vag Valve yog lub valve uas qhib thiab kaw cov kua dej thawm los ntawm wedge-puab rooj vag. Nws muaj lub cev valve, ib lub rooj vag npoo, lub pob valve thiab kev ua haujlwm ua haujlwm. Nws cov qauv tsim yog lub rooj vag wedge-puab, uas yog tau tsav mus thiab nqis los ntawm lub valve ci kom ua tiav tag nrho qhib lossis kaw tag nrho. Nws yog qhov tsim nyog rau kev ua haujlwm uas xav tau kev sib khi nruj thiab tsis tuaj yeem siv rau kev cai ntws.
Cov Qauv Raug
Flanged Npoo Rooj Vag Txawv Ua raws li cov qauv tseem ceeb hauv qab no:
Tsim thiab tsim khoom:
GB / T {12234-2007 (cov rooj vag steel li qub rau roj av thiab ntuj muaj kev lag luam)
API Txheem 600-2015 (specifications rau cov qauv rooj zaum steel) txuas cov khoom siv hluav taws xob kom zoo dua tshiab)
Sealing kev ua tau: Kuaj cov xau ntawm lub valve nyob rau hauv lub xeev kaw cia xws li lub zog nruab nrab ntawm lub zog thiab cov npog valve (feem ntau 1.5 zaug ntawm nominal siab). Kev Soj Ntsuam: Tshawb xyuas cov tshuaj lom neeg muaj pes tsawg leeg, cov khoom siv neeg kho mob thiab corrosion tsis kam ntawm lub cev thiab cov ntaub ntawv sib tw.
Kev ua hauj lwm kev ua haujlwm: sim qhov yooj thiab qhib thiab kaw lub zog ntawm phau ntawv, hluav taws xob hluav taws xob, kev ua haujlwm pneumatic.
Cov txheej txheem sim:
Cov tsos tshuaj xyuas: paub meej tias tsis muaj qhov tsis xws luag xws li cov kab nrib pleb thiab pores rau saum npoo.
Siab kuaj: ua lub zog ntsuas thiab kev soj ntsuam sealing hauv ntu.
Ua haujlwm ntsuas: simulate ua haujlwm tiag tiag los xyuas qhov qhib thiab kaw yooj yim thiab kev ntseeg tau
Flanged Npoo Rooj Rooj Zaum Txawv
|
Daim ntawv thov |
Nais phoo |
|
Qhov chaw ntawm keeb kwm |
Henan, Suav |
|
Hwjchim |
Noj fai fab |
|
Hwjchim |
Cua |
|
Lub tsev |
Kev tswj |
|
Customized kev pab |
Dos |
|
Chaw nres nkoj loj |
15 hli rau 400Mm (1 / 2in rau 16in) |
|
Kev lav |
1 Xyoo |
|
Tus Qauv Qauv |
G110, G150 Series |
|
Kub ntawm Media |
Tsawg / Qub / Kub |
|
Hom Lub Npe |
Gnee |
|
Koom haum tshaj xov |
zoo li ib txwm |
|
Khoom npe |
G110, G150 Kev Tswj Cov Qub |
|
Tus qauv |
G110, G150 Series |
|
Nominal diamen ranges |
15 hli rau 400Mm (1 / 2in rau 16in) |
|
Nominal siab li |
PN16, PN20, PN40, PN63, PN63, PN63, PN150, PN420, Chav Kawm, Class900, Class2500 |
|
Ntaub ntawv |
Carbon Hlau, Stainless Hlau, WCB, Alloy Steel |
|
Qho so |
"{{-196 degree rau 450 degree |
|
Kev pab fais fab |
220V 50Hz lossis 380V 50Hz |
|
Cua Xa Khoom |
{{{0}}}. 4Mpa ~ 0.5mpa |
|
Tswj Teeb Liab |
4-20 ma, |
|
Kev khib nyiab |
50:1 |
|
Intrinsic Flow Cov Kheej |
Linear, EQ% (hauv cov nyiaj tau kho tau 50: 1) |

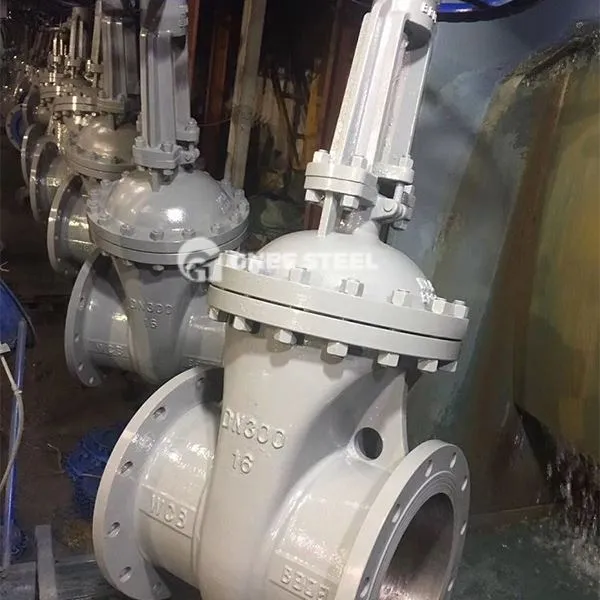

Flanged Npoo Rooj Rooj Zaum Li Qub
Vim li cas thiaj xaiv Flange lub rooj vag Valve:
Ua haujlwm hloov kho tau: Haum rau kev kub siab, kub, qis kub thiab cov kev ua haujlwm ua haujlwm nyuaj uas muaj cov lus txwv.
Tus txij nkawm tsawg tsawg: Cov khoom lag luam sib nraus tuaj yeem kho tau tom qab hnav, txuas ntxiv lub neej pabcuam.
Cov txheej txheem siab ntawm cov qauv: Nws ua raws li cov qauv kev ua lag luam hauv tsev thiab thoob ntiaj teb thiab yooj yim los hloov thiab phim.
Kev Nyab Xeeb Kev Nyab Xeeb: Tsis muaj kev pheej hmoo ntawm qhov nruab nrab ntawm cov nruab nrab hauv nruab nrab hauv lub xeev qhib / kaw tag nrho lub xeev, kom muaj kev nyab xeeb system.
