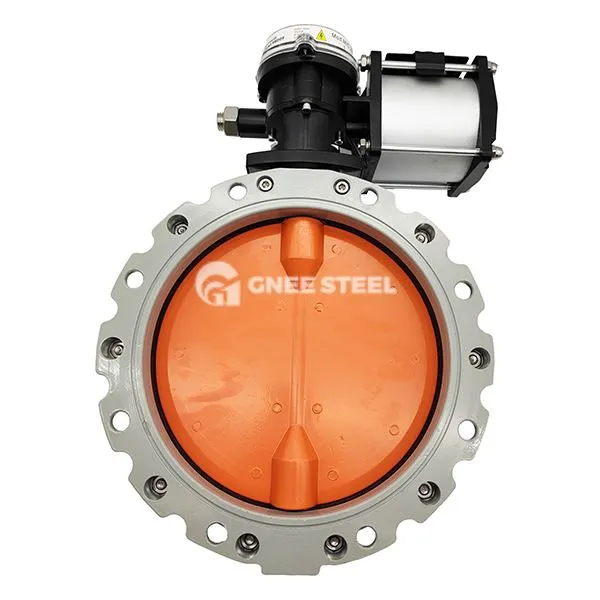

Hmoov Npauj Npaim Valve Lo Lus Qhia
Hmoov Npauj Npaim Valve yog ib lub npav loj siv nyob rau hauv cov hmoov thiab cov khoom siv granular conveying system. Nws paub qhov qhib thiab kaw kev tswj hwm ntawm cov raj xa dej los ntawm kev tig lub valve phaj. Nws muaj cov yam ntxwv ntawm kev sib khi zoo, hnav tsis kam, thiab lub teeb yuag. Nws yog dav siv nyob rau hauv silos, pneumatic conventing, tshuaj lom neeg kev lag luam, thiab ua zaub mov.
Cov tsis sib haum thiab cov yam ntxwv
Tsim Nyog:
Lub Chaw Muag Khoom: Nrum Txhuas Alloy (Lub Hnav Txhuas) lossis 304/5 316L Stainless Hlau (Lub Cim Teb Chaws Reserary Resist-resistant cov ntaub ntawv (xws li NBR, PTFE).
Daim Ntawv Sealing: cov foob mos (roj hmab lossis polymer cov khoom), haum rau hmoov particle treationing.
Tsav hom: phau ntawv, pneumatic (CP101 / CP126 Actuator) lossis hluav taws xob, txhawb nqa ceev ceev thiab kaw.
Hmoov Npauj Npaim Valve
| Cov khoom Chaw ua uas tsis tau haus |
Fosd -05 | Fosd -10 | Fosd -16 | Fosd -30 | Fosd -60 | Fosd -125 | Fosd -250 | Fosd -400 |
| Tsim Tawm Torque | 50nm | 100NM | 160NM | 300nm | 600nm | 1250nm | 2500nm | 4000Nwm |
| Cov Sijhawm Rated Mus Ncig | 20S | 15S/30S | 30S/60S | 100S | 100S | 100S | ||
| Sib Hloov Lub | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree | {{0 {}} degree -90 degree |
| Ua haujlwm tam sim no | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Pib lub zog | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Lub cev muaj zog | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Qho hnyav | 3kg | 5kg | 5.5kg | 8Kg | 8.5kg | 15Kg | 15.5Kg | 16kg |
| Hwjchim | Av220V, AC24V, AC14V, AF110V, AC380, DC24V (Xaiv cov kev xaiv) | |||||||
| Rwb Cevhij Kuj | 100m / 500vdc | |||||||
| Siab nrog | 1500 ramp, ib feeb | |||||||
| Hauv kev tiv thaiv | IP65 / IP67 | |||||||
| Nruab kaum | 360 degree txhua yam kaum | |||||||
| Hloov Hluav Taws Xob | Ib qho G1 / 2 CNCco, ib lub zog hluav taws xob chaw nres nkoj, ib qho teeb liab log hlau txuas chaw nres nkoj | |||||||
| Ambient noo | {{0 {}} degree rau +60 degree | |||||||
Hmoov Npauj Npaim Valve
Cov Ntawv Thov
Hmoov khoom Tuav:
Kev txwv tsis pub rau hauv qab ntawm silos thiab cov nqaij, siv kev sib tsoo los txhawb cov ntaub ntawv.
Ntsia thawv cov khoom hluav taws xob lossis cov pneumatic conveying pipeline los tiv thaiv cov ntaub ntawv backflow.
Muaj Teb:
Maas thiab tshuaj lom hmoov sib xyaw ua ke, tiv taus cov ntawv xov xwm abrasive.
Cov khoom noj-qib ua haujlwm tej yam kev ua haujlwm (xws li cov mis mos thiab cov hmoov txhuv nplej siab thiab cov hmoov txhuv nplej siab) Siv Huv Si Hlau Stainless Hlau Thiab Clamp Ceev Tshaj Tawm Kev Txuas.
Xaiv thiab Kev Teeb Meem Tshwj Xeeb
Xaiv cov ntsiab lus:
Thaum muaj cov khoom siv abrasive ntau cov xov xwm + polymer valve qauv tsim kom txo jamming thiab hnav.
Lub pneumatic conveying system yuav tsum tau sib phim nrog tus pneumatic actuator (siab {{{}}}}}}}}}}}. 4 ~ 0.6 MPa) kom paub tseeb.
Yuav Tsum Tau Los Ua:
Kab rov tav kev teeb tsa yuav tsum tau hais tias lub pob hluav taws xob lub chaw sib hloov axis tau txiav mus rau cov kev coj ntawm kev sib txuam kom tsis txhob muaj cov khoom siv tsis ua haujlwm.
Flange Kev Txuas Txuas Siv Hlau Kauv Ntsig Gaskets lossis Cov Khoom Noj-Qib Silicone Pads kom tau raws li cov kev xav tau ntawm cov xov xwm sib txawv.
