Flanged Triple Offset Npauj Npaim piav qhia
FLANGED Triple Exceply Offset valve yog lub siab-ua yeeb yam sib txuas thiab muaj peb-seem, cov xov xwm kev ua haujlwm siab thiab cov haujlwm hnyav. Nws cov qauv feature yog kom ua tiav xoom qeeg thiab lub neej ntev los ntawm cov txheej txheem kev tsim kho, cov hauv qab no yog cov ncauj lus kom ntxaws:
1. Cov txheej txheem tseem ceeb nta
Peb-seem Tsim Qauv Eccentric:
Thawj eccentricity: cov qia axis deviates los ntawm nruab nrab ntawm cov npauj npaim phaj, uas txo cov kev sib txhuam thiab hnav ntawm cov chaw sib khi thaum qhib thiab kaw.
Qhov thib ob eccentricity: cov qia axis yog offset los ntawm nruab nrab kab ntawm cov yeeb nkab, tsim tus kheej nruj zog rau txhim kho cov nyhuv seading.
Qhov thib peb eccentricity: cov chaw sib khi ncaj qha rau lub ntsej muag ci ntsa iab, kom ua tiav xoom tsis muaj zog ntawm cov hlau tawv (toter) tsawg dua lossis sib npaug rau 10 ppm).
Flange kev txuas:
Lub cev lub cev thiab raj xa dej yog tsau los ntawm Flange Bolts kom ntseeg tau tias muaj kev sib txuas nrog thiab kev cais tawm yooj yim.
Cov Flange Saleing nto muaj peev xwm nrog cov tawv tawv los yog hloov pauv graphite composite composite composite composite txheej txheem thiab kub siab.
2. Kev ua tau zoo
Sealing thiab siab Kuj:
Bidirectional Sealing: Lub khob lub khob ntawm cov khoom sib khi me me, uas tuaj yeem tiv thaiv qhov kev sib txhuam ntawm kev hloov pauv thiab kaw cov xwm txheej.
Siab ntsuam xyuas txog chav kawm 600 (pn100), qhov kub tau npog {{2} {{{3} degree.
Lub neej ntev thiab kev txij nkawm tsawg:
Lub rooj lub neej yog tshaj 100, 000}}}}}}}, tsis muaj teeb meem Elastic Deterioration, thiab cov kev sib tham ntawm {2}} xyoo.
Kev sib khi saum npoo av yog tsim los ntawm kev tso cai carbide overlay (xws li stellite) lossis cov qauv hlau laminated, uas tiv thaiv tau kom tshem tawm thiab kev muag khoom.

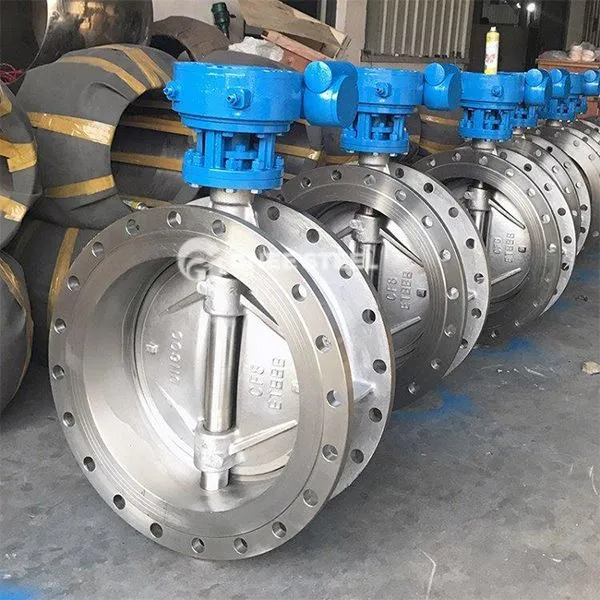

Flanged Triple Offset Daj Npaim li qub
| Khoom npe |
Flanged Triple Offset Npauj Npaim li qub |
| Hom Lub Npe | Gnee, thiab OEM tseem tau txais |
| Npauj Npaim Valve Loj | 25mm -1000 hli |
| Daim ntawv muaj cai | CE, ATEX, SIX3, ISO9001: 2016 |
| Phab Valve | Tus npauj npaim |
| Rau siv nrog | Dej, Roj, Huab Cua, Nkev, Chav, Dej Haus |
| Feer khoom | EPDM roj hmab, NBR, PTFE, hlau-rau-hlau |
| Cov lus qhia tshwj xeeb tau ntsib | API 609 |
Flanged Triple Offset Npauj Npaim li qub
