Huv 2- txoj kev pob cov lus piav qhia

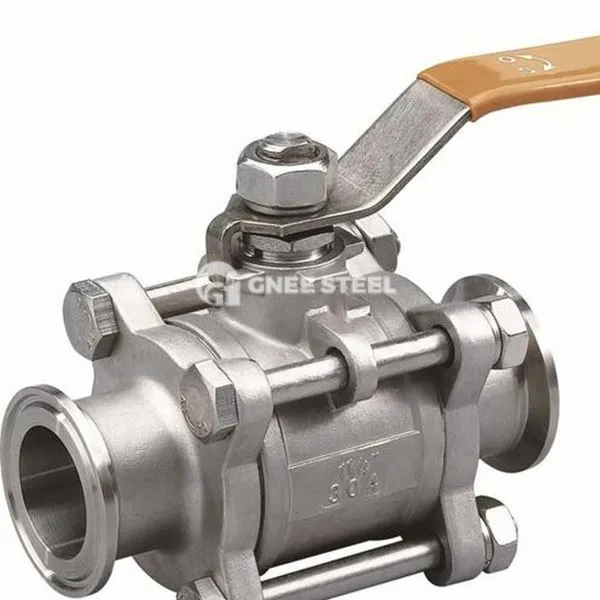

Huv ob txoj kev pob pob valve yog ib lub valve tsim rau kev lag luam nrog kev ua kom huv. Nws tuaj yeem txiav tawm lossis txuas lub raj xa hluav taws xob los ntawm kev tig lub pob 90 degree. Nws yog qhov haum rau cov chaw muag tshuaj, khoom noj, bioengineering thiab lwm liaj teb uas muaj cov qauv kev nyiam huv. Nws cov yam ntxwv tseem ceeb yog tsis muaj tuag lawm-tsim thiab tu yooj yim kom tsis txhob muaj kev nyob tsis muaj nyob ntawm nruab nrab.
Cov qauv thiab muaj pes tsawg leeg
Cov Cheebtsam Tseem Ceeb:
Lub cev lub cev: Ua los ntawm Sus316 / 316L Stainless hlau, qhov saum npoo yog mirrored lossis matte kho kom tau raws li cov qauv kev nyiam noj kom haum.
Pob: Txhua tus qauv (nruab nrab yog qhwv kiag li lawm) kom ntseeg tau tias cov kua dej dhau mus ncaj thiab lub siab poob yog me me.
Foob: feem ntau siv PTFE lossis EPDM cov ntaub ntawv, tshaj nrog cov khoom kom muaj zog (xws li CIP / SIP txheej txheem).
Txoj Kev Txuas:
Hom nrawm nrawm (Tri-clamp), vuam hom (taub qab vuam), kom tau raws li qhov xav tau ntawm cov kab ke sai sai.
Cov ntaub ntawv thiab ntawv pov thawj
Cov khoom siv tseem ceeb: sus316L stainless hlau, muaj zog corrosion tsis kam, hauv kab nrog FDA, Ehedg thiab lwm yam ntawv pov hwm kev noj qab haus huv.
Foob cov khoom: PTFE (tshuaj lom neeg ua hauj lwm), EPDM (cov chav dej siab tiv thaiv).
Kev Lag Luam Kev Lag Luam: ISO 9001 Kev Tswj Xyuas Kev Tswj Xyuas Zoo, CE (EU Kev Nyab Xeeb Kev Nyab Xeeb), CSA Asmeskas (North American txheem), thiab lwm yam.
Huv 2- txoj kev pob li qub specification
|
Yam |
Huv ob txoj kev stainless hlau pob valve |
|||
|
Khoom |
Stainless hlau |
|||
|
Khoom siv sealing |
Ptfe |
|||
|
Nominal loj |
DN15 ~ DN100 |
|||
|
Kev khiav hauj lwm siab |
1.6MPA |
|||
|
Lub tsev |
Pneumatic Ua yeeb yam pob Valve |
|||
|
Lub kaum sab xis ntawm kev sib hloov |
90 degree ± 4 degree |
|||
|
Xumtion Txoj Kev Cai |
Pneumatic ua yeeb yam |
|||
|
Tus naj npawb ntawm txoj kev |
2 txoj kev |
|||
|
Lub neej |
1, {000, 000 (1 lab) zaug |
|||
|
Muaj Feem Loo |
Khoom Noj Khoom Haus & Dej Haus, Dej, Ultra ntshiab dej, tshuaj lom neeg, tshuaj, textile, pulp, pulp & ntawv |
|||
Huv 2- txoj kev npas li qub
Cov Ntawv Thov
Cov khoom noj thiab dej haus: kev tswj cov kua hauv cov kab ntau lawm xws li cov khoom noj mis nyuj thiab npias brewing.
Kws Tshuaj thiab Bioengineering: Cov Khoom Siv Raw Khoom Siv Raw, Khoom Siv Hluav Taws Xob.
Khoom Siv Kho Mob: Cov dej huv, ua kua roj rau kev txhaj tshuaj.
Nta
Huv hom Tsim: polished sab hauv phab ntsa (ra tsawg dua lossis sib npaug {{0μm), tsis muaj ceg tuag, kom tsis txhob tuag cov kab mob kev loj hlob.
Kev nrawm tawm interface txhawb nqa cov disassembly thiab kev ntxuav.
Qhov Zoo:
Tsawg poob siab: tag nrho dais tsim, cov kua dej qis.
Lub neej ntev: Lub kaw lus nyuaj tsim qauv yog hnav-resistant thiab haum rau high-zaus hloov cov xwm txheej.
Kev sib xyaw: tuaj yeem siv nrog hluav taws xob lossis pneumatic actuats kom ua tiav kev tswj tsis siv neeg (xws li COMPRESSAGE nrog PLC system).
