Pneumatic Floating Pob Lat Cov Lus Qhia
Pneumatic floating pob valve yog lub pob valve uas qhib thiab kaw los ntawm kev tsav lub npas ntawm tus neeg pneumatic. Lub pob cia li nias tus tawm tsam ntawm lub nplhaib tawm ntawm lub nplhaib hauv qab kev txiav txim ntawm nruab nrab siab los ua ob-txoj hlua khi. Nws yog qhov haum rau dej, chav, roj, corrosive media thiab lwm yam xwm txheej.
Ua Haujlwm Cov Ntsiab Cai
Tus acumatic actuator lub valve qia tig 90 degree los ntawm kev hloov pauv ntawm huab cua, tsav tsheb ua kom nrawm nrawm thiab ua haujlwm sai.
Nyob rau ntawm tsis tshua muaj siab, nws tso siab rau hauv nruab nrab siab rau tus kheej-zawm ntawm lub foob; Thaum muaj kev kub siab, lub pob yog raug rau qhov thawb ntawm qhov nruab nrab los txhim kho cov nyhuv seading, thiab tus nqi to taub tsawg dua lossis sib npaug}. 01mL / min.
Cov qauv tseem ceeb thiab cov lus tsis raug
Lub ntsiab qauv
Lub cev lub cev thiab lub pob: cov khoom siv tuaj yeem raug xaiv los ntawm 3 {2}}}}}}} 2μm) thiab tawv chrome plated los txhim kho corrosion.
Foob Qauv:
Cov foob muag muag: PTFE lossis cov teeb meem kub ntsej muag ci nplhaib, qhov kub kub tiv taus {{} degree ~ 200 degree
Lub suab nrov: Hlau foob nplhaib (xws li stellite alloy), qhov kub tiv thaiv mus txog 540 degree, haum rau nruab nrab muaj cov lus.
Kev tsav tsheb hom: pneumatic actuator (ib leeg-ua / ua yeeb yaj kiab), tsis xaiv phau ntawv cab iav lossis cov actuator.

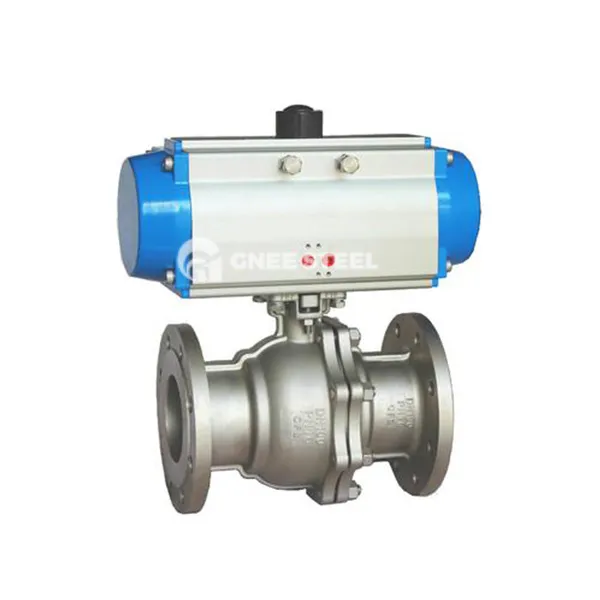

Pneumatic Floating Pob Li Qub
|
Loj npaum li cas
|
1/2 "~ 8", DN15 ~ DN200
|
|
Kev khiav hauj lwm siab
|
1.6MPA
|
|
Kev tswj hom
|
Ntawm Tawm Hom / Modulating Hom
|
|
Yeem voltage
|
DC12 ~ 24V (± 10%), AC110 ~ 220V, 50 / 60HZ
|
|
Lub Cev Khoom
|
Stainless hlau
|
|
Cov Khoom Siv Tseem Ceeb
|
Stainless hlau
|
|
Khoom siv sealing
|
EPDM, PTFE
|
|
Stwj khoom
|
Stainless hlau
|
|
Lub tsev
|
2 Txoj Kev Pob Pob
|
|
Kev Sib Txuas Hom
|
Flanged
|
|
Muaj Feem Loo
|
Kev tswj cov dej, huab cua, roj, roj, kua, chav dej
|
Pneumatic Floating Pob Li Qub
Xaiv thiab txij nkawm cov lus pom zoo
Xaiv cov ntsiab lus
Media txuam:
Rau cov corrosive corrosive, xaiv 316L Stainless Hlau + Lub Cim Hluav Taws Xob
Rau particle-muaj tshaj tawm, xaiv V-puab txiav kheej kheej lossis cov qauv siv hlau.
Qib siab:
Mos foob yog nyiam rau cov tshuab qis qis (PN16 ~ tshiav).
Rau siab-siab / siab-kub scenarios (PN63 thiab tshaj saud), xaiv lub ntim khoom.
Txij Nkawm Lus Taw Qhia
Lubrication thiab kev txij nkawm: siv cov roj kub siab (xws li Silicone roj) rau lub valve qia xov thiab phau ntawv zav tsis tu ncua.
Hloov chaw ntawm lub nplhaib: Tshawb xyuas cov PTFE foob nplhaib txhua 3 xyoos, thiab ua kom luv rau 1 ~ 2 xyoo rau cov kev mob siab.
