Kev kub siab Stainless hlau pob li qub cov lus piav qhia
Kev siab siab stainless hlau pob valve yog lub valve ua los ntawm cov hlau tsis muaj zog thiab tsim kom muaj kev ua haujlwm siab. Nws tuaj yeem txiav tawm ntawm nruab nrab lossis tswj cov nqi txaus los ntawm kev tig lub pob 90 degree. Lub siab ntau yog feem ntau 16-500 mpa. Nws cov tub ntxhais lub zog muaj xws li:
Kev tswj hwm txiav / txoj cai txiav txim siab: Tus qauv tsim puv ntoob tuaj yeem thaiv cov kua dej lossis kho tus nqi kom haum, cov roj ntsha thiab kev lag luam siv tshuaj lom neeg;
Ntau qhov kev tswj hwm: Peb-txoj kev qauv (T-hom / L-hom) txhawb nqa cov kev hloov pauv nruab nrab, sib xyaw ua ke.
Cov qauv tseem ceeb thiab cov lus tsis raug
Lub cev thiab cov khoom siv
Lub Chaw Haujlwm Lub Cev: Feem ntau yog 304, 316, 316L stainless hlau, nrog muaj zog corrosion tsis kam; Duplex Steel (2205/2507) lossis hastelloy alloy tuaj yeem xaiv rau kev ua haujlwm hnyav, nrog lub siab tiv thaiv ntawm 500mpa.
Txoj kev sib txuas: Flange lossis xov paj dn dn dn {mm, nyob rau hauv kab nrog GB / T9113 lossis ASME B16.5 cov qauv. Sealing System
Mos Foob: PPF ROOJ ROOJ COG, QHOV CUA KWM {{}}} degree ~ 180 Qib eaki (toxage qib ansi vi);
Lub suab nrov: Stellite 6 cladding, qhov kub kuj zoo li 450 qhov kub siab txog 25mpa, haum rau chav, acid thiab lwm yam xov xwm.
Tsav Hom
Los ntawm txhais tes: zinc alloy kov lossis lub turbine tsav, kev khiav haujlwm ua haujlwm tsawg dua lossis sib luag rau 50 lab;
Pneumatic / Hluav Taws Xob: Teb kom tsawg dua lossis sib npaug rau 0. 05 vib nas this}. 05 vib nas this, txhawb kev tswj chaw taws teeb thiab kev koom ua ke.
Kev Kub Siab Stainless Hlau Pob Li Qub Cov Lus Qhia
| Chaw ua uas tsis tau haus | Qhov taw qhia ntau | Muaj cov qauv siv |
|---|---|---|
| Nrog nce voltage theem | 16-500 mpa | API 6D / GB1223758 |
| Tsev hauj lwm kub | -196 degree ~ 550 degree | Ansi B16.3478 |
| Ntws Muaj Peev Xwm | CV tus nqi ntau dua lossis sib npaug rau 210 (DN50 Puv Bore) | Iso 520815 |
| Kev Pabcuam Lub Neej | Ntau dua los yog sib npaug rau 100, 000}} QHIB thiab kaw CYCLES | API 59868 |

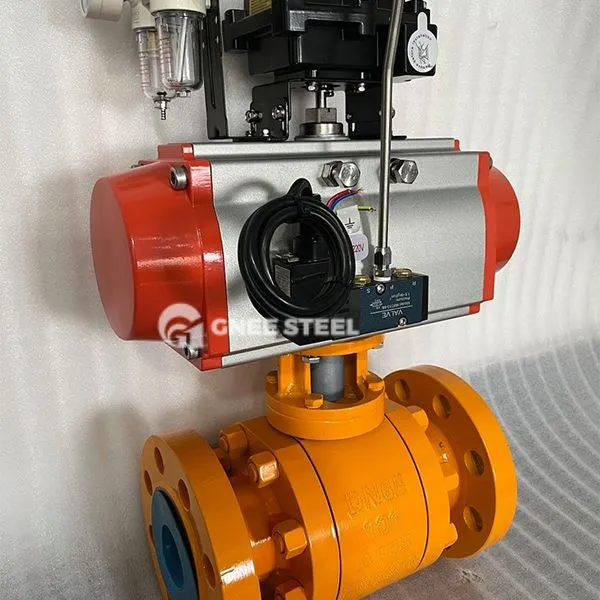

Lub Ntiaj Teb Kev Kub Siab Stainless Hlau Li Qub
Cov Ntawv Thov
Roj av thiab cov nkev:
Cov roj siv roj siab thiab roj ua kom zoo rau cov dej txiav (xws li Q41F {2}} p valve), tiv taus sulfide corrosion;
Tshuaj Txheej Txheem:
Muaj zog acid nruab nrab tswj (xws li 316L valve lub cev + lub zog kaw), siab tsis kam 25mpa;
Zog thiab FAIS:
Supercritical Dos xa hluav taws xob txoj cai (ob chav stlex valve lub cev), qhov kub tsis kam 5, degree / siab / siab;
Aerospace:
Cov kua dej ua kua / cov kua zaub oxygen xa tawm, tsawg kub tiv taus -196 degree.
Xaiv thiab txij nkawm cov ntsiab lus
Xaiv lub hauv paus:
Media Matching: 316L yog nyiam rau chloride ion ib puag ncig, thiab monel alloy yog siv rau cov kua roj fydrofloflicic;
Kev yoog raws: ultra-siab siab (loj dua los yog sib npaug rau 100Mpa) yuav tsum muaj kev sib xyaw ua ke valve lub cev.
Txhim Kho thiab Txij Nkawm:
Flange Bolts yuav tsum tau ua kom nruj cov kab ntsig, nrog lub zog ua ntej loj dua lossis sib npaug rau yav xyoo los tiv thaiv kev deformation;
Nquag xyuas cov kev hnav ntawm cov chaw sib khi, thiab nws raug nquahu kom ua qhov kev sim ua kom lub zog
