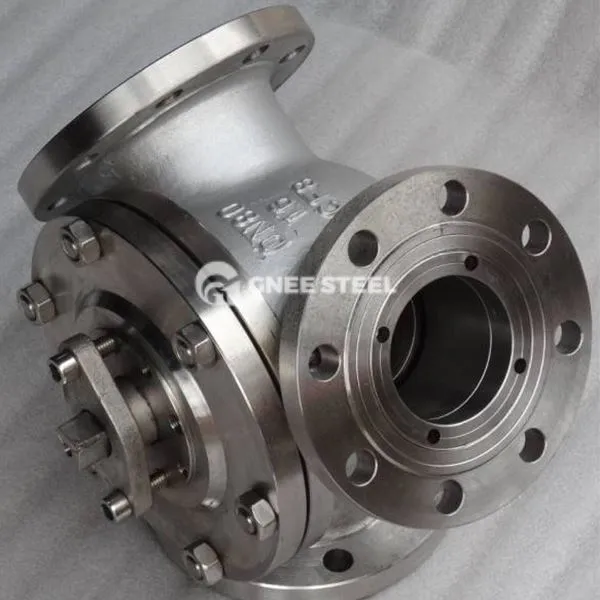

Flanged3- txoj kevPob Li Qub Piav Qhia
Flange peb-txoj kev pob valve yog ib lub valve uas paub nruab nrab kev ua si, kev sib cav los yog ntws mus hloov mus rau peb txoj kev pipeline tsim. Nws cov qauv tseem ceeb muaj ntawm peb-daim valve lub cev (sab laug valve lub cev (sab xis npog, nruab nrab lub cev lub cev) thiab hom T-hom / l-hom / l-hom pob. Nws txuas nrog cov raj xa dej los ntawm flange, thiab lub pob rotates 90 degree los tswj cov kev taw qhia ntawm nruab nrab. Cov tseem ceeb muaj xws li:
Peb-Txoj Kev Flow Channel: Txhawb T-Hom Kev Ua Si (peb-hom kev hloov pauv) lossis L-hom (txoj cai-lub cev thim rov qab) cov qauv kev hloov pauv) cov qauv, haum rau kev ua kom haum pipeline;
Modular Valve lub cev: peb-thooj flange kev sib txuas kev tsim qauv, yooj yim disassemble thiab tswj thiab hloov ntsaws ruaj ruaj;
Fert Daim Ntawv: Cov ntaub ntawv mos (PTFE, roj hmab) lossis lub cev tawv (nyuaj
Ua haujlwm ua haujlwm thiab kev ua tau zoo zoo
Ua haujlwm ua haujlwm:
T-T-li cov channel yog raws li peb-txoj kev nres nkoj kom ua tiav cov kev ua yeeb yam nruab nrab lossis xws li tshuaj ntsuab reactor); L-hom Tee: Lub pob tig tau 90 degree kom hloov cov inlet thiab qhov hluav taws xob cov lus qhia, xws li ob-txoj kev yaug ntawm kev tu pipelines). Qhov Zoo:
Tsis tshua pom kev kev tawm tsam: Cov qauv tsim tag nrho-txoj kab ua kom tsis haum coefficielity yog ze rau ntawm cov yeeb nkab ncaj, txo cov system siab poob; Multi-Flow Control: Ib lub valve valve tuaj yeem ua tiav kev hloov pauv, sib zog lossis thim rov qab, piv rau cov pipeline layout; Cov lus teb ceev: Phau ntawv tsav tsheb txhawb nqa tsawg dua los yog sib npaug ntawm 1 qhib kev ua haujlwm thib ob thiab kev ua haujlwm siab.
Flanged3- txoj kevPob Yog Li Qub Cov Lus Qhia
|
Yam |
3 Txoj Kev Flange Pob Valve |
|||
|
Khoom |
Stainless hlau |
|||
|
Khoom siv sealing |
Ptfe |
|||
|
Chaw nres nkoj loj |
1/2 "~ 2", DN15 ~ DN50 |
|||
|
Nyem |
1.6 ~ 6.4MPA |
|||
|
Chaw nres nkoj xov |
NPP, BSPP, BSP |
|||
|
Xaus Kev Txuas |
NPT, BSP, g |
|||
|
Lub tsev |
Kaw pob valve |
|||
|
Ntaus |
T chaw nres nkoj ss 316 3 txoj kev flange pob valve |
|||
|
Tus naj npawb ntawm txoj kev |
3pcs 2 |
|||
|
Daim ntawv thov |
Khoom Noj Khoom Haus & Dej Haus, Dej, Ultra ntshiab dej, Tshuaj lom neeg, Pulp, Pulp & ntawv, Boiler thiab Fais Fab |
|||
Flanged3- txoj kevPob Li Qub
Xaiv cov lus qhia:
Flow Cov Kev Xav Tau: T-hom yog haum rau kev ua kom txaus / sib koom ua ke, thiab L-hom yog mob siab rau kev cob qhia hloov;
Cov yam ntxwv nruab nrab: Txog cov kua muaj cov khoom siv, xaiv cov ntsaws ruaj ruaj lossis lub zog tungsten carbide coated pob;
Flange Cov Qauv: Match Pipeline Flange Spirarifications (xws li HG / T20592, ASME B16.5).
Cov ntsiab lus tshwj xeeb:
Flange Bolts yuav tsum tau ua kom nruj cov kab pheeb ces kaum symonalically kom tiv thaiv kom tsis txhob muaj kev tiv thaiv lub cev;
Reserve valve kev siv lub qhov chaw (ntau dua los yog sib npaug rau 90 degree) kom tsis txhob cuam tshuam nrog cov khoom siv ib puag ncig.
