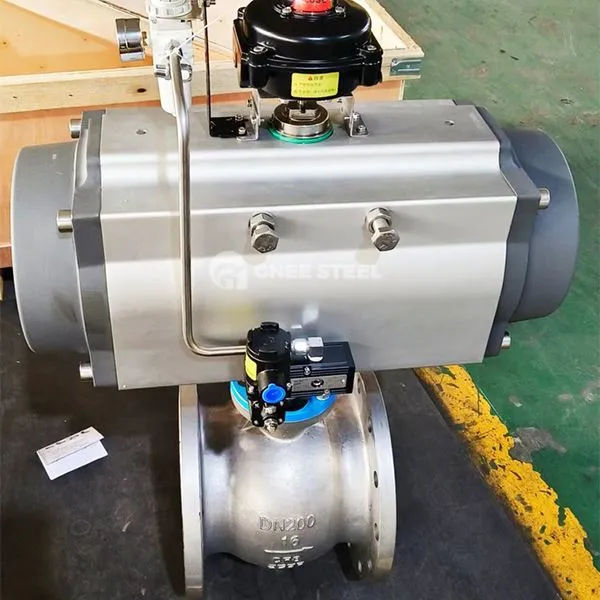

‌Ob Chav Eccentric V - Port Port Port ValveYog aHlau - sheeding kev lag luam pipeline tswj valveFeem ntau siv nyob rau hauv kev lag luam xws liHlau, txhuas, thiab lub zog tiamCov. Nws yog tsim rauQhov kev pabcuam hnyav, Suav nrogroj, roj, thiab xov xwm muaj cov khoom seem, Nrog Cov Qauv Txheej Txheem Qhia TxogDN40 RAU DN1600‌.

Nta

‌1. Sealing khub (valve tub ntxhais & rooj zaum)- dual - hlau kev ua tiavHard Hlau Spherical Ntiv Nplhaib Sealing, Kom ntseeg tauFireproof thiab tawg - pov thawjKev ua tau zoo.

‌2. Thawb cov tshuab sib khi- tuscov spherical Line tiv taujNruab nrab ntawm lub valve core thiab rooj zaum, ua ke nrog3D Eccentricity, Tau ua tiavxoom so‌.

‌3. Hnav Nyiaj Them Nyiaj- txoj hlua khi khi suav nrog aNyiaj Them NyiajCov. Thaum hnav tau tshwm sim sijhawm, tsuas yog daws covtxwv ntsia liaj qhov rooj ntawm cov tes, Kaw lub pob valve me ntsis ntxiv, thiab tswj kev sib fwm txhim kho, lub neej pabcuam kev pabcuam ntxiv.

‌4. Hloov chaw- tusLub cev yuagYuav raug tshem tawm kom kho tau los yog hloov lub rooj zaum, tso cai txuas ntxiv siv ntawm lub valve. Qhov no zam qhov teeb meem ntawmtag nrho cov hluav taws xob hloovVim tias sib foob tsis ua haujlwm.

Cov Khoom Siv

Qhov loj loj:DN25 ~ 900mm NPS1 "~ 36"

Siab:Pn1.0 ~ 25mpa class150 ~ 1500

Cov Ntaub Ntawv Lub Cev:CF8, CF8M, CF3, CF3M, 890 4 A, Alloy Steel

Kev ua haujlwm:Los ntawm txhais tes, hydraulic, Fais, pneumatic, hluav taws xob {{}} hydraulic, thiab lwm yam.

Txheem: Ansi, API, Din, EAC, JIS, TE, ISO, en, GB

Double Eccentric V-type Ball Valve Structure diagram

Siab hniav TS	Qhov dav	Qhov ntev (hli)
	Dn	Nps	L		D	D1	D2	n-d	b	f
	Dn	Nps	Flange	Bw	D	D1	D2	n-d	b	f
Hoob 900 PN150	50	2	368	368	216	165.1	92	8-Φ26	38.5	7
	65	2.5	419	419	244	190.5	105	8-Φ29	41.5	7
	80	3	381	381	241	190.5	127	8-Φ26	38.5	7
	100	4	457	457	292	234.9	157	8-Φ32	44.5	7
	125	5	559	559	349	279.4	186	8-Φ35	51	7
	150	6	610	610	381	317.5	216	12-Φ32	56	7
	200	8	737	737	470	393.7	270	12-Φ39	63.5	7
	250	10	838	838	545	469.9	324	16-Φ39	70	7
	300	12	965	965	610	533.4	381	20-Φ39	79.5	7
	350	14	1029	1029	640	558.8	413	20-Φ42	86	7
	400	16	1130	1130	705	615.9	470	20-Φ45	89	7
	450	18	1219	1219	785	686	533	20-Φ51	102	7
	500	20	1321	1321	855	749.5	584	20-Φ55	108	7
	600	24	1549	1549	1040	901.5	692	20-Φ68	140	7
Siab hniav TS	Qhov dav	Qhov ntev (hli)
	Dn	Nps	L		D	D1	D2	n-d	b	f
	Dn	Nps	Flange	Bw	D	D1	D2	n-d	b	f
Hoob 1500 PN260	25	1	254	254	150	101.6	51	4-Φ26	28.5	7
	40	1.5	305	305	180	123.6	73	4-Φ29	32	7
	50	2	368	368	215	165.1	92	8-Φ26	38.5	7
	65	2.5	419	419	245	190.5	105	8-Φ29	41.5	7
	80	3	470	470	265	203.2	127	8-Φ32	48	7
	100	4	546	546	310	241.3	157	8-Φ35	54	7
	125	5	673	673	375	292.1	186	8-Φ42	73.5	7
	150	6	705	705	394	317.5	216	12-Φ39	83	7
	200	8	832	832	483	393.7	270	12-Φ45	92	7
	250	10	991	991	585	482.6	324	12-Φ51	108	7
	300	12	1130	1130	675	571.5	381	16-Φ54	124	7
	350	14	1257	1257	750	635	413	16-Φ60	133.5	7
	400	16	1384	1384	825	705	470	16-Φ68	146.5	7
	450	18	1537	1537	915	774.5	533.5	16-Φ74	162	7
	500	20	1664	1664	985	832	584.5	16-Φ80	178	7
